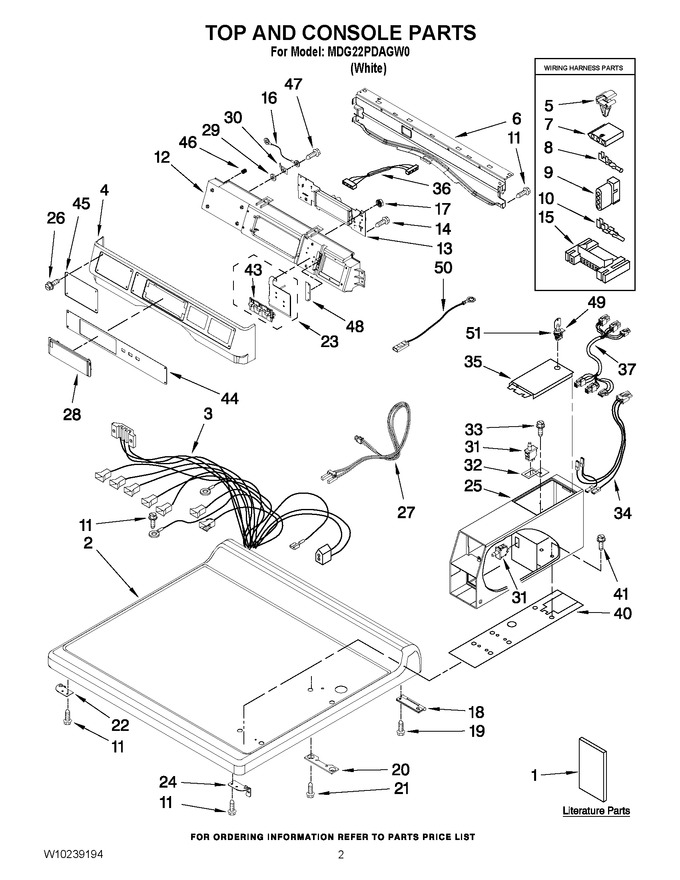

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10096909 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239194 | Parts List |
|
- | |||||
| 1 | W10233252 | User Instruction |
|
- | |||||
| 1 | W10239207 | Installation Instruction |
|
- | |||||
| 1 | W10239197 | Tech Sheet |
|
- | |||||
| 2 | WPW10137411 | Top (Replaces: W10137411) |
|
$ 410.00 | |||||
| 3 | W10111046 | Harness, Main |
|
- | |||||
| 4 | W10779120 | Console (outer) (Replaces: W10137459) |
|
$ 138.64 | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10080700) |
|
Immediately | $ 8.38 | ||||
| 12 | W11790400 | Console (inner) (Replaces: W10137427) |
|
- | |||||
| 13 | WPW10166343 | User-interface Assembly (Replaces: W10166343) |
|
$ 389.22 | |||||
| 14 | 489136 | Screw, 3-24 X 1/32 |
|
$ 10.80 | |||||
| 15 | 3395683 | Connector, (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | W10188087 | Ground Wire Assembly |
|
- | |||||
| 17 | WPW10139046 | Nut, 6-32 (Replaces: W10139046) |
|
$ 9.23 | |||||
| 18 | WP8565018 | Hinge & Pin Assembly (Replaces: 8565018) |
|
$ 115.34 | |||||
| 19 | W10080310 | Screw, 8-18 X 1/2 |
|
- | |||||
| 20 | 3347825 | Plate, Mounting |
|
- | |||||
| 21 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 22 | W10137445 | Bracket, Top Panel (left) |
|
- | |||||
| 23 | WPW10135255 | Assembly, Membrane Switch & Backer Plate (Replaces: W10135255) |
|
$ 219.41 | |||||
| 24 | W10137444 | Bracket, Top Panel (right) |
|
- | |||||
| 25 | WPW10171128 | Meter Case (Replaces: W10171128) |
|
$ 359.38 | |||||
| 26 | WPW10137457 | Screw, 8-32 X 3/64 (Replaces: W10137457) |
|
$ 7.85 | |||||
| 27 | WPW10247389 | Coin-optic Sensor Assembly (Replaces: W10247389) |
|
Immediately | $ 121.70 | ||||
| 28 | WPW10131114 | Display Cover (Replaces: W10131114) |
|
$ 49.92 | |||||
| 29 | W10189075 | Washer, Brass |
|
$ 19.13 | |||||
| 30 | 3373818 | Tab-grounding |
|
- | |||||
| 31 | WPW10131838 | Switch-vault Service Door (Replaces: W10131838) |
|
$ 25.11 | |||||
| 32 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- | |||||
| 33 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: W10139210) |
|
$ 8.03 | |||||
| 34 | W11096090 | Harness, Service Switch (Replaces: W10211244) |
|
$ 13.40 | |||||
| 35 | W11283272 | Service Door Assembly (Replaces: 3351136) |
|
$ 111.17 | |||||
| 36 | W10166307 | Harness, Communication |
|
$ 41.32 | |||||
| 37 | W10166308 | Harness, Meter Case |
|
- | |||||
| 40 | W10137448 | Cushion, Meter Case |
|
- | |||||
| 41 | W10223799 | Bolt, Meter Case Mounting (5/16-24 X 1.00) |
|
- | |||||
| 41 | W10223792 | Bolt, Meter Case Mounting (5/16-18 X 2 1/2) |
|
- | |||||
| 43 | WPW10424308 | Push Button (Replaces: W10131113) |
|
Immediately | $ 21.44 | ||||
| 44 | W10135194 | Fascia-console |
|
- | |||||
| 45 | W10137461 | Fascia-dispenser |
|
- | |||||
| 46 | WPW10189313 | Insert (8) (Replaces: W10189313) |
|
$ 9.23 | |||||
| 47 | WP488234 | Screw, 8-32 X 1/4 (Replaces: 488234) |
|
$ 7.08 | |||||
| 48 | W10187276 | Seal-console |
|
- | |||||
| 49 | W11401086 | Cam, Commercial Lock (Replaces: W10156125) |
|
$ 6.17 | |||||
| 50 | W10257051 | Jumper, Static |
|
- | |||||
| 51 | W11315637 | Service Door Lock (Replaces: 8316526) |
|
Immediately | $ 40.47 |
