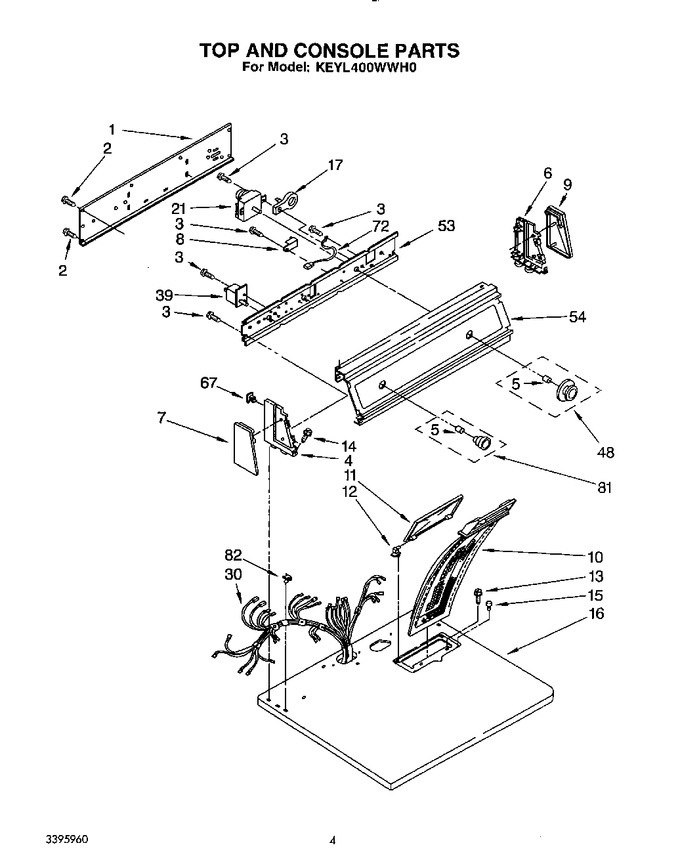

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3388889 | Panel, Rear Console |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP3390631 | Screw (Replaces: 339554) |
|
$ 7.82 | |||||
| 4 | 3354640 | Cap, End (l.h.) |
|
- | |||||
| 5 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 6 | 3354646 | Cap, End (r.h.) |
|
- | |||||
| 7 | 3353685 | Trim, Endcap (l.h.) |
|
- | |||||
| 8 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 9 | 3353678 | Trim, Endcap (r.h.) |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 337448) |
|
Immediately | $ 41.91 | ||||
| 11 | 691205 | Cover, Lint Screen |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 691194) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 691193) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP388326 | Screw, 8-18 X 1 (Replaces: 64211) |
|
$ 8.11 | |||||
| 15 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 16 | 3393374 | Top (white) |
|
- | |||||
| 16 | 3393375 | Top (almond) |
|
- | |||||
| 17 | 279872 | Resistor (Replaces: 3388706) |
|
$ 74.94 | |||||
| 21 | 3394762 | Timer Assembly, 60 Hz. |
|
$ 171.23 | |||||
| 30 | 3395990 | Harness, Wiring |
|
- | |||||
| 39 | 348314 | Switch, Push To Start |
|
- | |||||
| 48 | 3389725 | Timer Knob Assembly |
|
- | |||||
| 53 | 3396009 | Bracket, Control |
|
- | |||||
| 54 | 3395980 | Panel, Control |
|
- | |||||
| 67 | 689559 | Clip, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Console Ground |
|
- | |||||
| 81 | 3390054 | Knob, Push To Start |
|
- | |||||
| 82 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| LIT3389704 | Instructions, Installation |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| LIT3387320 | Guide, Dryer |
|
- | ||||||
| LIT3392982 | Guide, Use & Care |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 978883 | Almond |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| LIT3395960 | List, Parts Service |
|
- |
