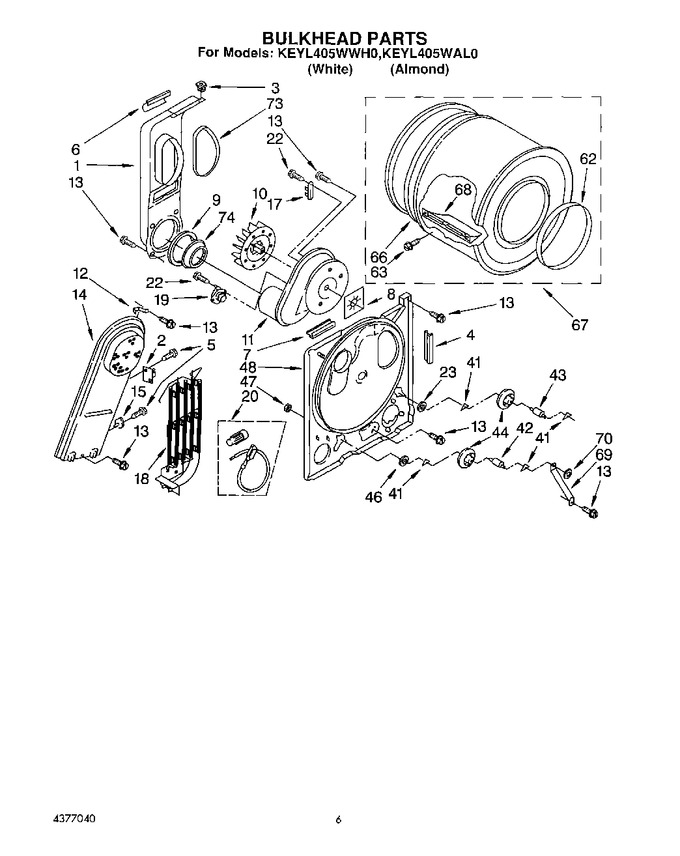

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute, Assembly (Replaces: 694283) |
|
$ 302.61 | |||||
| 2 | 279769 | Thermal, Cut-off (hi-limit Thermostat Illus. No.15 Included) (Replaces: 3389946) |
|
Immediately | $ 62.85 | ||||
| 3 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 4 | 686889 | Pad, Cabinet |
|
- | |||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | 686770 | Support Protector |
|
- | |||||
| 7 | 686889 | Pad, Blower Housing (Replaces: 3392247) |
|
- | |||||
| 8 | 3392123 | Seal, Blower Shaft |
|
- | |||||
| 9 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip, Heater Box To Bulkhead (Replaces: 337272) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 14 | 695547 | Box, Heater |
|
- | |||||
| 15 | LS2-225 | Thermostat, 225~f (121.1~c) (Replaces: 347296) |
|
Immediately | $ 13.53 | ||||
| 17 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 18 | WP697663 | Element, Heater (for 240 Volt Installation) (Replaces: 697663) |
|
$ 291.36 | |||||
| 19 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 20 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 22 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 10.72 | ||||
| 23 | WP3388703 | Washer (Replaces: 3388703) |
|
$ 7.47 | |||||
| 41 | WPW10512946 | Ring, Tri (4) (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | WPW10314173 | Roller, Support (Replaces: 3396802) |
|
Immediately | $ 28.50 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 48 | 685775 | Bulkhead |
|
- | |||||
| 62 | WP3394509 | Ring, Bearing (Replaces: 3394509) |
|
$ 125.38 | |||||
| 63 | WPW10109200 | Screw, 11-16 X 7/8 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 337449) |
|
Immediately | $ 62.78 | ||||
| 67 | 697760 | Drum (Replaces: 697093) |
|
$ 414.42 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 146.98 | |||||
| 69 | 348945 | Bracket, Support |
|
- | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 73 | WP339956 | Seal, Lint Chute To Bulkhead (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 74 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 |
