Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP297092 Clip, Hinge   (Replaces: 297092) In-Stock Immediately $ 8.24

2 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.85

4 279318 Terminal, Tinned & Brass (3) (includes Illus. 40) In-Stock Immediately $ 100.99

5 W11539855 Cover, Terminal Block   (Replaces: 3396795) In-Stock Immediately $ 599.76

6 WP694091 Screw   (Replaces: 694091) Special Order $ 7.19

7 3396807 Panel, Rear Appelez-nous -
8 WP691581 Lever, Door Switch   (Replaces: 691581) In-Stock Immediately $ 8.09

9 18849 Pad, Top Hinge Special Order $ 20.14

10 W10820036 Switch, Door   (Replaces: 347207) In-Stock Immediately $ 30.50

11 WP98129 Screw, 6-20 X 7/8   (Replaces: 98129) Special Order $ 7.56

12 98669 Locator, Top Special Order $ 12.03

13 WP3388229 Clip, Toe Panel   (Replaces: 3388229) In-Stock Immediately $ 8.45

14 237979 Spring, Door Appelez-nous -
15 342043 Screw Appelez-nous -
16 49621 Foot, Dryer   (Replaces: 3392100) In-Stock Immediately $ 8.55

16 49621 Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810) In-Stock Immediately $ 8.55

17 WP693995 Screw, Hex Washer Head   (Replaces: 693995) In-Stock Immediately $ 7.19

18 3399580 Cabinet (includes Illus. No.`s 5,7,16,41, & 57) (white) Appelez-nous -
18 3399581 Cabinet (includes Illus. No.`s 5,7,16,41, & 57) (almond) Appelez-nous -
19 WP98234 Clip, Ground (2)   (Replaces: 98234) In-Stock Immediately $ 11.39

20 WP18776 Lock, Front Top (2)   (Replaces: 18776) In-Stock Immediately $ 12.68

21 689533 Front Panel Assembly (almond) Appelez-nous -
21 338012 Front Panel Assembly (white) Appelez-nous -
22 697096 Panel, Toe (almond) Appelez-nous -
22 697095 Panel, Toe (white) Appelez-nous -
23 279220 Clip, Felt Pad (2)   (Replaces: 685203) Special Order $ 20.65

24 279570 Catch, Door   (Replaces: 690081) In-Stock Immediately $ 8.89

25 WP308685 Screw, Terminal Block To Cabinet   (Replaces: 3393008) In-Stock Immediately $ 7.87

28 687905 Hinge, Door (r.h.) Appelez-nous -
28 687906 Hinge, Door (l.h.) Appelez-nous -
29 W11252547 Clip, Hinge   (Replaces: 337189) Special Order $ 21.39

33 279570 Strike, Door   (Replaces: 696144) In-Stock Immediately $ 8.89

35 695954 Door, Rear Appelez-nous -
36 348728 Door, Front (white) Appelez-nous -
36 689330 Door, Front (almond) Appelez-nous -
37 WP348721 Handle, Door (white)   (Replaces: 3390781) Special Order $ 77.89

37 3390782 Handle, Door (almond) Appelez-nous -
38 279264 Seal & Bearing Assembly   (Replaces: 349464) In-Stock Immediately $ 74.52

39 WP308685 Screw,10-16 X 1/2   (Replaces: 3357011) In-Stock Immediately $ 7.87

40 279393 Terminal Screw Kit For Terminal Block In-Stock Immediately $ 47.37

41 279320 Block, Terminal   (Replaces: 690261) In-Stock Immediately $ 68.25

42 238614 Bumper Special Order $ 80.76

51 WP8066217 Hinge, Top (2)   (Replaces: 238088) Special Order $ 7.82

53 WP691366 Idler & Pulley Assembly   (Replaces: 691366) In-Stock Immediately $ 22.47

56 341241 Belt, Drive   (Replaces: 3399844) In-Stock Immediately $ 18.15

57 WP348780 Base, Motor   (Replaces: 348780) In-Stock Immediately $ 121.57

58 3400500 Bolt, 5/16-18 X 3/4   (Replaces: 172455) In-Stock Immediately $ 13.37

59 WP8066184 Pulley, 60 Hz.   (Replaces: 3401143) In-Stock Immediately $ 51.02

62 279827 Motor Assembly, 60 Hz.   (Replaces: 3395653) In-Stock Immediately $ 191.95

63 WP660658 Clip, Motor (2)   (Replaces: 660658) Special Order $ 7.83

63 WP660658 (alt.)   (Replaces: 343481) Special Order $ 7.83

63 WP660658 (alt.)   (Replaces: 685441) Special Order $ 7.83

67 WP3390733 Seal, Door   (Replaces: 3390733) In-Stock Immediately $ 115.98

87 W10850756 Screw, 10-32 X 1/2 (grounding)   (Replaces: 697776) Special Order $ 7.76


    View Diagram in Separate Window     Print Icon   Print Part List

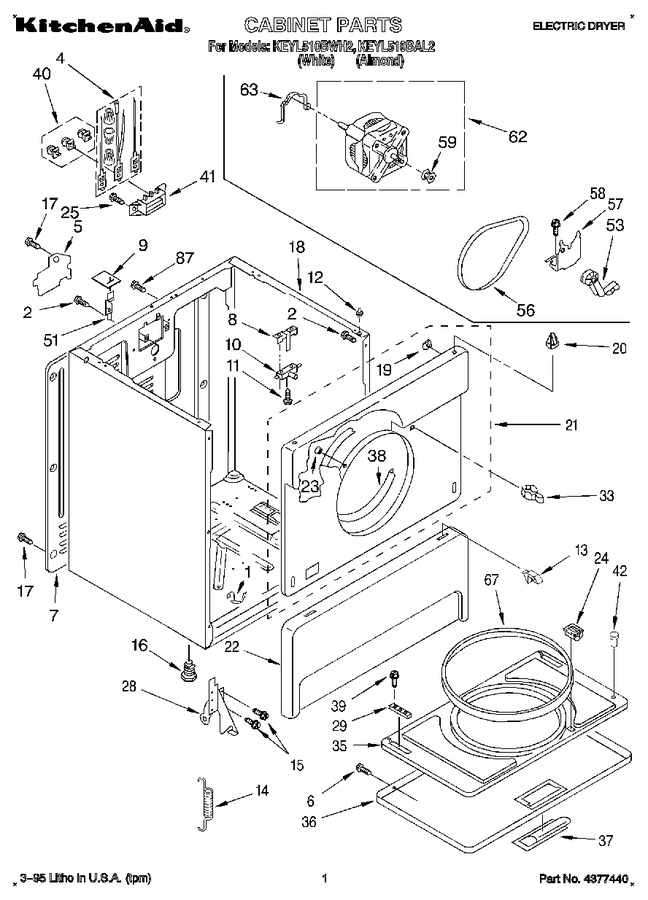

Diagram for KEYL510BAL2
