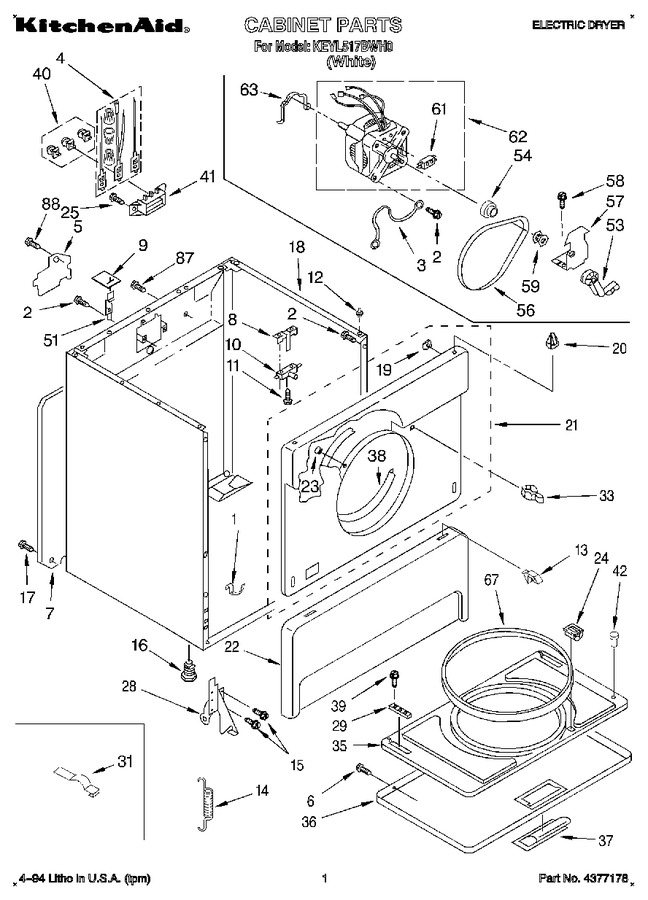

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP297092 | Clip, Hinge (Replaces: 297092) |
|
Immediately | $ 8.95 | ||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 4 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 40) |
|
Immediately | $ 106.04 | ||||
| 5 | W11736322 | Cover, Terminal Block (Replaces: 690893) |
|
- | |||||
| 6 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.55 | |||||
| 7 | 346368 | Panel, Rear |
|
- | |||||
| 8 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 8.49 | ||||
| 9 | 18849 | Pad, Top Hinge |
|
$ 21.15 | |||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 11 | WP98129 | Screw, 6-20 X 7/8 (Replaces: 98129) |
|
$ 8.18 | |||||
| 12 | 98669 | Locator, Top |
|
$ 12.03 | |||||
| 13 | WP3388229 | Clip, Toe Panel (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 14 | 237979 | Spring, Door |
|
- | |||||
| 15 | 342043 | Screw |
|
- | |||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 8.40 | ||||
| 18 | 3394109 | Cabinet (white) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 13.31 | ||||
| 21 | 338012 | Front Panel Assembly (white) |
|
- | |||||
| 22 | 697095 | Panel, Toe (white) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 25 | WP308685 | Screw, Terminal Block To Cabinet (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 28 | 687906 | Hinge, Door (l.h.) |
|
- | |||||
| 28 | 687905 | Hinge, Door (r.h.) |
|
- | |||||
| 29 | W11252547 | Clip, Hinge (Replaces: 337189) |
|
$ 22.46 | |||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.64 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 35 | 695954 | Door, Rear |
|
- | |||||
| 36 | 348728 | Door, Front (white) |
|
- | |||||
| 37 | WP348721 | Handle, Door (white) (Replaces: 3390781) |
|
$ 81.78 | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349464) |
|
Immediately | $ 74.52 | ||||
| 39 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 40 | 279393 | Terminal Screw Kit For Terminal Block |
|
Immediately | $ 55.66 | ||||
| 41 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 68.25 | ||||
| 42 | 238614 | Bumper |
|
$ 84.79 | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 54 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 3399844) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 14.04 | ||||
| 59 | WP8066184 | Pulley 60 Hz (Replaces: 3389627) |
|
Immediately | $ 51.02 | ||||
| 61 | 279827 | Switch (use W/3391886 Motor) (Replaces: 3388235) |
|
Immediately | $ 191.95 | ||||
| 62 | 279827 | Motor Assembly (60 Hz.) (Replaces: 3391886) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 8.22 | |||||
| 63 | WP660658 | Clip, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 63 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 8.22 | |||||
| 67 | WP3390733 | Seal, Door (Replaces: 3390733) |
|
Immediately | $ 121.78 | ||||
| 87 | W10850756 | Screw, 10-32 X 1/2 (grounding) (Replaces: 697776) |
|
$ 8.20 | |||||
| 88 | WP693995 | Screw, 10-16 X 1/2 (Replaces: 693995) |
|
Immediately | $ 7.55 |
