SELECT A DIAGRAM

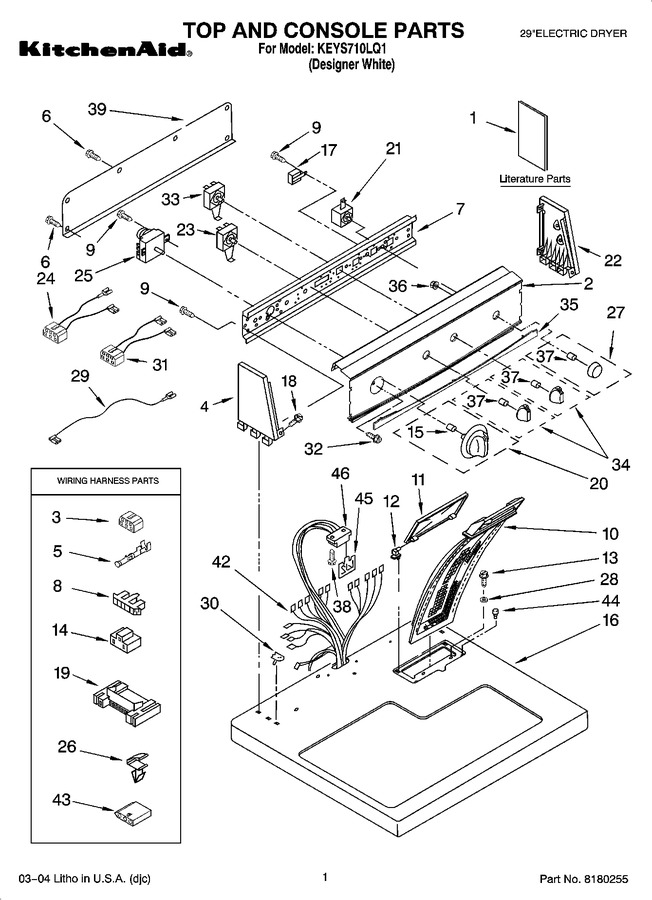

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8535887		Literature Parts (use & Care Guide)		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	LIT3406699		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8535888		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8535890		Literature Parts (sheet, Cycle Feature)		Appelez-nous	-
2	3977975		Panel, Control (includes Illus. 35 & 36)		Appelez-nous	-
3	3347243		Connector 6-circuit		Appelez-nous	-
4	8274353		End Cap (l.h.)		Appelez-nous	-
5	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
6	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
7	8271418		Bracket, Control				$ 57.15
8	3397269		Connector, Timer				$ 25.55
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3401144		Connector (relay/buzzer)				$ 12.81
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
16	8274386		Top		Appelez-nous	-
17	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
18	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
19	3395683		Housing Connector			Immediately	$ 54.45
20	3956185		Knob, Timer				$ 35.24
21	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
22	8274349		Cap End (r.h.)		Appelez-nous	-
23	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
24	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-
25	WP3976570		Timer, 60 Hz.   (Replaces: 3976570)				$ 386.58
26	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
27	8536921		Knob, Push-to-start				$ 7.64
28	237446		Washer		Appelez-nous	-
29	3401671		Jumper, Wire (white)		Appelez-nous	-
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 19.78
32	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.88
33	3399638		Switch, Signal				$ 136.24
34	3956182		Knob, Control (2)				$ 7.41
35	8536944		Spacer, Console		Appelez-nous	-
36	8533828		Nut, 3/16		Appelez-nous	-
37	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
38	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
39	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
42	8299880		Harness, Electric		Appelez-nous	-
43	3936144		Connector				$ 21.22
44	297535		Bumper, Lint Lid		Appelez-nous	-
45	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
46	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
46	3406839		Dry Rack			Immediately	$ 65.68
46	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
46	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
46	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
46	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
46	3391885		Connector, Edge				$ 90.72
46	N/A		Accessory Parts		Appelez-nous	-
46	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85

    View Diagram in Separate Window       Print Part List
