SELECT A DIAGRAM

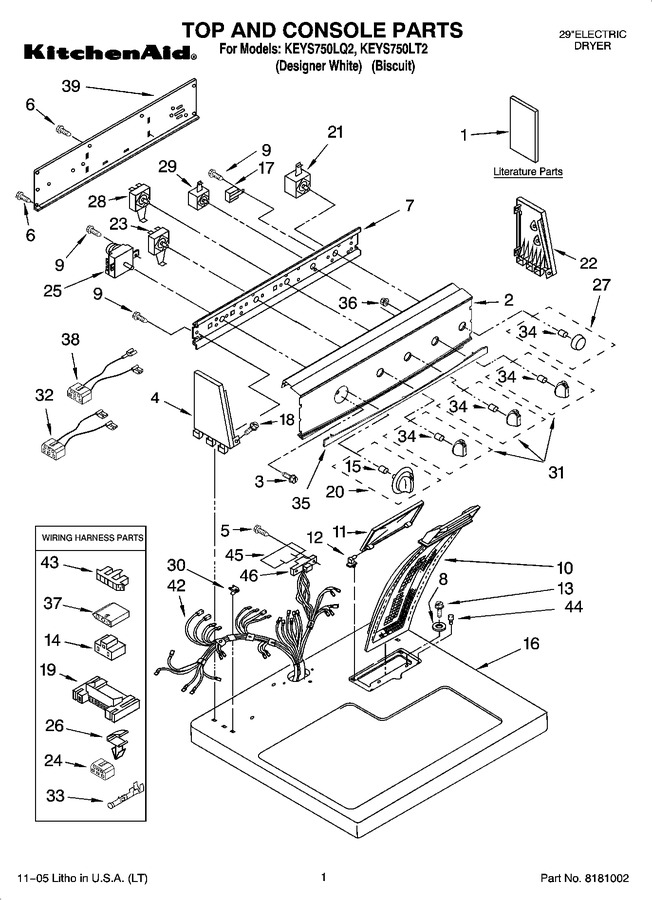

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8577189		Installation Instructions		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8535890		Sheet, Cycle Feature		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	8578194		Use & Care Guide		Appelez-nous	-
1	3406699		Wiring Diagram		Appelez-nous	-
2	3977977		Panel, Control (includes Illus. 35 & 36) (biscuit)		Appelez-nous	-
2	3977976		Panel, Control (includes Illus. 35 & 36) (white)		Appelez-nous	-
3	3400859		Screw, Grounding (8-18 X 7/32)   (Replaces: 8533951)				$ 13.22
4	8274355		End Cap (l.h.) (biscuit)		Appelez-nous	-
4	8274353		End Cap (l.h.) (white)		Appelez-nous	-
5	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 79.72
6	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
7	8271418		Bracket, Control				$ 57.15
8	237446		Washer		Appelez-nous	-
9	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen (white)				$ 44.80
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3401144		Connector (relay/buzzer)				$ 12.20
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
16	8274387		Top (biscuit)		Appelez-nous	-
16	8274386		Top (white)		Appelez-nous	-
17	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
18	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
19	3395683		Housing Connector			Immediately	$ 51.86
20	3956185		Knob, Timer (white)				$ 35.24
20	3956186		Knob, Timer (biscuit)		Appelez-nous	-
21	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
22	8274349		Cap End (r.h.) (white)		Appelez-nous	-
22	8274351		Cap End (r.h.) (biscuit)		Appelez-nous	-
23	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
24	3347243		Connector 6-circuit		Appelez-nous	-
25	WP3976570		Timer, 60 Hz.   (Replaces: 3976570)				$ 368.17
26	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
27	8536921		Knob, Push To Start (white)				$ 7.64
27	8536922		Knob, Push To Start (biscuit)		Appelez-nous	-
28	WP3405156		Switch, Finish Gaurd   (Replaces: 3405156)				$ 145.51
29	3399638		Switch, Signal				$ 129.75
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3956182		Knob, Control (3) (white)				$ 7.41
31	3956183		Knob, Control (3) (biscuit)		Appelez-nous	-
32	8539893		Wire, Jumper   (Replaces: 8283289)				$ 18.84
33	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
34	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
35	8536944		Spacer, Console (white)		Appelez-nous	-
35	8536945		Spacer, Console (biscuit)		Appelez-nous	-
36	8533828		Nut, 3/16		Appelez-nous	-
37	3936144		Connector				$ 20.21
38	8283276		Wire, Jumper (white/yellow)		Appelez-nous	-
38	3401695		Wire, Jumper (tan/black)		Appelez-nous	-
39	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
42	8299880		Harness, Electric		Appelez-nous	-
43	3397269		Connector, Timer				$ 25.55
44	297535		Bumper, Lint Lid		Appelez-nous	-
45	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 314.22
46	3391885		Connector, Edge				$ 86.40
