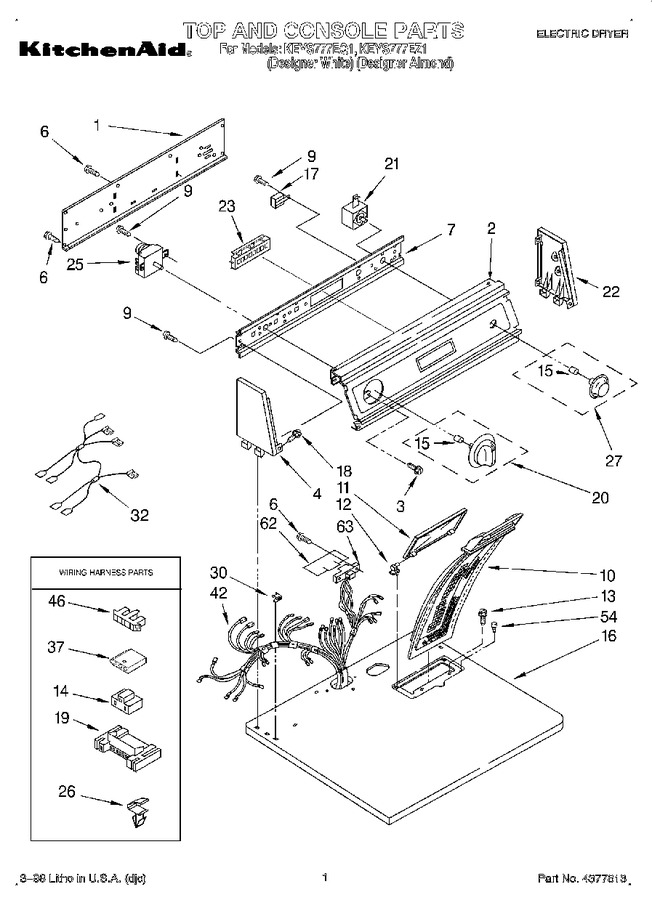

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3394170		Panel, Rear Console		Appelez-nous	-
2	3405669		Panel, Control (almond)		Appelez-nous	-
2	3405668		Panel, Control (white)		Appelez-nous	-
3	3400859		Screw, Grounding				$ 13.88
4	3360570		End Cap (l.h.) (white)		Appelez-nous	-
4	3360572		End Cap (l.h.) (almond)		Appelez-nous	-
6	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
7	8054300		Bracket, Control		Appelez-nous	-
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	691201		Cover, Lint Screen (almond)		Appelez-nous	-
11	691200		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 691193)				$ 8.11
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 691194)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3401144		Connector (relay/buzzer)				$ 12.81
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
16	3406037		Top (almond)		Appelez-nous	-
16	3406036		Top (white)		Appelez-nous	-
17	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
18	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
19	3395683		Housing Connector			Immediately	$ 54.45
20	3405300		Knob, Timer (almond)		Appelez-nous	-
20	3405299		Knob, Timer (white)				$ 24.31
21	WP3398094		Relay, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
22	3360567		Cap End (r.h.) (white)		Appelez-nous	-
22	3360569		Cap End (r.h.) (almond)		Appelez-nous	-
23	3405867		Switch-tap Touch (white)		Appelez-nous	-
23	3405868		Switch-tap Touch (almond)		Appelez-nous	-
25	3976581		Timer, 60hz.				$ 184.19
26	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
27	3405993		Knob, Push To Start (almond)		Appelez-nous	-
27	3405992		Knob, Push To Start (white)		Appelez-nous	-
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
32	3396032		Wire, Jumper (signal Bypass)		Appelez-nous	-
37	3936144		Connector				$ 21.22
42	3406636		Harness, Electric		Appelez-nous	-
46	3397269		Connector, Timer				$ 25.55
54	297535		Bumper, Lint Lid		Appelez-nous	-
62	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
63	3391885		Connector, Edge				$ 90.72
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT3397618		Instructions, Installation		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT3406681		Label, Wiring Diagram		Appelez-nous	-
	LIT3405630		Guide, Use & Care		Appelez-nous	-
