SELECT A DIAGRAM

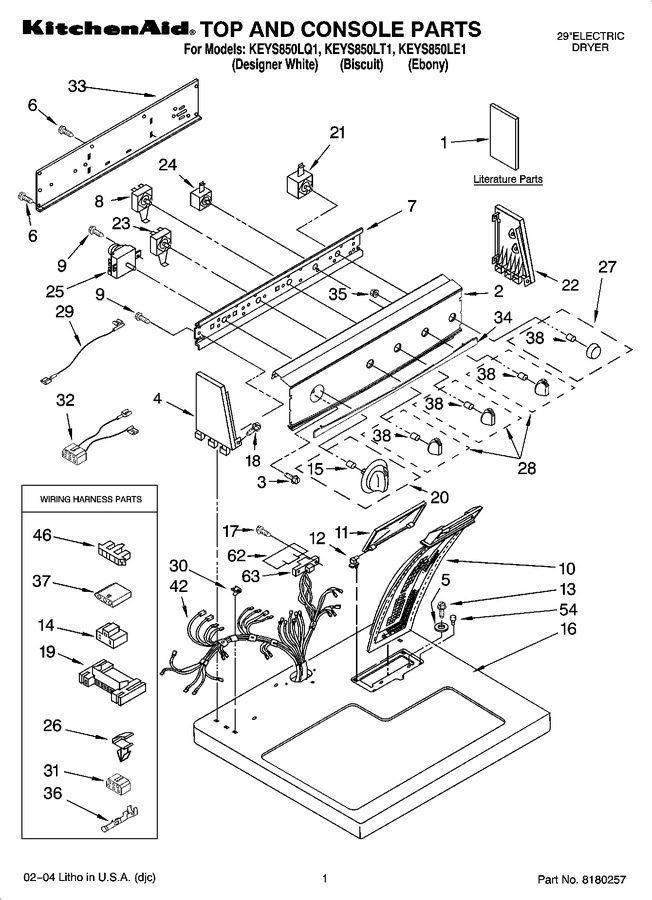

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8535888		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	LIT3406681		Literature Parts (wiring Diagram)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8535890		Literature Parts (sheet, Cycle Feature)		Appelez-nous	-
1	LIT8535887		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	3977979		Panel, Control (includes Illus. 34 & 35) (biscuit)		Appelez-nous	-
2	3977978		Panel, Control (includes Illus. 34 & 35) (white)		Appelez-nous	-
2	3977980		Panel, Control (includes Illus. 34 & 35) (black)		Appelez-nous	-
3	3400859		Screw, Grounding				$ 13.22
4	8274353		End Cap (l.h.) (white)		Appelez-nous	-
4	3954772		End Cap (l.h.) (black)		Appelez-nous	-
4	8274355		End Cap (l.h.) (biscuit)		Appelez-nous	-
5	237446		Washer		Appelez-nous	-
6	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
7	8271418		Bracket, Control				$ 57.15
8	WP3405156		Switch, Finish Gaurd   (Replaces: 3405156)				$ 145.51
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
11	3979324		Cover, Lint Screen (black)		Appelez-nous	-
11	8283378		Cover, Lint Screen (white)				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3401144		Connector (relay/buzzer)				$ 12.20
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
16	8274387		Top (biscuit)		Appelez-nous	-
16	8274386		Top (white)		Appelez-nous	-
16	3978787		Top (black)		Appelez-nous	-
17	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 79.72
18	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
19	3395683		Housing Connector			Immediately	$ 51.86
20	3956186		Knob, Timer (biscuit)		Appelez-nous	-
20	3956187		Knob, Timer (black)		Appelez-nous	-
20	3956185		Knob, Timer (white)				$ 35.24
21	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
22	3954771		Cap End (r.h.) (black)		Appelez-nous	-
22	8274351		Cap End (r.h.) (biscuit)		Appelez-nous	-
22	8274349		Cap End (r.h.) (white)		Appelez-nous	-
23	3406246		Switch, Temperature		Appelez-nous	-
24	WP3398093		Switch, Signal   (Replaces: 3398093)				$ 146.35
25	WP3976570		Timer, 60 Hz.   (Replaces: 3976570)				$ 368.17
26	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
27	8536922		Knob, Push To Start (biscuit)		Appelez-nous	-
27	8536923		Knob, Push-to-start (black)		Appelez-nous	-
27	8536921		Knob, Push To Start (white)				$ 7.64
28	3956184		Knob, Control (3) (black)		Appelez-nous	-
28	3956183		Knob, Control (3) (biscuit)		Appelez-nous	-
28	3956182		Knob, Control (3) (white)				$ 7.41
29	3401668		Jumper, Wire		Appelez-nous	-
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3347243		Connector 6-circuit		Appelez-nous	-
32	8283276		Wire, Jumper		Appelez-nous	-
33	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
34	8536946		Spacer, Console (black)		Appelez-nous	-
34	8536944		Spacer, Console (white)		Appelez-nous	-
34	8536945		Spacer, Console (biscuit)		Appelez-nous	-
35	8533828		Nut, 3/16		Appelez-nous	-
36	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
37	3936144		Connector				$ 20.21
38	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
42	8299895		Harness, Electric		Appelez-nous	-
46	3397269		Connector, Timer				$ 25.55
54	297535		Bumper, Lint Lid		Appelez-nous	-
62	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
63	3391885		Connector, Edge				$ 86.40

    View Diagram in Separate Window       Print Part List
