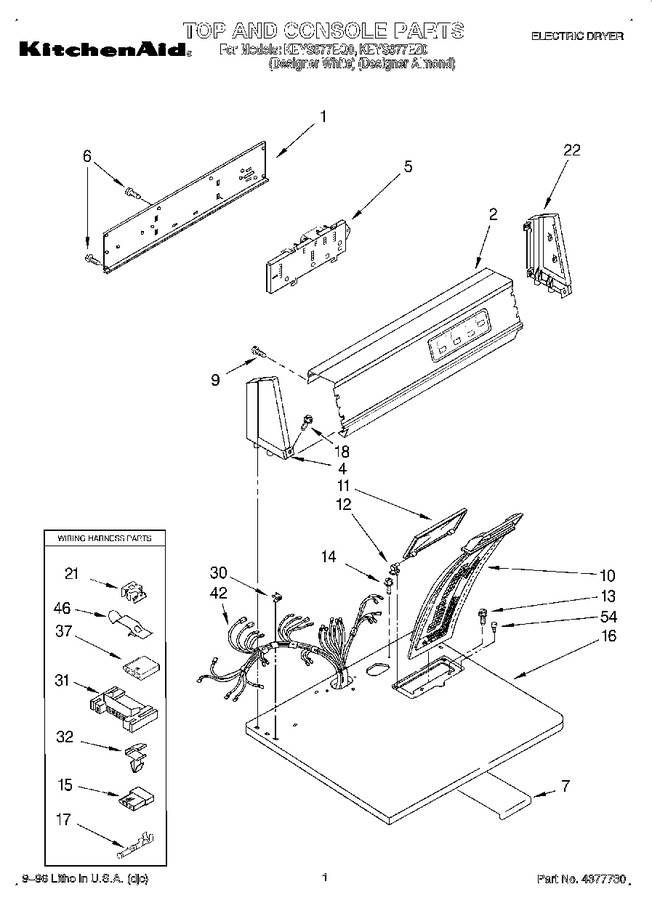

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3394170 | Panel, Rear Console |
|
- | |||||
| 2 | 3404368 | Control Panel & Bracket Assembly (white) |
|
- | |||||
| 2 | 3404369 | Control Panel & Bracket Assembly (almond) |
|
- | |||||
| 4 | 3360572 | End Cap (l.h.) (almond) |
|
- | |||||
| 4 | 3360570 | End Cap (l.h.) (white) |
|
- | |||||
| 5 | 3404374 | Electronic Control Board |
|
- | |||||
| 6 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 7 | 3949207 | Panel, Sound Dampening |
|
- | |||||
| 9 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 691200 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 691201 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044470 | Hinge, Cover (r.h.) (Replaces: 691193) |
|
$ 8.11 | |||||
| 12 | WPW10044480 | Hinge, Cover (l.h.) (Replaces: 691194) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3394926 | Screw, Ground |
|
- | |||||
| 15 | 353424 | Connector, 3-circuit |
|
$ 18.95 | |||||
| 16 | 3406036 | Top (white) |
|
- | |||||
| 16 | 3406037 | Top (almond) |
|
- | |||||
| 17 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 18 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 21 | 3397658 | Clip, Ground |
|
- | |||||
| 22 | 3360569 | Cap End (r.h.) (almond) |
|
- | |||||
| 22 | 3360567 | Cap End (r.h.) (white) |
|
- | |||||
| 30 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 32 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 37 | 353425 | Connector (door Switch) |
|
- | |||||
| 42 | 3405872 | Harness, Electric |
|
- | |||||
| 46 | 357144 | Clip, Harness |
|
- | |||||
| 54 | 297535 | Bumper, Lint Lid |
|
- | |||||
| LIT3397618 | Instructions, Installation |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| LIT3405631 | Guide, Use & Care |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| LIT3401753 | Label, Wiring Diagram |
|
- | ||||||
| LIT3387424 | Tech Sheet |
|
- |
