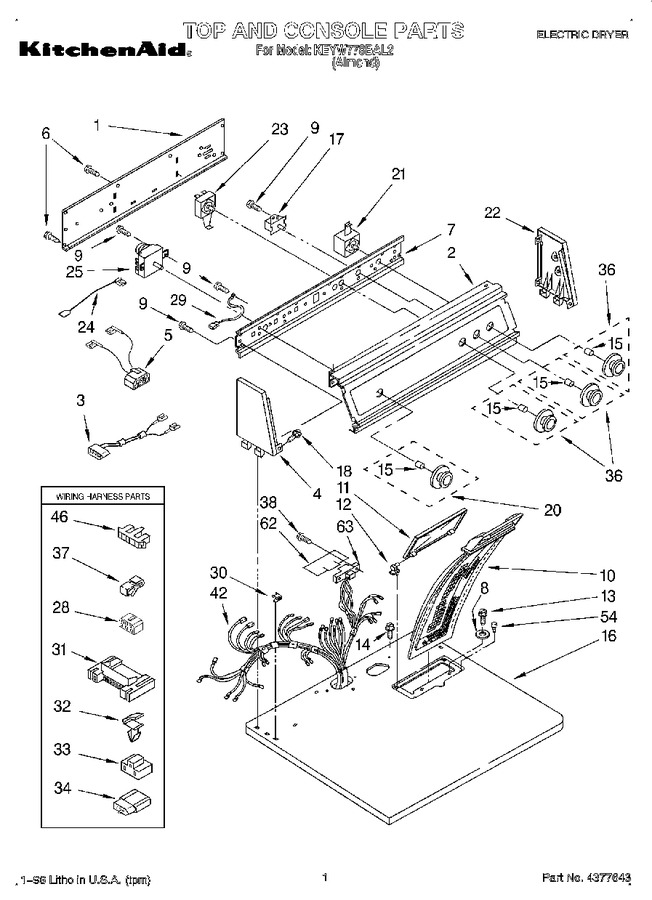

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3394170 | Panel, Rear Console |
|
- | |||||
| 2 | 3362014 | Panel, Control |
|
- | |||||
| 3 | 3401687 | Wire, Jumper (light Switch) |
|
- | |||||
| 4 | 3360572 | End Cap (l.h.) |
|
- | |||||
| 5 | 3396030 | Wire-jumper Assembly |
|
- | |||||
| 6 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 7 | 3396293 | Bracket, Control |
|
- | |||||
| 8 | 237446 | Washer |
|
- | |||||
| 9 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 691201 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044470 | Hinge, Cover (r.h.) (Replaces: 691193) |
|
$ 8.11 | |||||
| 12 | WPW10044480 | Hinge, Cover (l.h.) (Replaces: 691194) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP681414 | Screw, Ground (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 16 | 3399163 | Top (almond) |
|
- | |||||
| 17 | 3394983 | Buzzer, Adjustable |
|
- | |||||
| 18 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 20 | 3396268 | Knob, Timer |
|
- | |||||
| 21 | 3398096 | Relay, Push To Start |
|
$ 50.70 | |||||
| 22 | 3360569 | Cap, End (r.h.) |
|
- | |||||
| 23 | WP3399640 | Switch, Temperature (Replaces: 3399640) |
|
$ 136.25 | |||||
| 24 | 3401668 | Wire, Jumper |
|
- | |||||
| 25 | 3398139 | Timer, 60hz. |
|
- | |||||
| 28 | 3347243 | Connector 6-circuit |
|
- | |||||
| 29 | 690853 | Wire, Ground |
|
- | |||||
| 30 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 32 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 33 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 34 | 353424 | Connector, 3-circuit |
|
$ 18.95 | |||||
| 36 | 3362610 | Knob, Control (3) |
|
- | |||||
| 37 | 689180 | Clip |
|
- | |||||
| 38 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 42 | 3401743 | Harness, Electric |
|
- | |||||
| 46 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 54 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 62 | WPW10476828 | Control, Electronic (Replaces: 3390537) |
|
Immediately | $ 329.93 | ||||
| 63 | 3391885 | Connector, Edge |
|
$ 90.72 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| LIT3389704 | Instructions, Installation |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| LIT3401732 | Label, Wiring Diagram |
|
- | ||||||
| LIT3392992 | Guide, Use & Care |
|
- | ||||||
| LIT3387320 | Guide, Dryer |
|
- |
