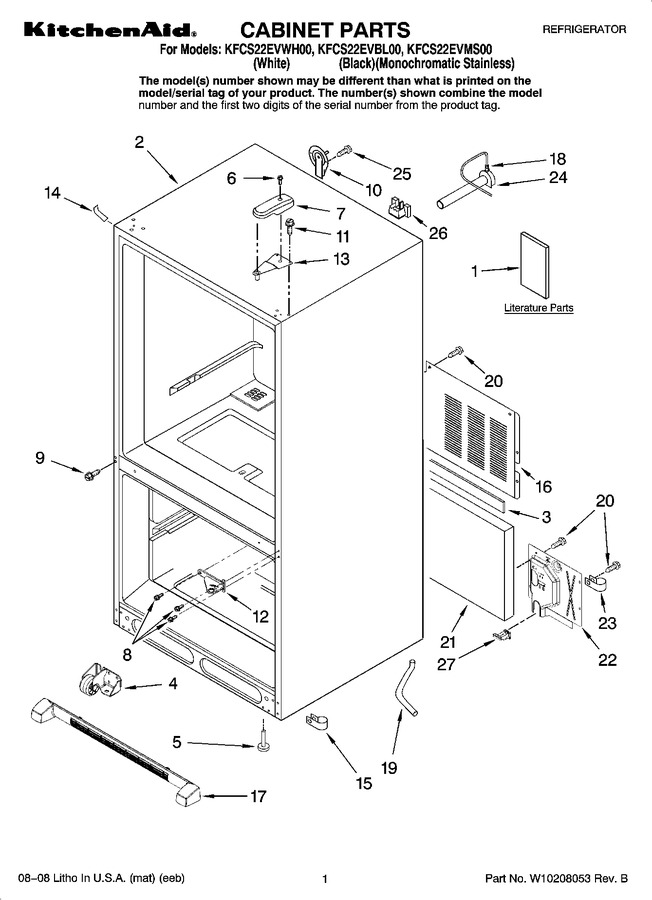

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10210867 | Use & Care Guide |
|
- | |||||
| 1 | W10194233 | Energy Guide |
|
- | |||||
| 1 | W10210870 | Tech Sheet |
|
- | |||||
| 3 | B5759649 | Gasket |
|
- | |||||
| 4 | W11820444 | Roller Assembly (left) (Replaces: W10130460) |
|
Immediately | $ 37.35 | ||||
| 4 | W11820445 | Roller Assembly (right) (Replaces: W10130459) |
|
Immediately | $ 37.35 | ||||
| 5 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 7 | W10892761 | Cover, Hinge (white, Left) (Replaces: W10163248) |
|
$ 18.78 | |||||
| 7 | WPW10120103 | Cover, Hinge (apollo Grey, Right) (Replaces: W10120103) |
|
$ 8.42 | |||||
| 7 | W10892762 | Cover, Hinge (black, Left) (Replaces: W10153130) |
|
$ 19.55 | |||||
| 7 | W10153131 | Cover, Hinge (black, Right) |
|
- | |||||
| 7 | WPW10120102 | Cover, Hinge (apollo Grey, Left) (Replaces: W10120102) |
|
$ 6.84 | |||||
| 7 | W10163247 | Cover, Hinge (white, Right) |
|
$ 15.89 | |||||
| 8 | W11573362 | Screw (Replaces: 67006380) |
|
$ 14.72 | |||||
| 9 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 10 | 12726003 | Cover, Water Line (Replaces: 67003331) |
|
$ 19.19 | |||||
| 11 | WP489349 | Screw (3) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 12 | W11747629 | Hinge, Center (stainless, Left) (Replaces: W10135096) |
|
Immediately | $ 54.42 | ||||
| 12 | W10210883 | Hinge, Center (black, Right) (Replaces: W10119778) |
|
$ 80.75 | |||||
| 12 | W11747629 | Hinge, Center (stainless, Right) (Replaces: W10135097) |
|
Immediately | $ 54.42 | ||||
| 12 | W10162694 | Hinge, Center (white, Left) |
|
$ 46.35 | |||||
| 12 | W10162695 | Hinge, Center (white, Right) |
|
- | |||||
| 12 | W11747629 | Hinge, Center (black, Left) (Replaces: W10119776) |
|
Immediately | $ 54.42 | ||||
| 13 | W10892768 | Hinge, Top (white, Lh) (Replaces: W10120105) |
|
$ 76.49 | |||||
| 13 | W10210891 | Hinge, Top (white, Rh) (Replaces: W10120106) |
|
$ 86.78 | |||||
| 14 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 22.14 | ||||
| 14 | 67003484 | Cover, Corner (white) |
|
$ 21.42 | |||||
| 15 | W10157973 | Clip, Drain |
|
$ 7.80 | |||||
| 16 | 67006102 | Cover, Unit |
|
- | |||||
| 17 | W10131133 | Grille, Toe (white) |
|
- | |||||
| 17 | W10131134 | Grille, Toe (black) |
|
$ 53.25 | |||||
| 18 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 19 | W10164397 | Tube, Drain |
|
$ 15.53 | |||||
| 20 | 67006425 | Screw (10) |
|
Immediately | $ 7.30 | ||||
| 21 | 67003796 | Fiber, Acoustic |
|
$ 19.27 | |||||
| 22 | 67004098 | Cover, Water Valve |
|
- | |||||
| 23 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 24 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 119.86 | ||||
| 25 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 26 | 67004092 | Block, Filter (2) |
|
- | |||||
| 27 | 12831101 | Sweep, Dual Tube (Replaces: 67004101) |
|
$ 13.03 |
