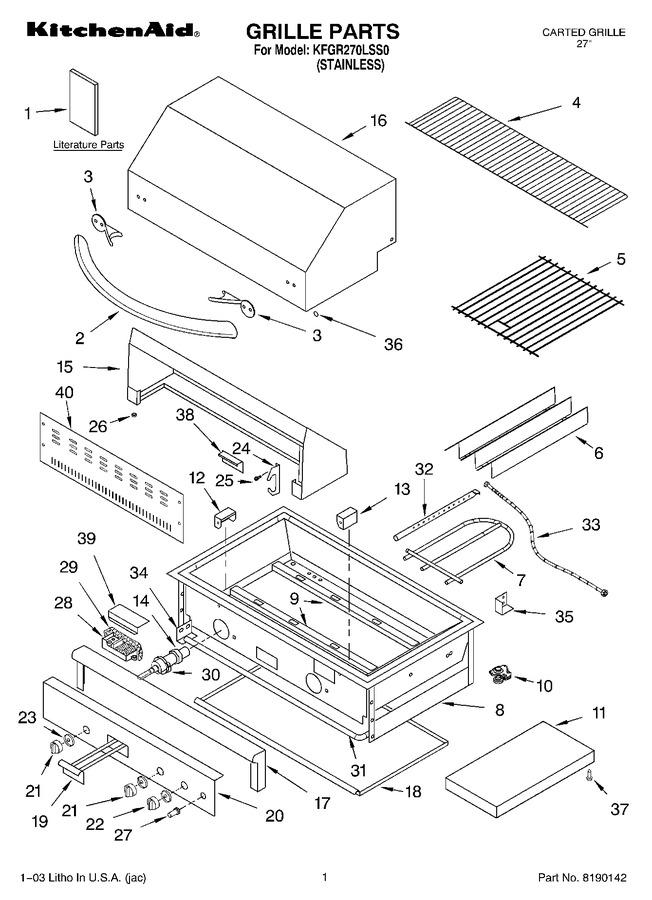

01 - Grille Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8285350		Literature Parts (u & C Guide / Instructions, Installation)		Appelez-nous	-
2	8190085		Handle, Hood		Appelez-nous	-
3	8190084		Insulator, Handle		Appelez-nous	-
4	8190112		Shelf, Warmer		Appelez-nous	-
5	8190126		Grate (2)		Appelez-nous	-
6	8190088		Plate, Sear (2)		Appelez-nous	-
7	8190103		Burner, Main (2)		Appelez-nous	-
9	8190131		Hanger, Burner (2)		Appelez-nous	-
10	8190113		Regulator W/hose		Appelez-nous	-
11	8190087		Shelf, Side (2)		Appelez-nous	-
12	8190100		Left Collector Box		Appelez-nous	-
13	8190099		Right Collectr Box		Appelez-nous	-
14	8190138		Orifice (main Burner (2))		Appelez-nous	-
14	8190129		Orifice (smoker)		Appelez-nous	-
15	8190107		Hood Asy, Rear		Appelez-nous	-
16	8190108		Hood Asy, Front		Appelez-nous	-
17	8190109		Bullnose Asy		Appelez-nous	-
18	8190082		Tray, Drip		Appelez-nous	-
19	8190110		Tray Asy, Smoker		Appelez-nous	-
20	8190102		Panel, Front		Appelez-nous	-
21	8190028		Knob, Burner (2)				$ 23.95
22	8190030		Knob, Smoker		Appelez-nous	-
23	8190027		Bezel (3)		Appelez-nous	-
24	8190111		Saddle, Spit (2)		Appelez-nous	-
25	WPW10068250		Screw   (Replaces: 8190032)				$ 3.84
26	8190031		Spacer, Hood (2)		Appelez-nous	-
27	8190029		Switch, Igniter		Appelez-nous	-
28	8190459		Module, Spark		Appelez-nous	-
29	8190130		Insulation, Module		Appelez-nous	-
30	8190024		Valve, Burner (main (2))		Appelez-nous	-
30	8190141		Valve, Burner (smoker)		Appelez-nous	-
31	8190137		Manifold		Appelez-nous	-
32	8190127		Burner, Smoker		Appelez-nous	-
33	8190128		Flex Tube, Smoker		Appelez-nous	-
34	8190139		Bracket, Manifold		Appelez-nous	-
35	8190091		Stop, Hood (left)		Appelez-nous	-
35	8190092		Stop, Hood (right)		Appelez-nous	-
36	8190104		Plug, Hole (4)		Appelez-nous	-
37	8190034		Bumper (6)		Appelez-nous	-
38	8190094		Cover, Rear		Appelez-nous	-
39	8190081		Shield, Igniter		Appelez-nous	-
40	8190124		Screw 1/4-20x1/2ss (hex Bolt)		Appelez-nous	-
40	8190122		Nut, Combination		Appelez-nous	-
40	8190123		Lockwasher 1/4ss		Appelez-nous	-
40	W11708395		Washer, Flat   (Replaces: 8190125)				$ 4.02
40	8190164		Panel, Access		Appelez-nous	-
40	N/A		Following Parts Not Illustrated		Appelez-nous	-
40	8190132		Cabinet Door-left		Appelez-nous	-
40	8190133		Cabinet Door-right		Appelez-nous	-
40	8190115		Latch-door Caster, Swivel		Appelez-nous	-
40	8190135		W/o Brake		Appelez-nous	-
40	8190136		W/brake		Appelez-nous	-
40	8190134		Screw - Casters		Appelez-nous	-
40	8190086		Handle, Door (2)		Appelez-nous	-
40	8190089		Tank, Lp		Appelez-nous	-
40	8190090		Logo, Kitchenaid		Appelez-nous	-
40	WP2004333		Clip, Logo (4)   (Replaces: 8190114)				$ 10.12
40	8190457		Strip, Grip (handle, Hood)		Appelez-nous	-
40	8190453		Washer, Fiber (handle, Hood)		Appelez-nous	-
40	8190140		Plug, Pipe 1/8 C/s Hex Head		Appelez-nous	-
40	8190156		Battery, 9 Volt		Appelez-nous	-
40	8190372		Electrode Kit		Appelez-nous	-
40	8190106		Wire, Battery		Appelez-nous	-
40	8190105		Cover, Bullnose		Appelez-nous	-
40	8190035		Elbow 3/8 To 1/2		Appelez-nous	-
40	8190033		Clip, J Type 8-32		Appelez-nous	-
40	WPW10139757		Nut, Hex 1/4-20ss   (Replaces: 8190116)				$ 7.93
40	8190117		Screw 1/4-20x3/8ss		Appelez-nous	-
40	WP67006715		Screw 1/4-20x7/8 (hex Cap)   (Replaces: 8190118)				$ 6.80
40	8190121		Screw 18x1/2 Pan		Appelez-nous	-
