SELECT A DIAGRAM

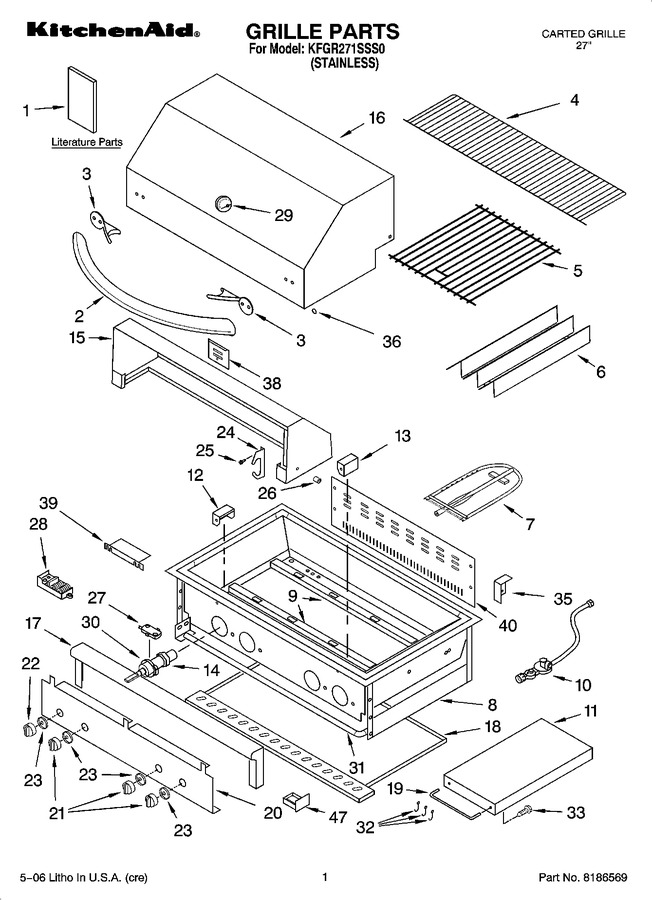

01 - Grille Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9763754 | U & C Guide / Instructions, Installation |
|
- | |||||
| 2 | 8186576 | Handle, Hood |
|
- | |||||
| 3 | 8186540 | Insulator, Handle |
|
- | |||||
| 4 | 8186640 | Shelf, Warmer |
|
- | |||||
| 5 | 8186635 | Grate (2) |
|
- | |||||
| 6 | 8186579 | Plate, Sear (2) |
|
- | |||||
| 7 | 8190632 | Burner, Main (2) |
|
$ 0.01 | |||||
| 9 | 8186590 | Hanger, Burner (2) |
|
- | |||||
| 10 | 8186629 | Regulator W/hose |
|
- | |||||
| 11 | 8186739 | Shelf, Side (left) |
|
- | |||||
| 11 | 8186738 | Shelf, Side (right) |
|
- | |||||
| 12 | 8186593 | Left Collector Box |
|
- | |||||
| 13 | 8186592 | Right Collectr Box |
|
- | |||||
| 14 | 8186643 | Orifice (main Burner (2)) |
|
- | |||||
| 15 | 8190107 | Hood Asy, Rear |
|
- | |||||
| 16 | 8186556 | Hood Asy, Front |
|
- | |||||
| 17 | 8186558 | Bullnose Asy |
|
- | |||||
| 18 | 8186536 | Tray, Drip |
|
- | |||||
| 19 | 8186740 | Bar, Tool |
|
- | |||||
| 20 | 8186535 | Panel, Front |
|
- | |||||
| 21 | 8186542 | Knob, Burner (2) |
|
- | |||||
| 22 | 8186543 | Knob, Ir |
|
- | |||||
| 23 | 8186578 | Bezel (3) |
|
- | |||||
| 24 | 8186620 | Saddle, Spit (2) |
|
- | |||||
| 25 | WPW10068250 | Screw (Replaces: 8190032) |
|
$ 3.84 | |||||
| 26 | 8186619 | Spacer, Hood (2) |
|
- | |||||
| 27 | 8186541 | Switch, Igniter |
|
- | |||||
| 28 | 8186554 | Module, Spark |
|
- | |||||
| 29 | 8186656 | Thermometer |
|
- | |||||
| 30 | 8186567 | Valve, Burner (ir) |
|
- | |||||
| 30 | 8186541 | Valve, Burner (main (2)) |
|
- | |||||
| 31 | 8186544 | Manifold |
|
- | |||||
| 32 | 8186737 | Hook |
|
- | |||||
| 33 | 8190124 | Screw |
|
- | |||||
| 35 | 8186586 | Stop, Hood (right) |
|
- | |||||
| 35 | 8186581 | Stop, Hood (left) |
|
- | |||||
| 36 | 8186603 | Plug, Hole (4) |
|
- | |||||
| 38 | 8186588 | Cover, Rear |
|
- | |||||
| 39 | 8186575 | Shield, Igniter |
|
- | |||||
| 40 | 8186612 | Panel, Access |
|
- | |||||
| 47 | W11708395 | Washer, Flat (1/4x11/16ss) (Replaces: 8190125) |
|
$ 4.02 | |||||
| 47 | WP67006715 | Screw 1/4-20x7/8 (hex Cap) (Replaces: 8190118) |
|
$ 6.80 | |||||
| 47 | 8190121 | Screw 18x1/2 Pan |
|
- | |||||
| 47 | 8190122 | Nut, Combination |
|
- | |||||
| 47 | 8190123 | Lockwasher 1/4ss |
|
- | |||||
| 47 | 8190124 | Screw 1/4-20x1/2ss (hex Bolt) |
|
- | |||||
| 47 | 8186565 | Tray, Battery Assy |
|
- | |||||
| 47 | 8190132 | Cabinet Door-left |
|
- | |||||
| 47 | 8190133 | Cabinet Door-right |
|
- | |||||
| 47 | 8190115 | Latch-door Caster, Swivel |
|
- | |||||
| 47 | 8186601 | W/o Brake |
|
- | |||||
| 47 | 8186602 | W/brake |
|
- | |||||
| 47 | 8190134 | Screw - Casters |
|
- | |||||
| 47 | 8186577 | Handle, Door (2) |
|
- | |||||
| 47 | 8186580 | Logo, Kitchenaid |
|
- | |||||
| 47 | WP2004333 | Clip, Logo (4) (Replaces: 8190114) |
|
$ 10.12 | |||||
| 47 | 8190457 | Strip, Grip (handle, Hood) |
|
- | |||||
| 47 | 8186607 | Washer, Fiber (handle, Hood) |
|
- | |||||
| 47 | 8190140 | Plug, Pipe 1/8 C/s Hex Head |
|
- | |||||
| 47 | 8186547 | Electrode Kit |
|
- | |||||
| 47 | 8186550 | Cover, Bullnose |
|
- | |||||
| 47 | 8190035 | Elbow 3/8 To 1/2 |
|
- | |||||
| 47 | WP8281196 | Screw 8-32x1`` Ss (spark Target) (Replaces: 8190633) |
|
Immediately | $ 6.80 | ||||
| 47 | WP488130 | Nut, Hex Lock (8-32 Ss Spark) (Replaces: 8190634) |
|
$ 6.59 | |||||
| 47 | 8190033 | Clip, J Type 8-32 |
|
- | |||||
| 47 | WPW10139757 | Nut, Hex 1/4-20ss (Replaces: 8190116) |
|
$ 7.93 | |||||
| 47 | 8190117 | Screw 1/4-20x3/8ss |
|
- |
