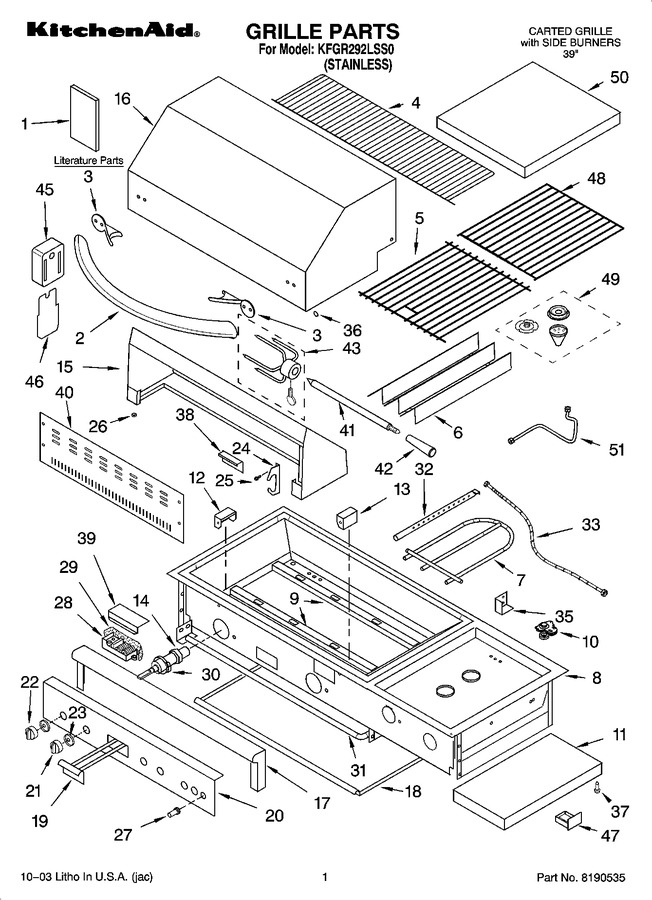

01 - Grille Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8285350 | Literature Parts (u & C Guide / Instructions, Installation) |
|
- | |||||
| 2 | 8190085 | Handle, Hood |
|
- | |||||
| 3 | 8190084 | Insulator, Handle |
|
- | |||||
| 4 | 8190112 | Shelf, Warmer |
|
- | |||||
| 5 | 8190126 | Grate (2) |
|
- | |||||
| 6 | 8190088 | Plate, Sear (2) |
|
- | |||||
| 7 | 8190103 | Burner, Main (2) |
|
- | |||||
| 9 | 8190131 | Hanger, Burner (2) |
|
- | |||||
| 10 | 8190022 | Regulator W/hose |
|
- | |||||
| 11 | 8190087 | Shelf, Side (2) |
|
- | |||||
| 12 | 8190100 | Left Collector Box |
|
- | |||||
| 13 | 8190099 | Right Collectr Box |
|
- | |||||
| 14 | 4396311 | Orifices - Lp Kit |
|
$ 129.39 | |||||
| 15 | 8190160 | Hood Asy, Rear |
|
- | |||||
| 16 | 8190108 | Hood Asy, Front |
|
- | |||||
| 17 | 8190486 | Bullnose Asy |
|
- | |||||
| 18 | 8190523 | Tray, Drip |
|
- | |||||
| 19 | 8190110 | Tray Asy, Smoker |
|
- | |||||
| 20 | 8190483 | Panel, Front |
|
- | |||||
| 21 | 8190028 | Knob, Burner (4) |
|
$ 23.95 | |||||
| 22 | 8190030 | Knob, Smoker/ir |
|
- | |||||
| 23 | 8190027 | Bezel (6) |
|
- | |||||
| 24 | 8190111 | Saddle, Spit (2) |
|
- | |||||
| 25 | WPW10068250 | Screw (Replaces: 8190032) |
|
$ 3.84 | |||||
| 26 | 8190031 | Spacer, Hood (2) |
|
- | |||||
| 27 | 8190029 | Switch, Igniter |
|
- | |||||
| 28 | 8190458 | Module, Spark (2 Spark) |
|
- | |||||
| 28 | 8190459 | Module, Spark (4 Spark) |
|
- | |||||
| 29 | 8190130 | Insulation, Module |
|
- | |||||
| 30 | 8190141 | Valve, Burner (smoker / Ir) |
|
- | |||||
| 30 | 8190024 | Valve, Burner (main (4)) |
|
- | |||||
| 31 | W10165278 | Manifold |
|
- | |||||
| 32 | 8190127 | Burner, Smoker |
|
- | |||||
| 33 | 8190128 | Flex Tube, Smoker |
|
- | |||||
| 35 | 8190092 | Stop, Hood (right) |
|
- | |||||
| 35 | 8190091 | Stop, Hood (left) |
|
- | |||||
| 36 | 8190104 | Plug, Hole (4) |
|
- | |||||
| 37 | 8190034 | Bumper (6) |
|
- | |||||
| 38 | 8190094 | Cover, Rear |
|
- | |||||
| 39 | 8190081 | Shield, Igniter |
|
- | |||||
| 40 | 8190485 | Panel, Access |
|
- | |||||
| 41 | 8190172 | Rod, Spit |
|
- | |||||
| 42 | 8190171 | Handle, Rotisserie |
|
- | |||||
| 43 | 8190170 | Skewer (2) |
|
- | |||||
| 45 | 8190015 | Motor, Rotisserie |
|
- | |||||
| 46 | 8190159 | Bracket, Motor |
|
- | |||||
| 47 | 8190500 | Tray, Battery |
|
- | |||||
| 48 | 8190484 | Grate, Sideburner |
|
- | |||||
| 49 | 8190455 | Burner Assembly (2) |
|
- | |||||
| 50 | 8190524 | Cover, Sideburner |
|
- | |||||
| 51 | WP3400814 | Screw 8x32x1/2 (Replaces: 8190527) |
|
$ 4.16 | |||||
| 51 | 8190454 | Bracket, Smoker |
|
- | |||||
| 51 | 8190460 | Boot, Igntr Switch |
|
- | |||||
| 51 | WP308685 | Screw 10 X 1/2 (Replaces: 8190526) |
|
Immediately | $ 7.08 | ||||
| 51 | 8190431 | Cable W/clip (alt Lighting) |
|
- | |||||
| 51 | 8190516 | Tubing, Sideburner (front) |
|
- | |||||
| 51 | 8190517 | Tubing, Sideburner (rear) |
|
- | |||||
| 51 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 51 | 8190487 | Cabinet Door-left |
|
- | |||||
| 51 | 8190488 | Cabinet Door-right |
|
- | |||||
| 51 | 8190115 | Latch-door Caster, Swivel |
|
- | |||||
| 51 | 8190135 | W/o Brake |
|
- | |||||
| 51 | 8190136 | W/brake |
|
- | |||||
| 51 | 8190134 | Screw - Casters |
|
- | |||||
| 51 | 8190086 | Handle, Door (2) |
|
- | |||||
| 51 | 8190089 | Tank, Lp |
|
- | |||||
| 51 | 8190090 | Logo, Kitchenaid |
|
- | |||||
| 51 | WP2004333 | Clip, Logo (4) (Replaces: 8190114) |
|
$ 10.12 | |||||
| 51 | 8190158 | Tubing, Ir 3/8x4` |
|
- | |||||
| 51 | 8190457 | Strip, Grip (handle, Hood) |
|
- | |||||
| 51 | 8190525 | Washer, Fiber (handle, Hood) |
|
- | |||||
| 51 | 8190178 | Elbow, Ir Safety |
|
- | |||||
| 51 | 8190156 | Battery, 9 Volt |
|
- | |||||
| 51 | 8190528 | Valve, Ir Safety |
|
- | |||||
| 51 | 8190021 | Thermocouple, Ir |
|
- | |||||
| 51 | 8190505 | Electrode Kit |
|
- | |||||
| 51 | 8190161 | Infared Weld Asy |
|
- | |||||
| 51 | 8190162 | Bracket, Ir Igntr |
|
- | |||||
| 51 | 8190165 | Cover, Ir Igntr |
|
- | |||||
| 51 | 8190105 | Cover, Bullnose |
|
- | |||||
| 51 | 8190167 | Elbow, Orifice (w/o Hood & Pin) |
|
- | |||||
| 51 | 8190169 | Union, Ir (double End 3/8) |
|
- | |||||
| 51 | 8190035 | Elbow 3/8 To 1/2 |
|
- | |||||
| 51 | 8190033 | Clip, J Type 8-32 |
|
- | |||||
| 51 | WPW10139757 | Nut, Hex 1/4-20ss (Replaces: 8190116) |
|
$ 7.93 | |||||
| 51 | 8190117 | Screw 1/4-20x3/8ss |
|
- | |||||
| 51 | WP67006715 | Screw 1/4-20x7/8 (hex Cap) (Replaces: 8190118) |
|
$ 6.80 | |||||
| 51 | 8190121 | Screw 18x1/2 Pan |
|
- | |||||
| 51 | 8190122 | Nut, Combination |
|
- | |||||
| 51 | 8190123 | Lockwasher 1/4ss |
|
- | |||||
| 51 | 8190124 | Screw 1/4-20x1/2ss (hex Bolt) |
|
- | |||||
| 51 | W11708395 | Washer, Flat (Replaces: 8190125) |
|
$ 4.02 |
