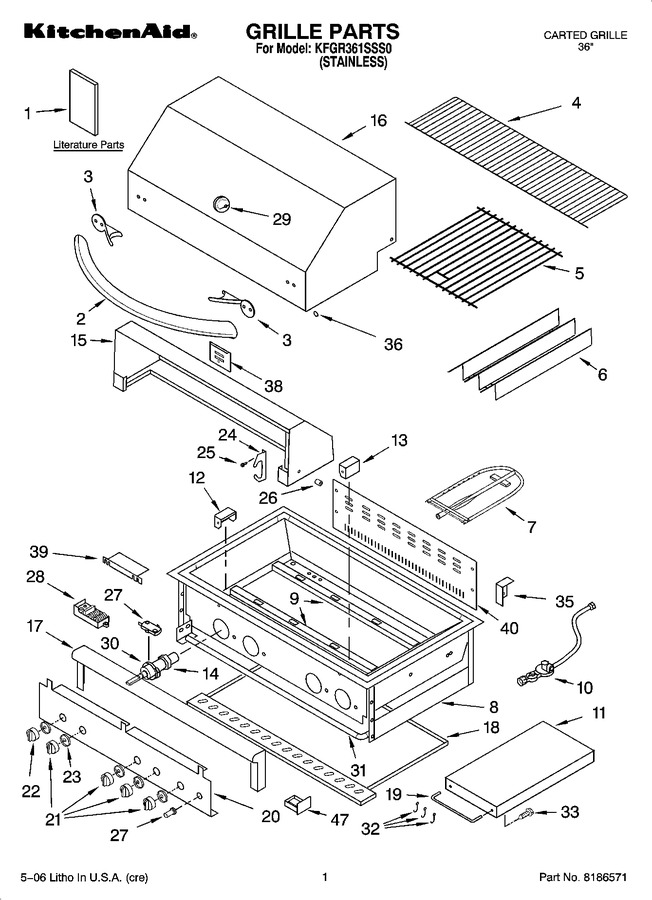

01 - Grille Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9763754		U & C Guide / Instructions, Installation		Appelez-nous	-
2	8186576		Handle, Hood		Appelez-nous	-
3	8186540		Insulator, Handle		Appelez-nous	-
4	8186641		Shelf, Warmer		Appelez-nous	-
5	8186636		Grate (2)		Appelez-nous	-
6	8186579		Plate, Sear (3)		Appelez-nous	-
7	8190632		Burner, Main (3)				$ 0.01
9	8186594		Hanger, Burner (2)		Appelez-nous	-
10	8190022		Regulator W/hose		Appelez-nous	-
11	8186738		Shelf, Side (right)		Appelez-nous	-
11	8186739		Shelf, Side (left)		Appelez-nous	-
12	8186593		Left Collector Box		Appelez-nous	-
13	8186592		Right Collectr Box		Appelez-nous	-
14	8186627		Orifice (infared)		Appelez-nous	-
14	8186643		Orifice (main Burner (3))		Appelez-nous	-
15	8186560		Hood Asy, Rear		Appelez-nous	-
16	8186559		Hood Asy, Front		Appelez-nous	-
17	8186571		Bullnose Asy		Appelez-nous	-
18	8186538		Tray, Drip		Appelez-nous	-
19	8186740		Bar, Tool		Appelez-nous	-
20	8186537		Panel, Front		Appelez-nous	-
21	8186542		Knob, Burner (3)		Appelez-nous	-
22	8186543		Knob, Ir		Appelez-nous	-
23	8186578		Bezel (4)		Appelez-nous	-
24	8186620		Saddle, Spit (2)		Appelez-nous	-
25	WPW10068250		Screw   (Replaces: 8190032)				$ 3.84
26	8186619		Spacer, Hood (2)		Appelez-nous	-
27	8190638		Switch, Igniter		Appelez-nous	-
28	8186554		Module, Spark (4 Spark)		Appelez-nous	-
29	8186656		Thermometer		Appelez-nous	-
30	8186567		Valve, Burner (smoker / Ir)		Appelez-nous	-
30	8186541		Valve, Burner (main (3))		Appelez-nous	-
31	8190189		Manifold		Appelez-nous	-
32	8186737		Hook		Appelez-nous	-
33	8190124		Screw		Appelez-nous	-
35	8186581		Stop, Hood (left)		Appelez-nous	-
35	8186586		Stop, Hood (right)		Appelez-nous	-
36	8186603		Plug, Hole (4)		Appelez-nous	-
38	8186588		Cover, Rear		Appelez-nous	-
39	8186575		Shield, Igniter		Appelez-nous	-
40	8190193		Panel, Access		Appelez-nous	-
47	8186568		Washer (7) (3/8 X 3/4 X 1/16)		Appelez-nous	-
47	8190121		Screw 18x1/2 Pan		Appelez-nous	-
47	8190122		Nut, Combination		Appelez-nous	-
47	8190123		Lockwasher 1/4ss		Appelez-nous	-
47	8190124		Screw 1/4-20x1/2ss (hex Bolt)		Appelez-nous	-
47	W11708395		Washer, Flat (1/4x11/16ss)   (Replaces: 8190125)				$ 4.02
47	8186565		Tray, Battery Assy		Appelez-nous	-
47	8190190		Cabinet Door-left		Appelez-nous	-
47	8190191		Cabinet Door-right		Appelez-nous	-
47	8190115		Latch-door Caster, Swivel		Appelez-nous	-
47	8186601		W/o Brake		Appelez-nous	-
47	8186602		W/brake		Appelez-nous	-
47	8190134		Screw - Casters		Appelez-nous	-
47	8186577		Handle, Door (2)		Appelez-nous	-
47	8186580		Logo, Kitchenaid		Appelez-nous	-
47	WP2004333		Clip, Logo (4)   (Replaces: 8190114)				$ 10.12
47	8190158		Tubing, Ir 3/8x4`		Appelez-nous	-
47	8190178		Elbow, Ir Safety		Appelez-nous	-
47	8186607		Washer, Fiber (4) (hood Handle)		Appelez-nous	-
47	8190140		Plug, Pipe 1/8 C/s Hex Head		Appelez-nous	-
47	8190174		Valve, Ir Safety		Appelez-nous	-
47	8186639		Thermocouple, Ir		Appelez-nous	-
47	8186548		Electrode Kit		Appelez-nous	-
47	8186614		Infared Weld Asy		Appelez-nous	-
47	8186615		Bracket, Ir Igntr		Appelez-nous	-
47	8186616		Cover, Ir Igntr		Appelez-nous	-
47	8186550		Cover, Bullnose		Appelez-nous	-
47	8186625		Elbow, Orifice (w/o Hood & Pin)		Appelez-nous	-
47	8190169		Union, Ir (double End 3/8)		Appelez-nous	-
47	8186633		Elbow 3/8 To 1/2		Appelez-nous	-
47	8190173		Coupler, Brass		Appelez-nous	-
47	WP8281196		Screw 8-32x1`` Ss (spark Target)   (Replaces: 8190633)			Immediately	$ 6.80
47	WP488130		Nut, Hex Lock (8-32 Ss Spark)   (Replaces: 8190634)				$ 6.59
47	8190033		Clip, J Type 8-32		Appelez-nous	-
47	WPW10139757		Nut, Hex 1/4-20ss   (Replaces: 8190116)				$ 7.93
47	8190117		Screw 1/4-20x3/8ss		Appelez-nous	-
47	WP67006715		Screw 1/4-20x7/8 (hex Cap)   (Replaces: 8190118)				$ 6.80
