SELECT A DIAGRAM

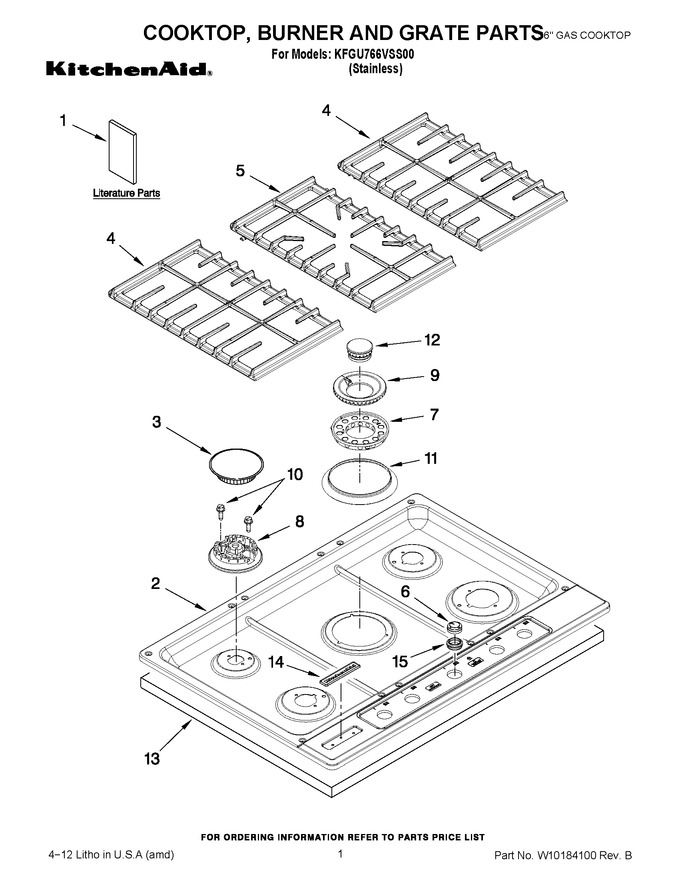

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286867		Installation Instructions		Appelez-nous	-
1	8304571		Inst. Instruction Undercounter		Appelez-nous	-
1	8286868		Use & Care Guide		Appelez-nous	-
1	8286697		Tech Sheet		Appelez-nous	-
1	3191638		Safe Cooking Tips (english)		Appelez-nous	-
1	9759133		Safe Cooking Tips (french)		Appelez-nous	-
1	8287002		Lp Conversion Instructions		Appelez-nous	-
2	W10132149		Cooktop		Appelez-nous	-
3	WP8286818		Cap, Burner (lf,rf)   (Replaces: 8286818)				$ 117.80
3	WP8286817		Cap, Burner (rr)   (Replaces: 8286817)				$ 117.69
3	WP8286816		Cap, Burner (lr)   (Replaces: 8286816)				$ 110.74
4	WP8287314		Grate, Burner (left)   (Replaces: 8287314)				$ 228.27
4	8286662		Grate, Burner (right)				$ 95.67
5	8287049		Grate, Center				$ 95.84
6	W10132191		Knob (special Brnr)   (Replaces: W10132175)				$ 62.32
6	WPW10132192		Knob (standard Brnr)   (Replaces: W10132174)			Immediately	$ 62.79
7	WP8287072		Cross Ring, Ctr Brn   (Replaces: 8287072)				$ 208.27
8	WP8286814		Head, Burner (rr)   (Replaces: 8286814)			Immediately	$ 124.59
8	WP8286815		Head, Burner (lf,rf)   (Replaces: 8286815)			Immediately	$ 74.38
8	WP8286813		Head, Burner (lr)   (Replaces: 8286813)				$ 95.00
9	WPW10153033		Outer Spreader   (Replaces: W10153033)				$ 196.93
10	WP8287059		Screw   (Replaces: 8287059)			Immediately	$ 8.34
11	8287075		Beauty Ring, Ctr Brn				$ 30.60
12	WPW10163407		Inner Spreader   (Replaces: W10163407)				$ 163.21
13	8286862		Insulation, Cktp				$ 46.48
14	8304603SS		Nameplate				$ 51.11
15	8286854		Grommet, Knob				$ 7.51

    View Diagram in Separate Window       Print Part List
