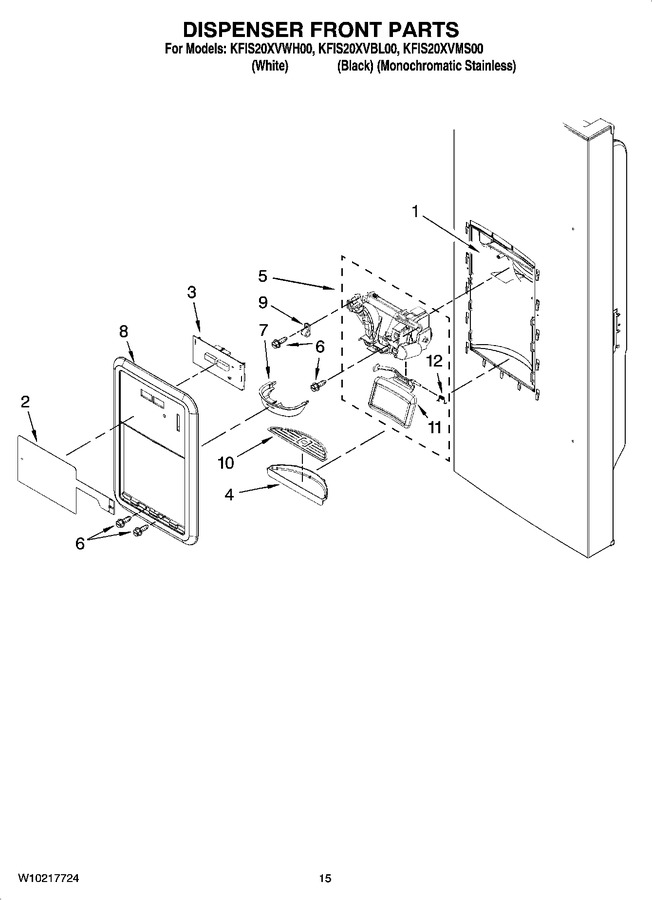

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10180050		Dispenser Keyboard		Appelez-nous	-
3	13053103SP		Board, L.v.				$ 328.26
4	W10184826		Sump, Dispenser (white)		Appelez-nous	-
4	W10187366		Sump, Dispenser (stainless)		Appelez-nous	-
4	W10184827		Sump, Dispenser (black)		Appelez-nous	-
5	WP13005703W		Chute, Ext/yoke (includes Switch) (white)   (Replaces: W10191155)				$ 323.10
5	WP13005703B		Chute, Ext/yoke (includes Switch) (black)   (Replaces: W10191151)				$ 324.63
5	WP13005705		Chute, Ext/yoke (includes Switch) (midnight Grey (dark))   (Replaces: W10192824)			Immediately	$ 329.03
6	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
7	67006295		Ring, Target				$ 55.57
8	WPW10310688		Facade, Dispenser (apollo Grey)   (Replaces: W10142273)				$ 232.13
8	W10184486		Facade, Dispenser (black)				$ 33.41
8	W10183198		Facade, Dispenser (white)				$ 33.86
9	M0108106		Clamp, Tube				$ 69.95
10	W10187370		Grille, Sump				$ 27.25
11	WPW10185233		Yoke/pad Assy. Midnight Grey (dark)   (Replaces: W10185233)				$ 85.43
11	W10170832		Yoke/pad Assy. (black)				$ 85.18
11	W10170831		Yoke/pad Assy. (white)				$ 83.80
12	WP12565502		Spring   (Replaces: 12565502)				$ 8.43
