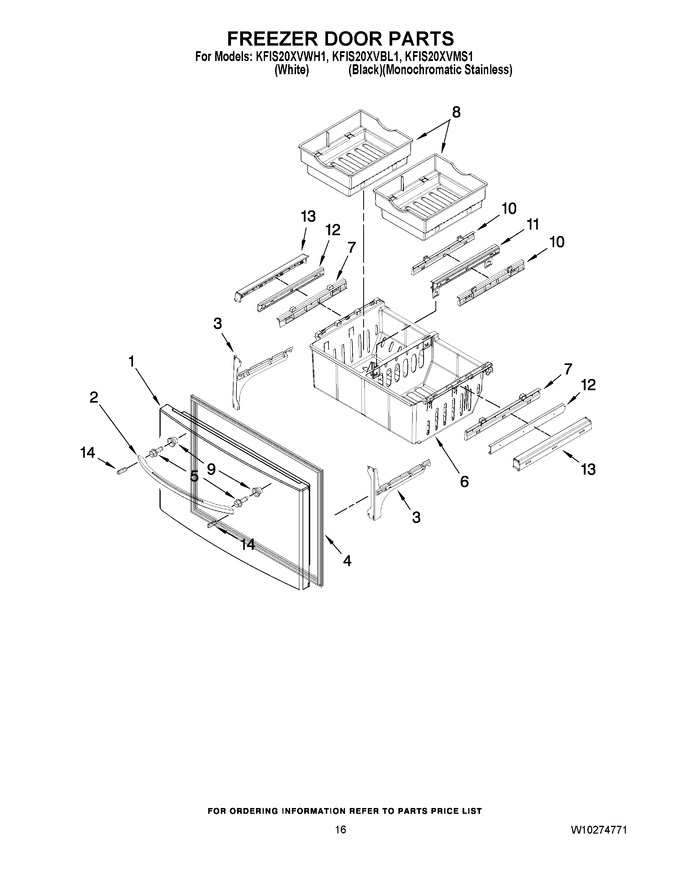

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977803BQ		Freezer Door (black)		Appelez-nous	-
1	12977803SQ		Freezer Door (stainless)		Appelez-nous	-
1	12977803WQ		Freezer Door (white)		Appelez-nous	-
2	WPW10314515		Handle, Door (white)   (Replaces: W10119642)				$ 238.49
2	W10119643		Handle, Door (black)		Appelez-nous	-
2	WPW10314517K		Handle, Door (stainless)   (Replaces: W10119644)				$ 243.37
3	WPW10330994		Bracket, Door Slide (left)   (Replaces: W10119064)			Immediately	$ 169.02
3	WPW10330995		Bracket, Door Slide (right)   (Replaces: W10119295)			Immediately	$ 340.61
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 360.89
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 323.60
4	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 359.84
5	WP3387230		Screw, Handle   (Replaces: 12692001)			Immediately	$ 8.54
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Bin (outer)   (Replaces: 13002603SP)				$ 92.28
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 122.12
9	12691403		Mount, Handle		Appelez-nous	-
10	W10184223		Adapter, Bin (inner)   (Replaces: 13002604SP)				$ 97.14
11	W10235358		Bracket/glide Assembly   (Replaces: 12969702)				$ 318.09
12	WPW10235368		Glide, Upper   (Replaces: 12925102)				$ 335.82
13	W10826791		Retainer, Glide (right)   (Replaces: 13002702SP)				$ 62.48
13	W10826790		Retainer, Glide (left)   (Replaces: 13002701SP)				$ 62.48
14	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 15.79
