SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts

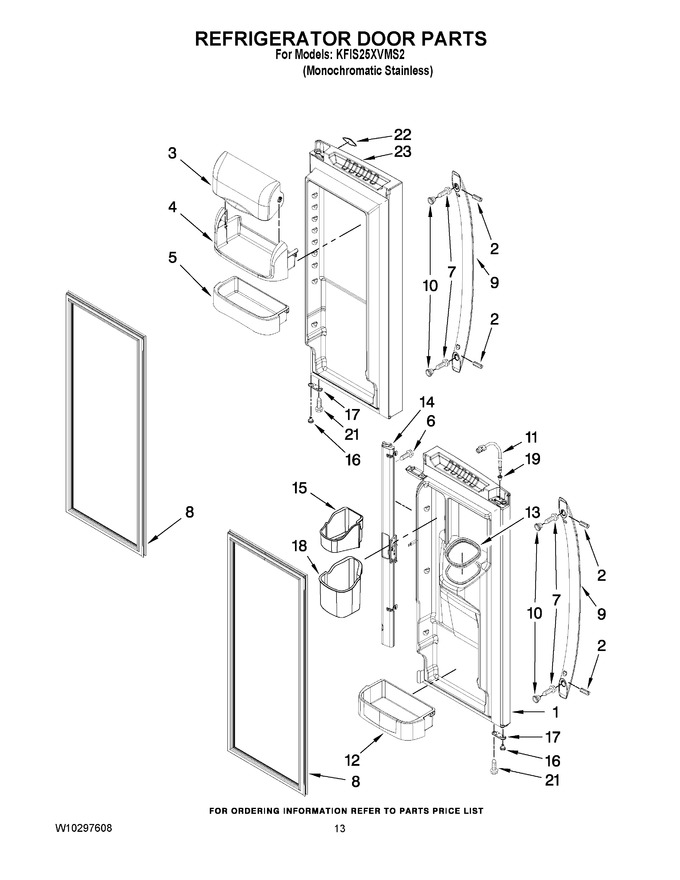

07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978067SQ		Door, Left (stainless)		Appelez-nous	-
2	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 15.79
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	WPW10451453		Bin, Medium (includes Mat W10184031)   (Replaces: W10184033)				$ 90.36
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	WP3387230		Screw, Handle   (Replaces: 3196181)			Immediately	$ 8.54
8	W10830055		Gasket, Door (apollo Grey)   (Replaces: W10163991)			Immediately	$ 229.10
9	WPW10314517K		Handle, Door (stainless)   (Replaces: W10119644)				$ 243.37
10	12691403		Mount, Handle		Appelez-nous	-
11	12962106		Waterline, Door				$ 133.09
12	WPW10451454		Bin, Gallon (includes Mat W10184032)   (Replaces: W10184034)				$ 93.88
13	WPW10287601		Seal, Ice Chute   (Replaces: 12999902)			Immediately	$ 32.76
14	WP12722813AP		Mullion, Door (apollo Grey)   (Replaces: 12732503AP)				$ 340.89
15	W10187453		Bucket, Dispenser (upper)   (Replaces: 12977401)				$ 73.08
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 15.46
18	12977501		Bucket, Dispenser (lower)		Appelez-nous	-
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
21	WP98165		Screw   (Replaces: 67006473)				$ 8.57
22	W10046610		Nameplate (stainless)				$ 33.40
23	12978065SQ		Door, Right (stainless)		Appelez-nous	-
