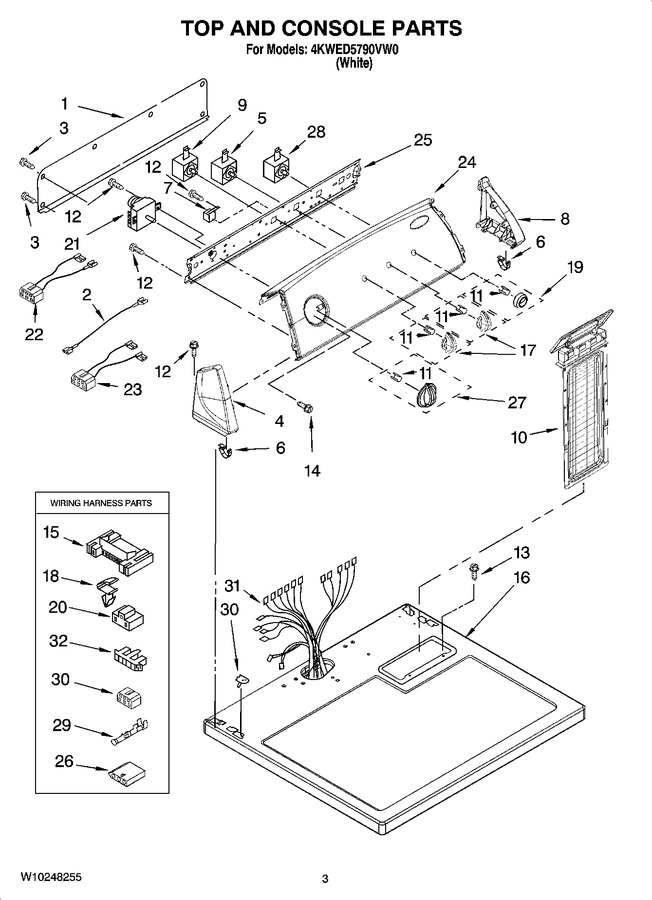

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 2 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WP8565957 | Cap, End (l.h.) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 5 | WP3405156 | Switch, Wrinkle Shield (Replaces: 3405156) |
|
$ 152.79 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | 3952439 | Buzzer, Mini |
|
- | |||||
| 8 | WP8565954 | Cap, End (r.h.) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 131.16 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | W10034380 | Knob, Control (2) |
|
$ 25.06 | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | WPW10034790 | Knob, Push-to-start (Replaces: W10034790) |
|
$ 57.81 | |||||
| 20 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 21 | WP3979618 | Timer, 60 Hz. (Replaces: 3979618) |
|
$ 385.28 | |||||
| 22 | 3397695 | Wire, Jumper (guard On/off) |
|
$ 90.72 | |||||
| 23 | 8539893 | Wire, Jumper (temperature) (Replaces: 3396029) |
|
$ 19.78 | |||||
| 24 | W10115457 | Panel, Control |
|
- | |||||
| 25 | 8566052 | Bracket, Control |
|
- | |||||
| 26 | 3936144 | Connector |
|
$ 21.22 | |||||
| 27 | W10034750 | Timer Knob Assembly |
|
$ 28.27 | |||||
| 28 | WPW10112668 | Switch, Push-to-start (Replaces: W10112668) |
|
$ 128.11 | |||||
| 29 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 30 | 3347243 | Connector 6-circuit |
|
- | |||||
| 31 | W10167649 | Harness, Wiring |
|
- | |||||
| 32 | 3397269 | Connector, Timer |
|
$ 25.55 |
