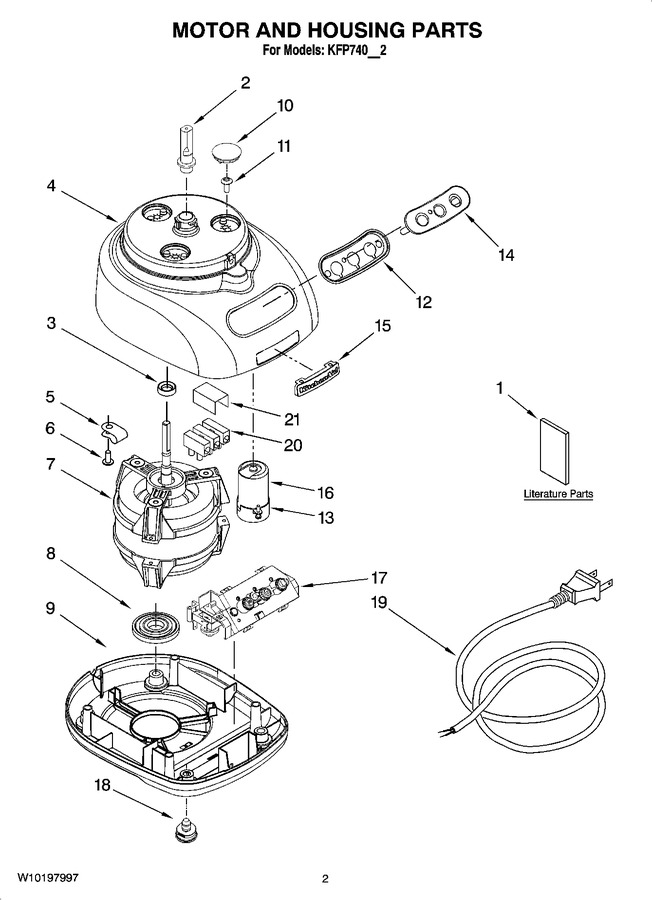

01 - Motor And Housing Parts
02 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8212411 | Use & Care, Trilin |
|
- | |||||
| 1 | W10197997 | Repair Parts List |
|
- | |||||
| 2 | 8211850 | Sleeve, Motor Shaft |
|
$ 23.97 | |||||
| 3 | 8211828 | Seal, Oil |
|
$ 33.19 | |||||
| 4 | 8212184 | Housing, Motor (white) |
|
$ 57.74 | |||||
| 4 | 8212238 | Housing, Motor (onyx Black) |
|
$ 51.97 | |||||
| 4 | 8212236 | Housing, Motor (empire Red) |
|
- | |||||
| 4 | 8212285 | Housing, Motor (gloss Cinnamon) |
|
- | |||||
| 4 | 8212284 | Housing, Motor (blue Willow) |
|
- | |||||
| 4 | W10159620 | Housing, Motor (buttercup) |
|
- | |||||
| 5 | 2185825 | Clamp, Cable (Replaces: 8211610) |
|
- | |||||
| 6 | 8211731 | Screw, Clamp |
|
- | |||||
| 7 | W10197998 | Motor |
|
- | |||||
| 8 | 8212188 | Grommet, Motor |
|
- | |||||
| 9 | 8212190 | Base, Housing (onyx Black) |
|
- | |||||
| 9 | 8212187 | Base, Housing (empire Red) |
|
- | |||||
| 9 | 8212283 | Base, Housing (gloss Cinnamon) |
|
- | |||||
| 9 | W10159621 | Base, Housing (buttercup) |
|
- | |||||
| 9 | 8212282 | Base, Housing (blue Willow) |
|
- | |||||
| 9 | 8212183 | Base, Housing (white) |
|
- | |||||
| 10 | 8212193 | Cover, Screw (onyx Black) |
|
- | |||||
| 10 | W10159622 | Cover, Screw (buttercup) |
|
- | |||||
| 10 | 8212286 | Cover, Screw (blue Willow) |
|
- | |||||
| 10 | 8212287 | Cover, Screw (gloss Cinnamon) |
|
- | |||||
| 10 | 8212191 | Cover, Screw (empire Red) |
|
$ 20.16 | |||||
| 10 | 8212185 | Cover, Screw (white) |
|
- | |||||
| 11 | 8211829 | Screw, Motor Locking |
|
- | |||||
| 12 | 8211848 | Bezel, Switch Panel |
|
- | |||||
| 13 | 8211607 | Clip, Capacitor |
|
- | |||||
| 14 | 8211847 | Overlay, Panel Switch Assy |
|
- | |||||
| 15 | 8211842 | Nameplate |
|
- | |||||
| 16 | 8211608 | Capacitor |
|
$ 59.18 | |||||
| 17 | 8212011 | Relay & Switch Assembly |
|
$ 48.91 | |||||
| 18 | 8211845 | Foot (black) |
|
$ 5.83 | |||||
| 18 | 8211844 | Foot (white) |
|
- | |||||
| 19 | W10451329 | Cord, Power (black) (Replaces: 8211855) |
|
$ 32.10 | |||||
| 19 | W10451329 | Cord, Power (white) (Replaces: 8211856) |
|
$ 32.10 | |||||
| 20 | 8211605 | Terminal Block |
|
- | |||||
| 21 | 8211852 | Cover, Terminal |
|
- |
