SELECT A DIAGRAM

01 - Motor And Housing Parts

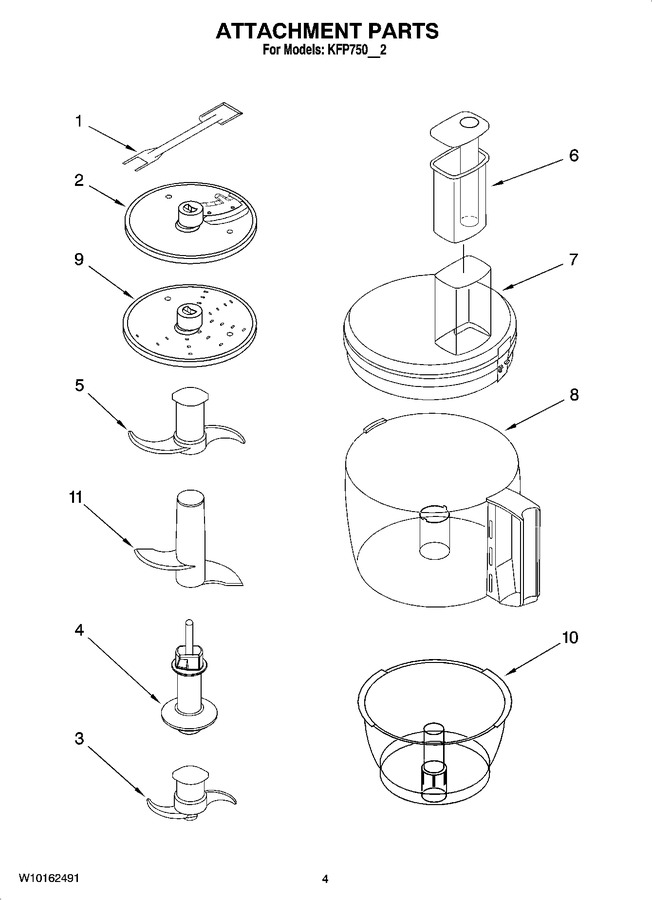

02 - Attachment Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8211760		Spatula				$ 24.64
2	8211930		Disc, Slicing (4 Mm)				$ 66.62
2	8211929		Disc, Slicing (2 Mm)				$ 31.44
3	8212012		Mini Blade				$ 23.14
4	8211858		Adapter, Shaft & Disc		Appelez-nous	-
5	8212014		Blade, Multipurpose				$ 22.38
6	8212291		Pusher, Double Feed Tube (gloss Cinnamon)		Appelez-nous	-
6	W10222552		Pusher, Double Feed Tube (aqua Sky)		Appelez-nous	-
6	8212251		Pusher, Double Feed Tube (white)				$ 13.71
6	8212254		Pusher, Double Feed Tube (onyx Black)				$ 44.03
6	8212252		Pusher, Double Feed Tube (empire Red)		Appelez-nous	-
6	8212255		Pusher, Double Feed Tube (pink)		Appelez-nous	-
6	8212290		Pusher, Double Feed Tube (blue Willow)		Appelez-nous	-
7	8212029		Cover, Work Bowl		Appelez-nous	-
8	8212288		Bowl, Work (blue Willow)		Appelez-nous	-
8	8212246		Bowl, Work (white)		Appelez-nous	-
8	8212249		Bowl, Work (onyx Black)				$ 59.59
8	8212247		Bowl, Work (empire Red)		Appelez-nous	-
8	8212250		Bowl, Work (pink)				$ 52.29
8	8212289		Bowl, Work (gloss Cinnamon)		Appelez-nous	-
8	W10222553		Bowl, Work (aqua Sky)		Appelez-nous	-
9	8211933		Disc, Shredding (4 Mm)		Appelez-nous	-
10	8211926		Bowl, Mini				$ 64.39
11	8212016		Blade, Dough		Appelez-nous	-
	8211928		Bowl, Chef`s				$ 40.01
	8211931		Disc, Slicing 6 Mm				$ 67.18
	8212025		Citrus Extractor				$ 88.03
	8212033		Egg Whip, 12 Cup				$ 42.66
	8211927		Lid, Mini Bowl		Appelez-nous	-
	8211932		Disc, Shredding 2 Mm				$ 56.78
	8211934		Disc, Shredding (6 Mm)		Appelez-nous	-
	8211935		Disc, Julienne				$ 66.49
	WPW10451465		Disc, Grating Parmesan/ice   (Replaces: 8211936)				$ 53.16
	8211937		Disc, Cutting French Fry				$ 70.43
	8211938		Rack, Disc				$ 38.50
	8212034		Accessory Box				$ 77.97

    View Diagram in Separate Window       Print Part List
