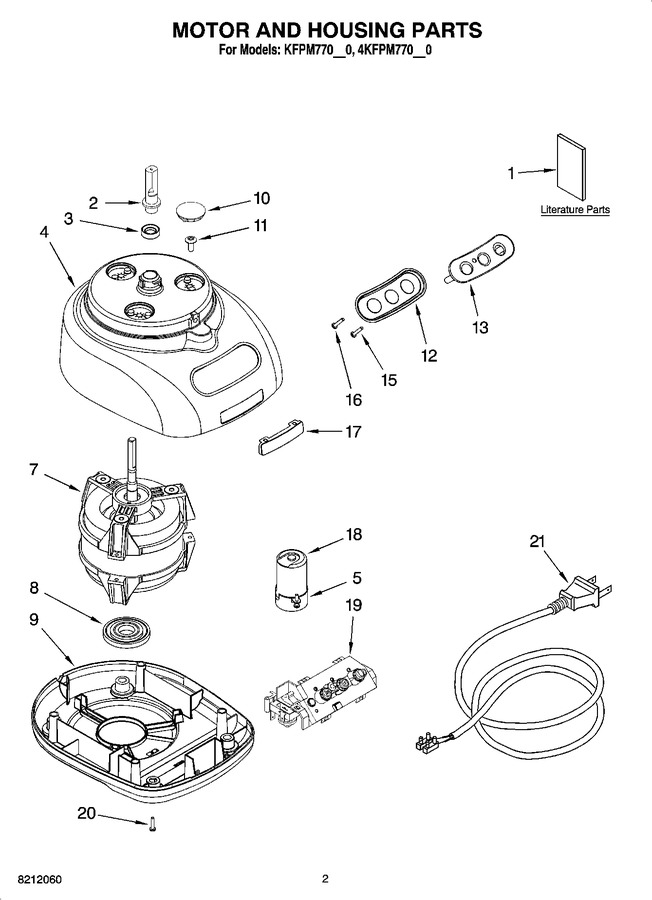

01 - Motor And Housing Parts
02 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8212060 | Repair Parts List |
|
- | |||||
| 1 | 8211864 | Use & Care Guide |
|
- | |||||
| 2 | 8211849 | Sleeve, Motor Shaft |
|
$ 5.83 | |||||
| 3 | 8211828 | Seal, Oil |
|
$ 33.19 | |||||
| 4 | 8211823 | Housing, Motor |
|
- | |||||
| 5 | 8211607 | Clip, Capacitor |
|
- | |||||
| 7 | 8211837 | Motor |
|
- | |||||
| 8 | 8211843 | Grommet, Motor |
|
- | |||||
| 9 | 8212190 | Base, Housing |
|
- | |||||
| 10 | 8211827 | Cover, Screw |
|
- | |||||
| 11 | 8211586 | Screw, Motor Locking |
|
- | |||||
| 12 | 8211848 | Bezel, Switch Panel |
|
- | |||||
| 13 | 8211846 | Overlay & Cover |
|
$ 26.03 | |||||
| 15 | 8211870 | Screw, Torx |
|
- | |||||
| 16 | 8211812 | Screw, Switch Panel |
|
- | |||||
| 17 | 8211842 | Nameplate |
|
- | |||||
| 18 | 8211608 | Capacitor |
|
$ 59.18 | |||||
| 19 | 8212011 | Relay & Switch Assembly |
|
$ 48.91 | |||||
| 20 | 8211845 | Foot |
|
$ 5.83 | |||||
| 21 | 8211857 | Cord, Power |
|
- |
