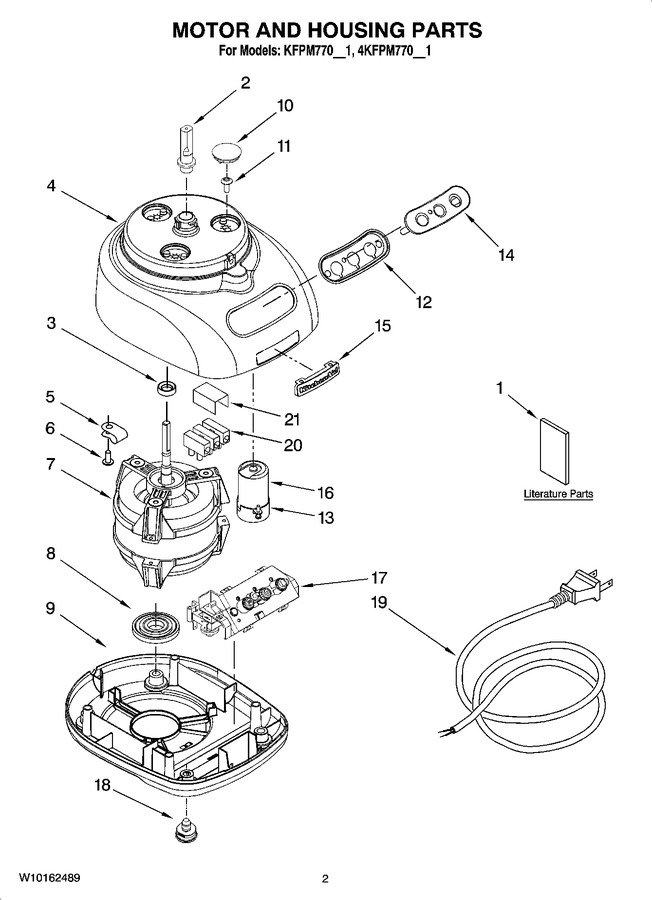

01 - Motor And Housing Parts


02 - Attachment Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10162489		Repair Parts List		Appelez-nous	-
1	8211864		Use & Care Guide		Appelez-nous	-
2	8211849		Sleeve, Motor Shaft				$ 5.83
3	8211828		Seal, Oil				$ 33.19
4	8211823		Housing, Motor		Appelez-nous	-
5	2185825		Clamp, Cable   (Replaces: 8211610)		Appelez-nous	-
6	8211731		Screw, Clamp		Appelez-nous	-
7	W10163676		Motor		Appelez-nous	-
8	8211843		Grommet, Motor		Appelez-nous	-
9	8212190		Base, Housing		Appelez-nous	-
10	8211827		Cover, Screw		Appelez-nous	-
11	8211586		Screw, Motor Locking		Appelez-nous	-
12	8211848		Bezel, Switch Panel		Appelez-nous	-
13	8211607		Clip, Capacitor		Appelez-nous	-
14	8211846		Overlay W/cover				$ 26.03
15	8211842		Nameplate		Appelez-nous	-
16	8211608		Capacitor				$ 59.18
17	8212011		Relay/switch Assy				$ 48.91
18	8211845		Foot				$ 5.83
19	8211857		Cord, Power		Appelez-nous	-
20	8211605		Block, Terminal		Appelez-nous	-
21	8211852		Cover, Terminal		Appelez-nous	-
