SELECT A DIAGRAM

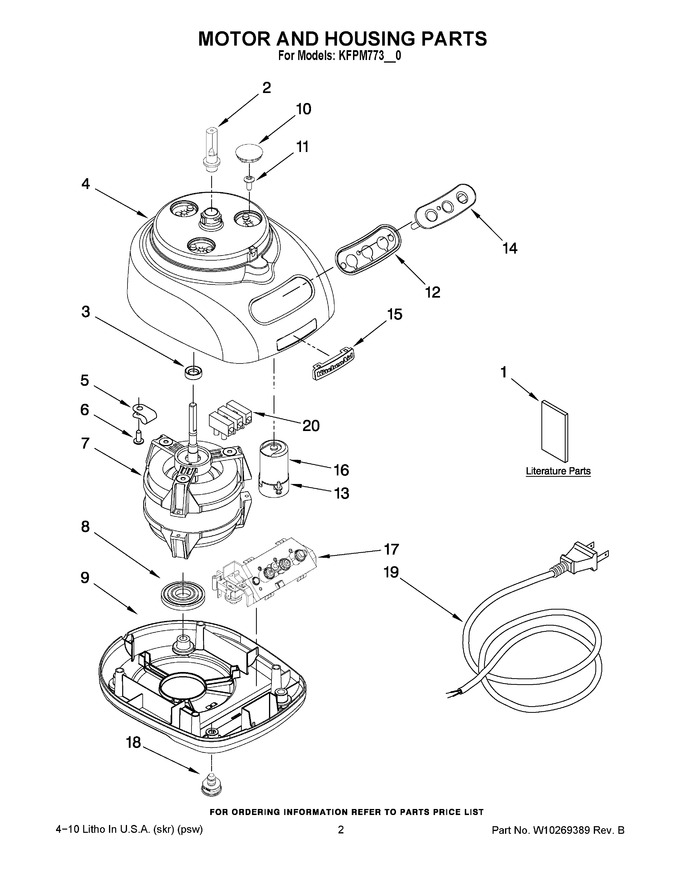

01 - Motor And Housing Parts


02 - Attachment Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10290862		Use & Care Guide		Appelez-nous	-
1	W10269389		Repair Parts List		Appelez-nous	-
2	W10187053		Sleeve, Motor Shaft				$ 5.83
3	8211828		Seal, Oil				$ 33.19
4	W10328854		Housing, Motor (candy Apple)		Appelez-nous	-
4	W10291015		Housing, Motor (cocoa Silver)		Appelez-nous	-
5	W11456069		Clamp, Cable   (Replaces: 8211601)			Immediately	$ 20.16
6	W10291016		Screw, Clamp		Appelez-nous	-
7	8211837		Motor		Appelez-nous	-
8	8211843		Grommet, Motor		Appelez-nous	-
9	W10275585		Base, Housing		Appelez-nous	-
10	W10290865		Cover, Screw		Appelez-nous	-
11	8211829		Screw, Motor Locking		Appelez-nous	-
12	W10249232		Bezel, Switch Panel		Appelez-nous	-
13	8211607		Clip, Capacitor		Appelez-nous	-
14	W10290866		Overlay W/cover		Appelez-nous	-
15	W10290867		Nameplate		Appelez-nous	-
16	8211608		Capacitor				$ 59.18
17	8212090		Relay/switch Assy		Appelez-nous	-
18	8211845		Foot				$ 5.83
19	8211857		Cord, Power		Appelez-nous	-
20	8211605		Block, Terminal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
