SELECT A DIAGRAM

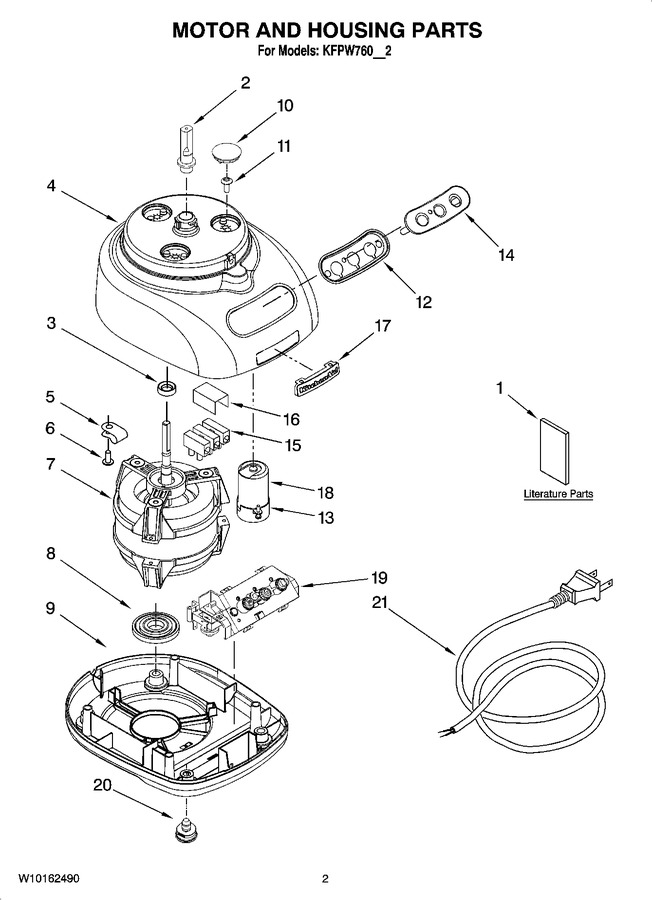

01 - Motor And Housing Parts


02 - Attachment Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10162490		Repair Parts List		Appelez-nous	-
1	8211864		Use & Care Guide		Appelez-nous	-
2	8211849		Sleeve, Motor Shaft				$ 5.83
3	8211828		Seal, Oil				$ 33.19
4	8212238		Housing, Motor (onyx Black)				$ 51.97
4	8212184		Housing, Motor (white)				$ 57.74
4	8212236		Housing, Motor (empire Red)		Appelez-nous	-
4	8212285		Housing, Motor (gloss Cinnamon)		Appelez-nous	-
4	8212284		Housing, Motor (blue Willow)		Appelez-nous	-
5	2185825		Clamp, Cable   (Replaces: 8211610)		Appelez-nous	-
6	8211731		Screw, Clamp		Appelez-nous	-
7	W10163676		Motor		Appelez-nous	-
8	8212188		Grommet, Motor		Appelez-nous	-
9	8212283		Base, Housing (gloss Cinnamon)		Appelez-nous	-
9	8212187		Base, Housing (empire Red)		Appelez-nous	-
9	8212190		Base, Housing (onyx Black)		Appelez-nous	-
9	8212183		Base, Housing (white)		Appelez-nous	-
9	8212282		Base, Housing (blue Willow)		Appelez-nous	-
10	8212193		Cover, Screw (onyx Black)		Appelez-nous	-
10	8212287		Cover, Screw (gloss Cinnamon)		Appelez-nous	-
10	8212286		Cover, Screw (blue Willow)		Appelez-nous	-
10	8212191		Cover, Screw (red)				$ 20.16
10	8212185		Cover, Screw (white)		Appelez-nous	-
11	8211829		Screw, Motor Locking		Appelez-nous	-
12	8211848		Bezel, Switch Panel		Appelez-nous	-
13	8211607		Clip, Capacitor		Appelez-nous	-
14	8211847		Overlay, Switch Assembly (silver)		Appelez-nous	-
15	8211605		Terminal Block		Appelez-nous	-
16	8211852		Cover, Terminal		Appelez-nous	-
17	8211842		Nameplate		Appelez-nous	-
18	8211608		Capacitor				$ 59.18
19	8212011		Relay & Switch Assembly				$ 48.91
20	8211845		Foot (black)				$ 5.83
20	8211844		Foot (white)		Appelez-nous	-
21	W10451329		Cord, Power (white)   (Replaces: 8211856)				$ 32.10
21	W10451329		Cord, Power (black)   (Replaces: 8211855)				$ 32.10

    View Diagram in Separate Window       Print Part List
