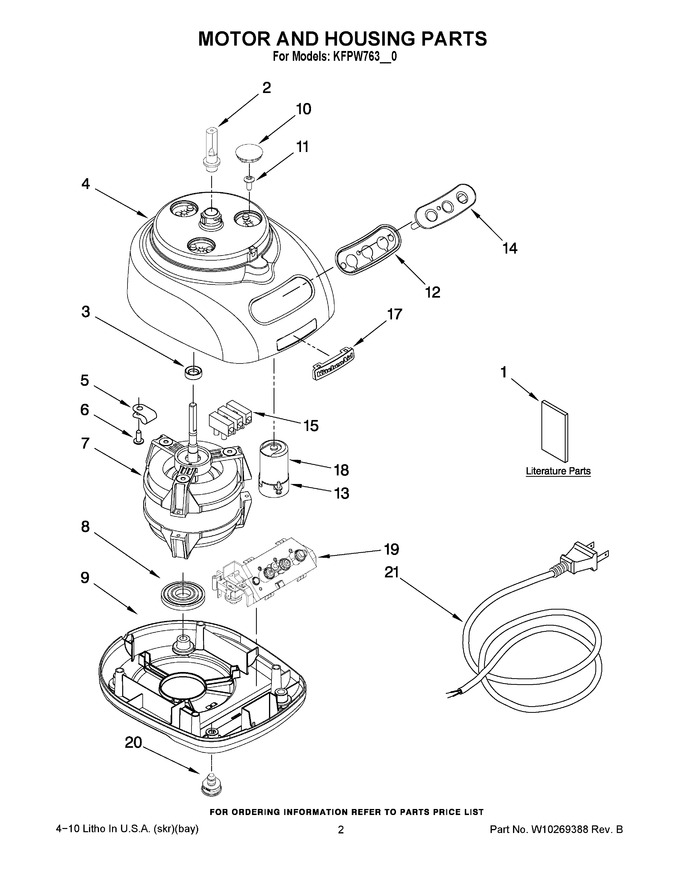

01 - Motor And Housing Parts
02 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10290862 | Use & Care Guide |
|
- | |||||
| 1 | W10269388 | Repair Parts List |
|
- | |||||
| 2 | W10187053 | Sleeve, Motor Shaft |
|
$ 5.83 | |||||
| 3 | 8211828 | Seal, Oil |
|
$ 33.19 | |||||
| 4 | W10290864 | Housing, Motor (cocoa Silver) |
|
- | |||||
| 4 | 8212238 | Housing, Motor (onyx Black) |
|
$ 51.97 | |||||
| 5 | 2185825 | Clamp, Cable (Replaces: 8211610) |
|
- | |||||
| 6 | 8211731 | Screw, Clamp |
|
- | |||||
| 7 | W10163676 | Motor |
|
- | |||||
| 8 | 8212188 | Grommet, Motor |
|
- | |||||
| 9 | W10275585 | Base, Housing (black) |
|
- | |||||
| 10 | 8212193 | Cover, Screw (onyx Black) |
|
- | |||||
| 10 | W10290865 | Cover, Screw (dark Taupe) |
|
- | |||||
| 11 | 8211829 | Screw, Motor Locking |
|
- | |||||
| 12 | 8211848 | Bezel, Switch Panel |
|
- | |||||
| 13 | 8211607 | Clip, Capacitor |
|
- | |||||
| 14 | W10290866 | Overlay, Switch Assembly (black) |
|
- | |||||
| 15 | 8211605 | Terminal Block |
|
- | |||||
| 17 | W10290867 | Nameplate (architect) |
|
- | |||||
| 17 | 8211842 | Nameplate (black Unit Only) |
|
- | |||||
| 18 | 8211608 | Capacitor |
|
$ 59.18 | |||||
| 19 | 8212090 | Relay & Switch Assembly |
|
- | |||||
| 20 | 8211845 | Foot (black) |
|
$ 5.83 | |||||
| 21 | W10451329 | Cord, Power (black) (Replaces: 8211855) |
|
$ 32.10 |
