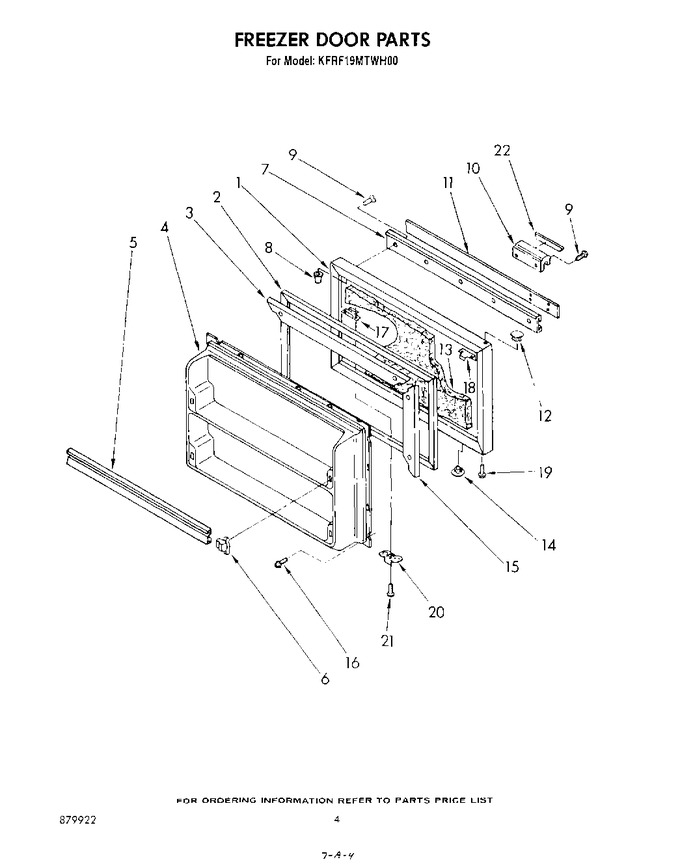

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110340		Door, Freezer (also Order Item 13) (toast)		Appelez-nous	-
1	1110341		Door, Freezer (also Order Item 13) (platinum)		Appelez-nous	-
1	1110337		Door, Freezer (also Order Item 13) (white)		Appelez-nous	-
1	1110339		Door, Freezer (also Order Item 13) (almond)		Appelez-nous	-
2	986016		Gasket, Freezer Door		Appelez-nous	-
3	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
4	1107362		Panel, Interior Door		Appelez-nous	-
5	1107367		Trim, Door Shelf (2)		Appelez-nous	-
6	1107300		Retainer, Door Trim (4)		Appelez-nous	-
7	936666		Trim, Handle Door		Appelez-nous	-
8	509929		Cap, Hinge Sleeve		Appelez-nous	-
9	489251		Screw, 8.18 X 3/4		Appelez-nous	-
10	936664		Handle, Door		Appelez-nous	-
11	1117552		Insert, Trim Handle		Appelez-nous	-
12	WP2212648		Plug, Hole (white)   (Replaces: 844478)			Immediately	$ 7.80
12	989196		Plug, Hole (almond)		Appelez-nous	-
12	1100188		Hole Plug (toast)		Appelez-nous	-
12	1100189		Hole Plug (platinum)		Appelez-nous	-
13	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
14	534927		Plug, Hole (2)		Appelez-nous	-
15	986015		Retainer, Gasket (side) (2)		Appelez-nous	-
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
17	943185		Plate, Tap (2)		Appelez-nous	-
18	WP939101		Tap Plate, Handle   (Replaces: 939101)				$ 7.50
19	489221		Screw (repair)		Appelez-nous	-
19	WP488921		Screw   (Replaces: 489224)			Immediately	$ 7.75
20	1107202		Bracket, Door Stop		Appelez-nous	-
21	WP488921		Screw   (Replaces: 489220)			Immediately	$ 7.75
21	489221		Screw (repair)		Appelez-nous	-
22	1117550		Insert, Handle Door		Appelez-nous	-
