SELECT A DIAGRAM
01 - Color Variation Parts

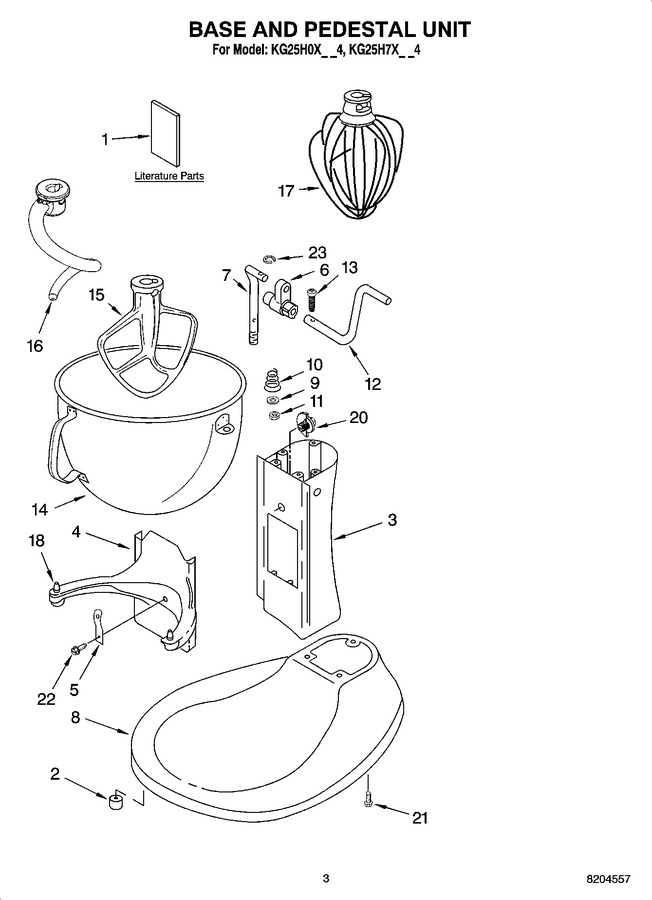

02 - Base And Pedestal Unit
03 - Case, Gearing And Planetary Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8204557 | Repair Parts List |
|
- | |||||
| 1 | 9708307 | Use & Care Guide |
|
- | |||||
| 2 | WP9708649 | Foot, Rubber (5) (Replaces: 9708649) |
|
Immediately | $ 4.79 | ||||
| 5 | WPW10504114 | Latch, Bowl Spring (Replaces: 9703474) |
|
Immediately | $ 5.14 | ||||
| 6 | WP9706885 | Arm, Bowl Lift (Replaces: 9706885) |
|
Immediately | $ 5.17 | ||||
| 7 | W11775238 | Rod, Bowl Lift (Replaces: 9706787) |
|
$ 5.73 | |||||
| 9 | W11708395 | Washer (Replaces: 9703439) |
|
$ 4.47 | |||||
| 10 | 4159622 | Spring (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 11 | 8533907 | Nut |
|
$ 24.83 | |||||
| 12 | W11778321 | Handle, Bowl Lift (Replaces: 9706788) |
|
$ 24.01 | |||||
| 13 | WP3400814 | Screw (Replaces: 3400863) |
|
$ 4.62 | |||||
| 14 | WPW10716820 | Bowl, 5 Qt. (Replaces: 9707678) |
|
$ 120.30 | |||||
| 15 | 240235-4 | Beater, Flat |
|
- | |||||
| 16 | W11319616 | Dough Hook (Replaces: 9708265) |
|
$ 45.29 | |||||
| 17 | WPW10731415 | Wire Whip (Replaces: 9704309) |
|
Immediately | $ 37.93 | ||||
| 18 | WP240185 | Pin, Bowl Locating (Replaces: 240185) |
|
$ 4.50 | |||||
| 20 | W11721849 | Cam, Adjusting (Replaces: 9703426) |
|
$ 6.08 | |||||
| 21 | W10913677 | Screw (3) 1/4 - 20 X 3/4 (Replaces: 3400200) |
|
$ 4.64 | |||||
| 22 | W10861883 | Screw, 10-24 X 1/2 (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 23 | WP9703307 | Clip (Replaces: 9703307) |
|
Immediately | $ 4.42 |
