SELECT A DIAGRAM

01 - Color Variation Parts


02 - Base And Pedestal Unit

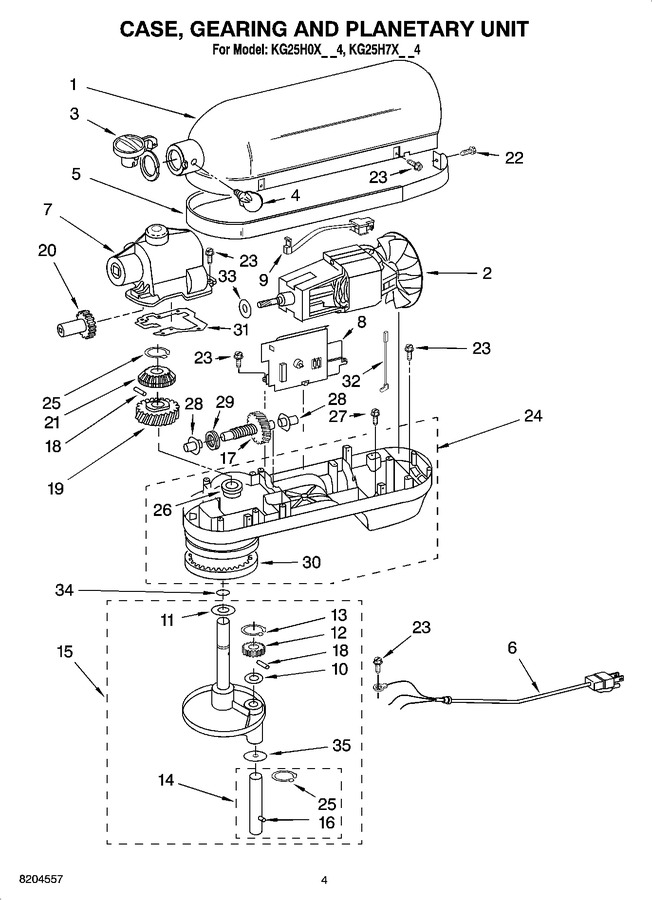

03 - Case, Gearing And Planetary Unit, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WPW10247536		Motor (10 Tooth)   (Replaces: 9707507)			Immediately	$ 125.65
3	W11123129		Cap, Attachment Hub (hinged)   (Replaces: 9703315)				$ 19.69
4	WP9709194		Thumb Screw   (Replaces: 9709194)			Immediately	$ 20.14
6	W11359748		Power Cord (white)   (Replaces: 9706551)				$ 39.83
6	W11728151		Power Cord (black)   (Replaces: 9706552)				$ 19.61
7	8212396		Transmission Housing   (Replaces: 9703671)			Immediately	$ 62.13
8	WP9706648		Control Assembly   (Replaces: 9706648)			Immediately	$ 109.97
9	WP9706648		Sensor, Hall Effect   (Replaces: 9703312)			Immediately	$ 109.97
10	WP9706090		Washer   (Replaces: 9706090)				$ 5.04
11	W11084660		Washer, Fiber   (Replaces: 9703434)			Immediately	$ 4.94
12	W11133646		Gear, Pinion   (Replaces: 9707627)			Immediately	$ 8.47
13	WP9703438		Retaining Clip   (Replaces: 9703438)			Immediately	$ 4.60
14	WP9708191		Agitator Shaft Assembly   (Replaces: 9708191)			Immediately	$ 17.84
16	W11664709		Pin, Groove   (Replaces: 9704677)			Immediately	$ 6.75
17	WP9709231		Worm Gear   (Replaces: 9709231)			Immediately	$ 55.55
18	WP9707223		Retaining Pin   (Replaces: 9707223)			Immediately	$ 5.08
19	W11086780		Gear, Worm Follower   (Replaces: 9706529)			Immediately	$ 19.02
20	W11192795		Gear, Attachment Hub Bevel   (Replaces: 9703338)			Immediately	$ 23.38
21	W11192795		Gear, Bevel   (Replaces: 9703337)			Immediately	$ 23.38
22	WP3196170		Screw, 6-32 X 1/4   (Replaces: 3400617)				$ 7.55
23	WP3400814		Screw (13), 8-32 X 5/8   (Replaces: 3400814)				$ 4.62
25	WP9703680		Retaining Clip   (Replaces: 9703680)			Immediately	$ 4.99
26	WP16897		Bearing, Lower Center   (Replaces: 16897)			Immediately	$ 5.10
27	W10913677		Screw (3) 1/4 - 20 X 3/4   (Replaces: 3400200)				$ 4.64
28	WPW10170081		Bearing (rear)   (Replaces: 9703570)			Immediately	$ 5.14
28	WPW10170080		Bearing (front)   (Replaces: 9703560)			Immediately	$ 5.14
29	WP9703445		Thrust Bearing   (Replaces: 9703445)			Immediately	$ 9.26
30	W11181966		Gear, Internal   (Replaces: 9703339)				$ 14.82
31	8212396		Gasket, Transmission Cover   (Replaces: 9707425)			Immediately	$ 62.13
32	9706036		Lead, Motor To Control				$ 25.99
33	WP9706247		Seal, Motor Shaft   (Replaces: 9706247)			Immediately	$ 4.84
34	WP67500-55		O-ring   (Replaces: 67500-55)			Immediately	$ 4.52
35	W10854966		Washer   (Replaces: 8533910)				$ 4.94
	4164749		Food Grinder (fg-a)		Appelez-nous	-
	8212519		Ice Cream Attach (kica0wh0)		Appelez-nous	-
	4164768		Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a)		Appelez-nous	-
	8211924		Grain Mill, Kgma		Appelez-nous	-
	4164778		Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a))		Appelez-nous	-
	4164824		Pasta Maker Plates Snpa		Appelez-nous	-
	RVSA		Rotor Slicer/shredder(with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin Slicer (rvsa)   (Replaces: 4164750)				$ 115.50
	FVSP		Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp)   (Replaces: 4164775)				$ 117.81
	9708348		Measuring Spoons		Appelez-nous	-
	9706987		Spatula (white)		Appelez-nous	-
	W11200218		Grease, Planetary   (Replaces: 4160588)			Immediately	$ 86.08
	4164803		Sausage Stuffer, Kit, Ssa		Appelez-nous	-
	4164747		Can Opener, Co		Appelez-nous	-
	4164748		Juicer, Je		Appelez-nous	-
	4162838		Food Tray (ft)		Appelez-nous	-
	4164774		Fruit/vegetable Strainer And Food Grinder, Fvs/fga		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
