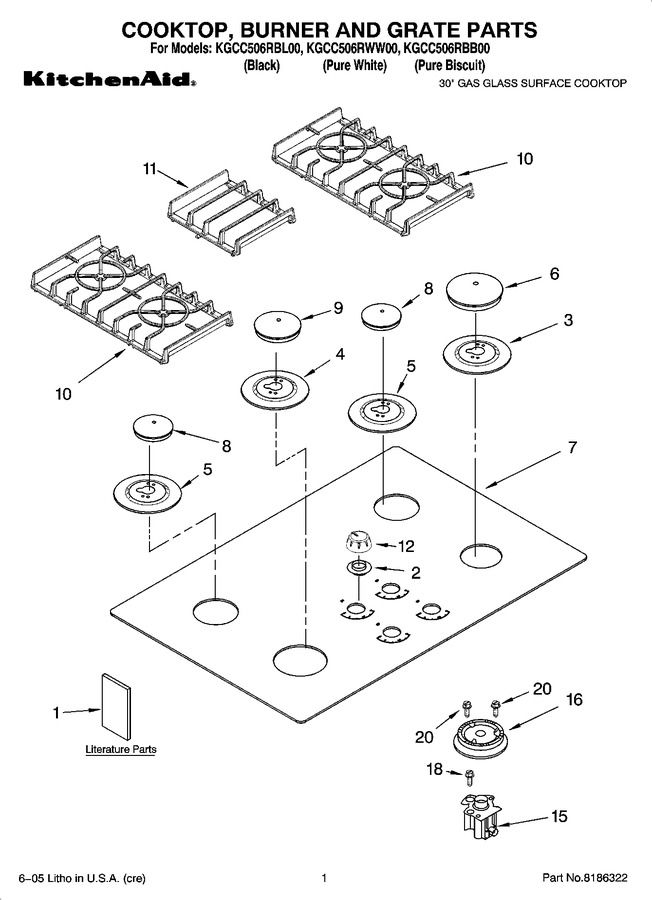

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286305 | Use & Care Guide |
|
- | |||||
| 1 | 9759133 | Safecooking Tips |
|
- | |||||
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | 8286304 | Installation Instructions |
|
- | |||||
| 1 | 8286314 | Conversion Instructions |
|
- | |||||
| 2 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 8.63 | |||||
| 2 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 8.84 | ||||
| 2 | 3191817 | Grommet, Glass (biscuit) |
|
- | |||||
| 3 | 9753601CG | Bezel, Cooktop (rf) (cumberland Grey) |
|
$ 129.08 | |||||
| 3 | 9753601BL | Bezel, Cooktop (rf) (black) |
|
$ 28.59 | |||||
| 3 | 9753601MS | Bezel, Cooktop (rf) (moleskin) |
|
- | |||||
| 4 | 8285779CG | Bezel, Cooktop (lf) (cumberland Grey) |
|
$ 130.41 | |||||
| 4 | 8285779BL | Bezel, Cooktop (lf) (black) |
|
$ 130.17 | |||||
| 4 | 8285779MS | Bezel, Cooktop (lf) (moleskin) |
|
- | |||||
| 5 | 9753602BL | Bezel, Cooktop (lr, Rr) (black) |
|
$ 69.60 | |||||
| 5 | 9753602MS | Bezel, Cooktop (lr, Rr) (moleskin) |
|
- | |||||
| 5 | 9753602CG | Bezel, Cooktop (lr, Rr) (cumberland Grey) |
|
$ 69.88 | |||||
| 6 | WP8286153CG | Cap, (rf) (cumberland Grey) (Replaces: 8286153CG) |
|
$ 87.56 | |||||
| 6 | 8286153MS | Cap, (rf) (moleskin) |
|
- | |||||
| 6 | WP8286153CB | Cap, (rf) (black) (Replaces: 8286153BL) |
|
$ 72.29 | |||||
| 7 | 8186526 | Cooktop, Glass (biscuit) (Replaces: 8286170) |
|
- | |||||
| 7 | 8286171 | Cooktop, Glass (white) |
|
- | |||||
| 7 | W10564558 | Cooktop, Glass (black) (Replaces: 8286169) |
|
$ 894.93 | |||||
| 8 | 8286155MS | Cap, (rr) (lr) (moleskin) |
|
- | |||||
| 8 | WP8286155CG | Cap, (rr) (lr) (cumberland Grey) (Replaces: 8286155CG) |
|
$ 106.63 | |||||
| 8 | WP8286155CB | Cap, (rr) (lr) (black) (Replaces: 8286155BL) |
|
$ 122.15 | |||||
| 9 | 8286156MS | Cap, (lf) (moleskin) |
|
- | |||||
| 9 | WP8286156CB | Cap, (lf) (black) (Replaces: 8286156BL) |
|
$ 124.77 | |||||
| 9 | 8286156CG | Cap, (lf) (cumberland Grey) |
|
$ 134.06 | |||||
| 10 | W11502175 | Grate, Burner (black) (Replaces: 8285879BL) |
|
$ 254.35 | |||||
| 10 | W11242860 | Grate, Burner (cumberland Grey) (Replaces: 8285879CG) |
|
$ 278.86 | |||||
| 10 | 8285879MS | Grate, Burner (moleskin) |
|
- | |||||
| 11 | W11242858 | Grate, Center (cumberland Grey) (Replaces: 8285880CG) |
|
$ 306.45 | |||||
| 11 | W11242862 | Grate, Center (black) (Replaces: 8285880BL) |
|
$ 193.82 | |||||
| 11 | 8285880MS | Grate, Center (moleskin) |
|
- | |||||
| 12 | 8286094WH | Knob, Control (4) (white) |
|
$ 34.69 | |||||
| 12 | 8286094BT | Knob, Control (4) (biscuit) |
|
$ 11.05 | |||||
| 12 | WP8286094BL | Knob, Control (4) (black) (Replaces: 8286094BL) |
|
Immediately | $ 29.55 | ||||
| 15 | WPW10128445 | Holder, Orifice (ultra Rapid) (Replaces: 8286177) |
|
$ 119.10 | |||||
| 15 | WPW10128450 | Holder, Orifice (semi Rapid) (Replaces: 8286178) |
|
$ 124.35 | |||||
| 15 | WPW10128451 | Holder, Orifice (rapid) (Replaces: 8286180) |
|
$ 116.43 | |||||
| 15 | WPW10128448 | Holder, Orifice (auxiliary) (Replaces: 8286179) |
|
Immediately | $ 117.30 | ||||
| 16 | WPW10406797 | Head, Burner (lr - Rr) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 16 | WPW10406243 | Head, Burner (rf) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 16 | WPW10406878 | Head, Burner (lf) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 20 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3368921) |
|
Immediately | $ 8.56 |
