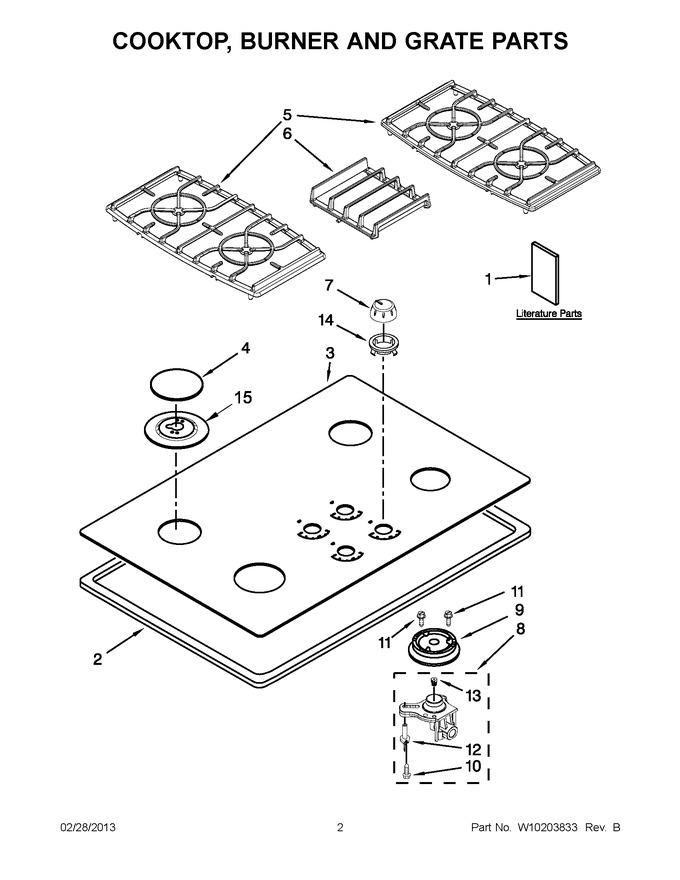

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves And Switches
03 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286620 | Instructions, Lp Conversion |
|
- | |||||
| 1 | W10162188 | Use & Care Guide |
|
- | |||||
| 1 | 8286304 | Installation Instructions |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | 8304571 | Instructions, Undercounter |
|
- | |||||
| 2 | 3191932 | Seal, Foam |
|
- | |||||
| 3 | W10564558 | Cooktop (black) (Replaces: W10141011) |
|
$ 894.93 | |||||
| 3 | 8286171 | Cooktop (white) |
|
- | |||||
| 4 | WP8286156CB | Cap, Burner (coal Black (left Front)) (Replaces: 8286156CB) |
|
$ 124.77 | |||||
| 4 | WP8286155CB | Cap, Burner (coal Black (right Front)) (Replaces: 8286155CB) |
|
$ 122.15 | |||||
| 4 | 8286156CG | Cap, Burner (cumberland Grey (left Front)) |
|
$ 134.06 | |||||
| 4 | WP8286153CB | Cap, Burner (coal Black (right Rear)) (Replaces: 8286153CB) |
|
$ 72.29 | |||||
| 4 | WP8286154CG | Cap, Burner (cumberland Grey (left Rear)) (Replaces: 8286154CG) |
|
$ 101.47 | |||||
| 4 | WP8286154CB | Cap, Burner (coal Black (left Rear)) (Replaces: 8286154CB) |
|
$ 90.93 | |||||
| 4 | WP8286155CG | Cap, Burner (cumberland Grey (right Front)) (Replaces: 8286155CG) |
|
$ 106.63 | |||||
| 4 | WP8286153CG | Cap, Burner (cumberland Grey (right Rear)) (Replaces: 8286153CG) |
|
$ 87.56 | |||||
| 5 | W11242860 | Grate, Burner (cumberland Grey) (Replaces: 8285879CG) |
|
$ 278.86 | |||||
| 5 | W11502175 | Grate, Burner (coal Black) (Replaces: 8285879CB) |
|
$ 254.35 | |||||
| 6 | W11242858 | Grate, Center (cumberland Grey) (Replaces: 8285880CG) |
|
$ 306.45 | |||||
| 6 | W11242862 | Grate, Center (coal Black) (Replaces: 8285880CB) |
|
$ 193.82 | |||||
| 7 | WP8286094BL | Knob, Control (black) (Replaces: 8286094BL) |
|
Immediately | $ 29.55 | ||||
| 7 | 8286094WH | Knob, Control (white) |
|
$ 34.69 | |||||
| 8 | WPW10128450 | Assembly, Orifice Holder (left Rear) (Replaces: W10128450) |
|
$ 124.35 | |||||
| 8 | WPW10128448 | Assembly, Orifice Holder (right Rear) (Replaces: W10128448) |
|
Immediately | $ 117.30 | ||||
| 8 | WPW10128451 | Assembly, Orifice Holder (right Front) (Replaces: W10128451) |
|
$ 116.43 | |||||
| 8 | WPW10128445 | Assembly, Orifice Holder (left Front) (Replaces: W10128445) |
|
$ 119.10 | |||||
| 9 | WPW10406878 | Burner Head, Ultra Rapid (17k) (left Front) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 9 | WPW10406283 | Burner Head, Semi (left Rear) (Replaces: 8286184) |
|
$ 78.02 | |||||
| 9 | WPW10406243 | Burner Head, Auxiliary (6k) (right Rear) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 9 | WPW10406797 | Burner Head, Rapid (12k) (right Front) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 12 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 54.94 | ||||
| 13 | 8286474 | Orifice (left Front) |
|
$ 94.53 | |||||
| 13 | WP3192529 | Orifice (right Rear) (Replaces: 3192529) |
|
$ 100.74 | |||||
| 13 | WP3192523 | Orifice (left Rear) (Replaces: 3192523) |
|
$ 93.56 | |||||
| 13 | 8286551 | Orifice (right Front) |
|
$ 104.95 | |||||
| 14 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 8.63 | |||||
| 14 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 8.84 | ||||
| 15 | 8285779CG | Bezel (grey (17k) (left Front)) |
|
$ 130.41 | |||||
| 15 | 9753601BL | Bezel (black (6k) (right Rear)) |
|
$ 28.59 | |||||
| 15 | 9753602BL | Bezel (black (12k) (left Rear & Right Front)) |
|
$ 69.60 | |||||
| 15 | 8285779BL | Bezel (black (17k) (left Front)) |
|
$ 130.17 | |||||
| 15 | 9753601CG | Bezel (grey (6k) (right Rear)) |
|
$ 129.08 | |||||
| 15 | 9753602CG | Bezel (grey (12k) (left Rear & Right Front)) |
|
$ 69.88 |
