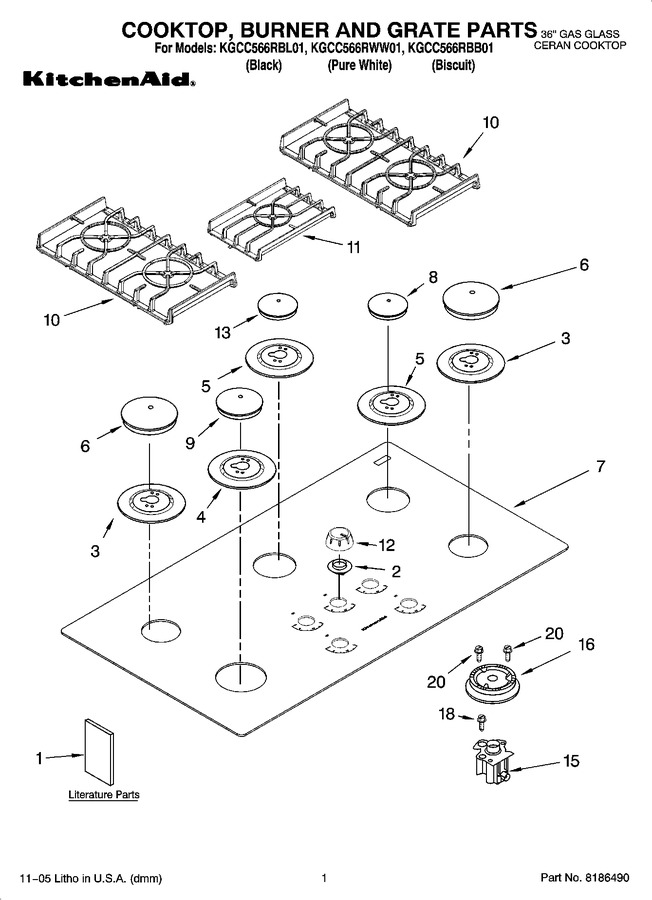

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286610		Use & Care Guide		Appelez-nous	-
1	8286620		L.p. Conversion Instructions		Appelez-nous	-
1	3192099		Wiring Diagram Safe Cooking Tips		Appelez-nous	-
1	8286304		Installation Instructions		Appelez-nous	-
1	3191638		English		Appelez-nous	-
1	9759133		French		Appelez-nous	-
2	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 8.63
2	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 8.84
2	3191817		Grommet, Glass (biscuit)		Appelez-nous	-
3	9753602CG		Bezel, Cooktop (rf) (lr) (cumberland Grey)				$ 69.88
3	9753602BL		Bezel, Cooktop (rf) (lr) (black)				$ 69.60
3	9753602MS		Bezel, Cooktop (rf) (lr) (moleskin)		Appelez-nous	-
4	8285779CG		Bezel, Cooktop (lf) (cumberland Grey)				$ 130.41
4	8285779BL		Bezel, Cooktop (lf) (black)				$ 130.17
4	8285779MS		Bezel, Cooktop (lf) (moleskin)		Appelez-nous	-
5	9753601BL		Bezel, Cooktop (rr) (center) (black)				$ 28.59
5	9753601MS		Bezel, Cooktop (rr) (center) (moleskin)		Appelez-nous	-
5	9753601CG		Bezel, Cooktop (rr) (center) (cumberland Grey)				$ 129.08
6	WP8286153CG		Cap, (rf) (lr) (cumberland Grey)   (Replaces: 8286153CG)				$ 87.56
6	8286153MS		Cap, (rf) (lr) (moleskin)		Appelez-nous	-
6	WP8286153CB		Cap, (rf) (lr) (coal Black)   (Replaces: 8286153CB)				$ 72.29
7	W10661512		Cooktop Glass (white)   (Replaces: 8286174)		Appelez-nous	-
7	W10661511		Cooktop Glass (black)   (Replaces: 8286172)		Appelez-nous	-
7	8286173		Cooktop Glass (biscuit)		Appelez-nous	-
8	8286154MS		Cap, (center) (moleskin)		Appelez-nous	-
8	WP8286154CG		Cap, (center) (cumberland Grey)   (Replaces: 8286154CG)				$ 101.47
8	WP8286154CB		Cap, (center) (coal Black)   (Replaces: 8286154CB)				$ 90.93
9	WP8286156CB		Cap, (lf) (coal Black)   (Replaces: 8286156CB)				$ 124.77
9	8286156CG		Cap, (lf) (cumberland Grey)				$ 134.06
9	8286156MS		Cap, (lf) (moleskin)		Appelez-nous	-
10	W11502175		Grate, Burner (black)   (Replaces: 8285879CB)				$ 254.35
10	W11242860		Grate, Burner (cumberland Grey)   (Replaces: 8285879CG)				$ 278.86
10	8285879MS		Grate, Burner (moleskin)		Appelez-nous	-
11	8285881CG		Grate, Center (cumberland Grey)		Appelez-nous	-
11	8285881MS		Grate, Center (moleskin)		Appelez-nous	-
11	W11242859		Grate, Center (black)   (Replaces: 8285881CB)				$ 258.79
12	WP8286094BL		Knob, Control (4) (black)   (Replaces: 8286094BL)			Immediately	$ 29.55
12	8286094WH		Knob, Control (4) (white)				$ 34.69
12	8286094BT		Knob, Control (4) (biscuit)				$ 11.05
13	8286155MS		Cap, (rr) (moleskin)		Appelez-nous	-
13	WP8286155CB		Cap, (rr) (coal Black)   (Replaces: 8286155CB)				$ 122.15
13	WP8286155CG		Cap, (rr) (cumberland Grey)   (Replaces: 8286155CG)				$ 106.63
15	WPW10128451		Holder, Orifice (rapid)   (Replaces: 8286180)				$ 116.43
15	WPW10128445		Holder, Orifice (ultra Rapid)   (Replaces: 8286177)				$ 119.10
15	WPW10128448		Holder, Orifice (auxi)   (Replaces: 8286179)			Immediately	$ 117.30
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286178)				$ 124.35
16	WPW10406797		Head, Burner (rapid)   (Replaces: 8286182)				$ 92.91
16	WPW10406283		Head, Burner (semi Rapid)   (Replaces: 8286184)				$ 78.02
16	WPW10406243		Head, Burner (auxi)   (Replaces: 8286181)			Immediately	$ 39.08
16	WPW10406878		Head, Burner (ultra Rapid)   (Replaces: 8286183)				$ 107.48
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56
