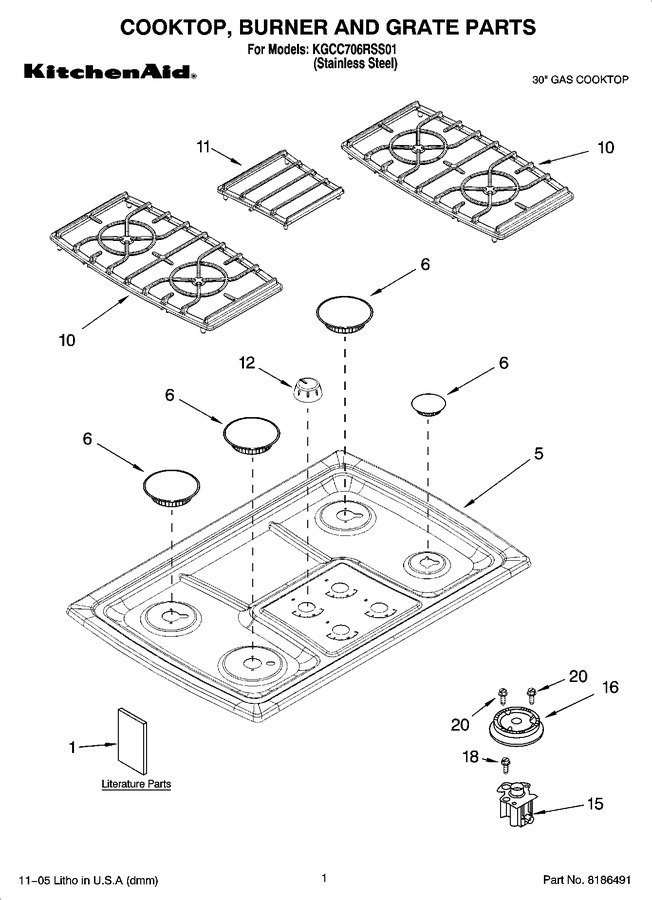

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3192098		Wiring Diagram Safe Cooking Tips		Appelez-nous	-
1	8286304		Installation Instructions		Appelez-nous	-
1	8286610		Use & Care Guide		Appelez-nous	-
1	8286620		L.p. Conversion Instructions		Appelez-nous	-
1	3191638		English		Appelez-nous	-
1	9759133		French		Appelez-nous	-
5	8285781CC		Cooktop		Appelez-nous	-
6	WP8286153CB		Cap (black, 6k)   (Replaces: 8286153CB)				$ 72.29
6	WP8286156CB		Cap (black, 17k)   (Replaces: 8286156CB)				$ 124.77
6	WP8286155CB		Cap (black, 12k)   (Replaces: 8286155CB)				$ 122.15
6	WP8286154CB		Cap (black, 9k)   (Replaces: 8286154CB)				$ 90.93
10	8285876CB		Grate, Burner				$ 99.26
11	WP8286452		Grommet   (Replaces: 8286452)				$ 9.53
11	8285877CB		Grate, Center				$ 87.95
12	8286094CM		Knob, Control (4)				$ 15.65
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286178)				$ 124.35
15	WPW10128445		Holder, Orifice (ultra Rapid)   (Replaces: 8286177)				$ 119.10
15	WPW10128451		Holder, Orifice (rapid)   (Replaces: 8286180)				$ 116.43
15	WPW10128448		Holder, Orifice (auxi)   (Replaces: 8286179)			Immediately	$ 117.30
16	WPW10406797		Head, Burner (12k)   (Replaces: 8286182)				$ 92.91
16	WPW10406243		Head, Burner (6k)   (Replaces: 8286181)			Immediately	$ 39.08
16	WPW10406283		Head, Burner (9k)   (Replaces: 8286184)				$ 78.02
16	WPW10406878		Head, Burner (turbi)   (Replaces: 8286183)				$ 107.48
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56
