SELECT A DIAGRAM

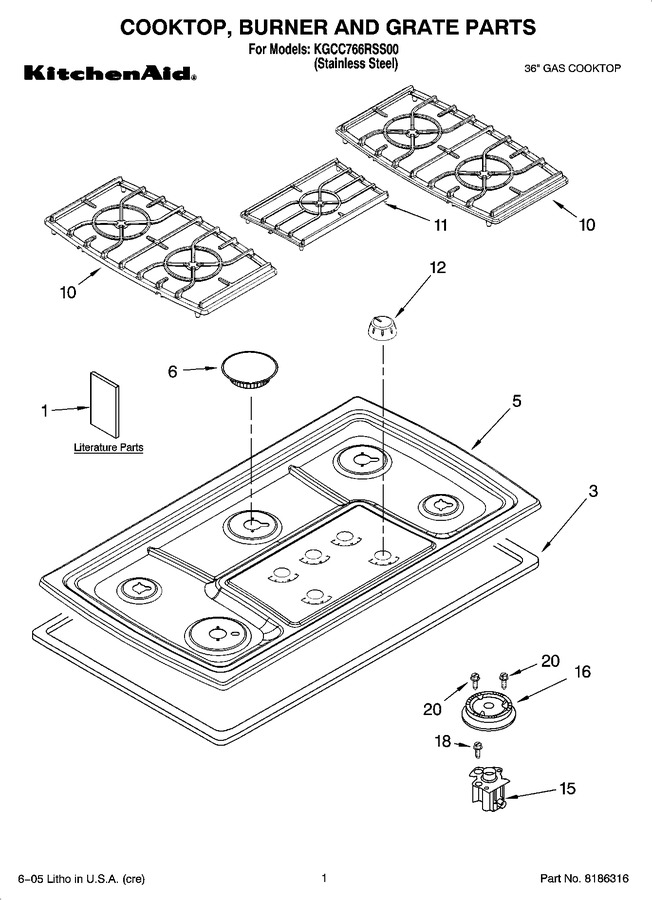

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286305		Use & Care Guide		Appelez-nous	-
1	3192099		Wiring Diagram		Appelez-nous	-
1	9759133		Safecooking Tips		Appelez-nous	-
1	8286314		Lp Conversion Instructions		Appelez-nous	-
1	8286304		Installation Instructions		Appelez-nous	-
3	9760279		Seal, Foam				$ 51.94
5	8286537		Cooktop		Appelez-nous	-
6	WP8286153CB		Cap (black, 6k)   (Replaces: 8286153BL)				$ 72.29
6	WP8286155CB		Cap (black, 12k)   (Replaces: 8286155BL)				$ 122.15
6	WP8286156CB		Cap (black, 17k)   (Replaces: 8286156BL)				$ 124.77
6	WP8286154CB		Cap (black, 9k)   (Replaces: 8286154BL)				$ 90.93
10	8285876BL		Grate, Burner		Appelez-nous	-
11	8285878BL		Grate, Filler		Appelez-nous	-
11	WP8286452		Grommet   (Replaces: 8286452)				$ 9.53
12	8286094CM		Knob, Control (4)				$ 15.65
15	WPW10128445		Holder, Orifice (ultra Rapid)   (Replaces: 8286177)				$ 119.10
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286178)				$ 124.35
15	WPW10128451		Holder, Orifice (rapid (2))   (Replaces: 8286180)				$ 116.43
15	WPW10128448		Holder, Orifice (auxi (2))   (Replaces: 8286179)			Immediately	$ 117.30
16	WPW10406878		Head, Burner (ultra Rapid)   (Replaces: 8286183)				$ 107.48
16	WPW10406797		Head, Burner (12k)   (Replaces: 8286182)				$ 92.91
16	WPW10406243		Head, Burner (6k) (2)   (Replaces: 8286181)			Immediately	$ 39.08
16	WPW10406283		Head, Burner (9k)   (Replaces: 8286184)				$ 78.02
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56

    View Diagram in Separate Window       Print Part List
