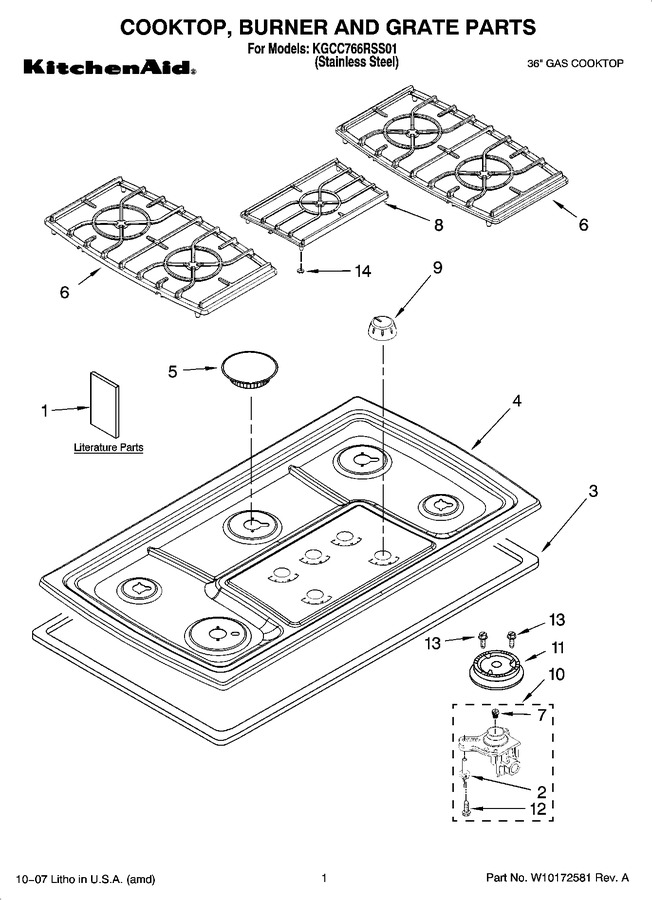

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10169072 | Use & Care Guide |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 8286620 | L.p. Conversion Instructions |
|
- | |||||
| 1 | W10131955 | Installation Instructions |
|
- | |||||
| 1 | 3192099 | Wiring Diagram |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 2 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 54.94 | ||||
| 3 | 9760279 | Seal, Foam |
|
$ 51.94 | |||||
| 4 | W10169223 | Cooktop |
|
- | |||||
| 5 | WP8286156CB | Cap, Burner (lf) (Replaces: 8286156CB) |
|
$ 124.77 | |||||
| 5 | WP8286153CB | Cap, Burner (lr, Rf) (Replaces: 8286153CB) |
|
$ 72.29 | |||||
| 5 | WP8286154CB | Cap, Burner (ctr) (Replaces: 8286154CB) |
|
$ 90.93 | |||||
| 5 | WP8286155CB | Cap, Burner (rr) (Replaces: 8286155CB) |
|
$ 122.15 | |||||
| 6 | 8285876CB | Grate, Burner |
|
$ 99.26 | |||||
| 7 | 8286474 | Orifice (lf) |
|
$ 94.53 | |||||
| 7 | 8287051 | Orifice (rr) |
|
- | |||||
| 7 | WP3192523 | Orifice (ctr) (Replaces: 3192523) |
|
$ 93.56 | |||||
| 7 | WP3192529 | Orifice (lr & Rf) (Replaces: 3192529) |
|
$ 100.74 | |||||
| 8 | 8285878CB | Grate, Filler |
|
$ 90.67 | |||||
| 9 | WP8286094BL | Knob, Control (4) (Replaces: 8286094BL) |
|
Immediately | $ 29.55 | ||||
| 10 | WPW10128450 | Holder, Orifice (ctr) (Replaces: W10128450) |
|
$ 124.35 | |||||
| 10 | 8287052 | Holder, Orifice (rr) |
|
$ 45.10 | |||||
| 10 | WPW10128448 | Holder, Orifice (lf) (Replaces: W10128448) |
|
Immediately | $ 117.30 | ||||
| 11 | WPW10406243 | Head, Burner (lr & Rf) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 11 | WPW10406878 | Head, Burner (lf) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 11 | WPW10406797 | Head, Burner (rr) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 11 | WPW10406283 | Head, Burner (ctr) (Replaces: 8286184) |
|
$ 78.02 | |||||
| 12 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 13 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 14 | WP8286452 | Grommet, Grate (Replaces: 8286452) |
|
$ 9.53 |
