01 - Cooktop Parts

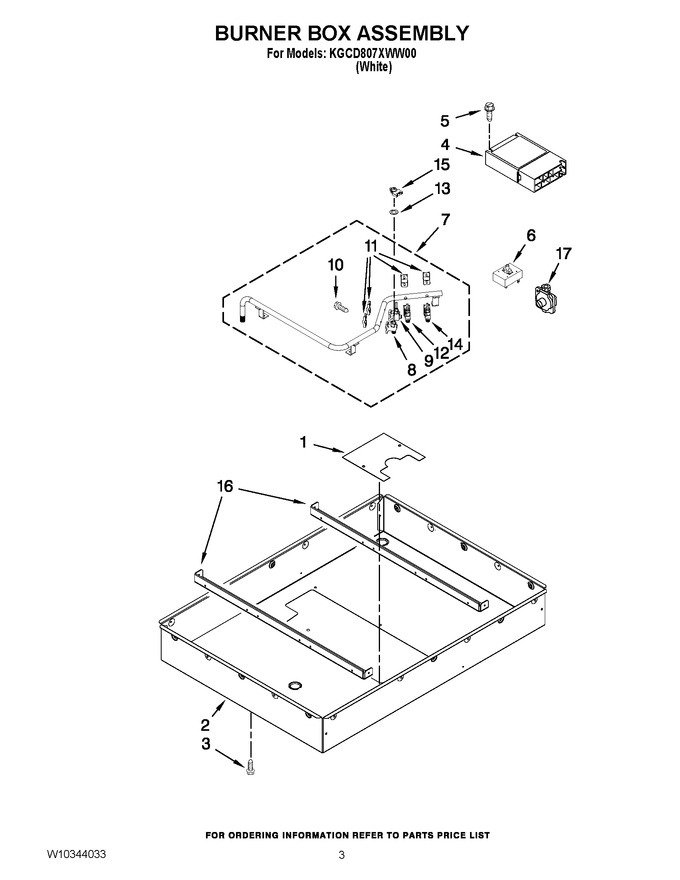

02 - Burner Box Assembly
03 - Blower Unit Parts
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7003P149-60 | Insulator, Baffle |
|
$ 26.87 | |||||
| 2 | W10324017 | Bottom, Burner |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 13.25 | ||||
| 4 | WP74010766 | Module, Spark (Replaces: 7431P057-60) |
|
Immediately | $ 328.91 | ||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 6 | WP74010783 | Switch, Rotary (Replaces: 7450P028-60) |
|
$ 135.69 | |||||
| 7 | WP74001380 | Seal, Manifold (Replaces: 7208P024-60) |
|
$ 61.86 | |||||
| 7 | 7513P421-60 | Pipe,manifold Asy. |
|
$ 215.64 | |||||
| 8 | 7502P507-60 | Valve, 9.2k |
|
- | |||||
| 9 | 7502P521-60 | Valve, 5k |
|
$ 185.42 | |||||
| 10 | WPW10001160 | Screw (Replaces: 7101P550-60) |
|
$ 9.30 | |||||
| 11 | 8405P028-60 | Bracket, Valve |
|
- | |||||
| 12 | 7502P520-60 | Valve, 9.2k |
|
- | |||||
| 13 | WP74010776 | Gasket (right) (Replaces: 7201P144-60) |
|
$ 66.87 | |||||
| 13 | WP74010652 | Gasket (left) (Replaces: 7201P135-60) |
|
$ 77.40 | |||||
| 14 | 7502P505-60 | Valve, 17k |
|
- | |||||
| 15 | WP74010857 | Switch, Spark (left) (Replaces: 7403P999-60) |
|
$ 149.74 | |||||
| 15 | WP74010858 | Switch, Spark (right) (Replaces: 7403P998-60) |
|
Immediately | $ 144.00 | ||||
| 16 | 8405P087-60 | Bracket, Brace |
|
- | |||||
| 17 | W11087445 | Regulator, Pressure (Replaces: 7510P093-60) |
|
Immediately | $ 190.26 |
