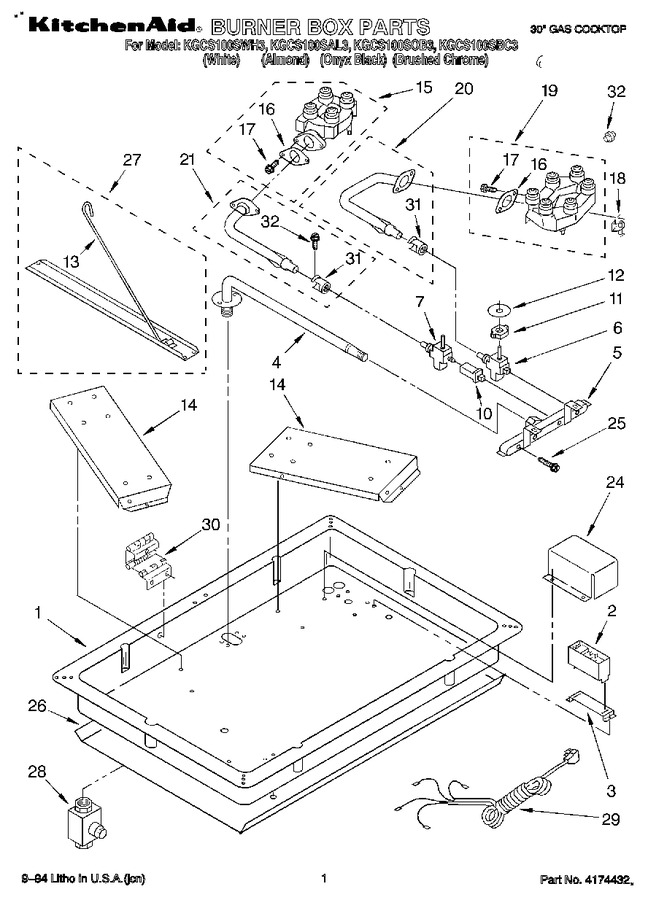

01 - Burner Box Parts


02 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186733		Box, Burner		Appelez-nous	-
2	3186576		Module, Spark Ignitor Wire		Appelez-nous	-
2	4175453		43``(2)   (Replaces: 3181451)			Immediately	$ 255.88
2	4175453		27`` (2)   (Replaces: 3181450)			Immediately	$ 255.88
3	4159448		Screw		Appelez-nous	-
3	4169250		Bracket, Spark Module		Appelez-nous	-
4	4169251		Manifold, Inlet		Appelez-nous	-
5	4169252		Manifold, Control		Appelez-nous	-
6	3178502		Valve, Daisy (bolt Thru) Left Front		Appelez-nous	-
6	4169255		Valve, Power Bolt Thru Right Front		Appelez-nous	-
7	3178503		Valve, Power Pipe Left Rear		Appelez-nous	-
7	4169254		Valve, Daisy Pipe Right Rear		Appelez-nous	-
10	4169257		Extension, Valve 1/8 Npt (2)		Appelez-nous	-
11	4168745		Switch, Valve (4)				$ 12.76
12	WP3188425		Washer, Rubber 5/16`` X 1 1/2`` (4)   (Replaces: 4166436)				$ 86.74
13	3178882		Rod, Top Support		Appelez-nous	-
14	4169262		Bracket, Burner Base (2)		Appelez-nous	-
14	4159465		Screw (4)		Appelez-nous	-
14	3178504		Bushing (4)		Appelez-nous	-
15	3178701		Daisy Burner (l.f. & R.r.)		Appelez-nous	-
16	4166263		Gasket, Venturi		Appelez-nous	-
17	4159323		Screw, Venturi		Appelez-nous	-
18	4175453		Ignitor, Direct Spark (4)   (Replaces: 3181448)			Immediately	$ 255.88
18	WP313808		Screw (4)   (Replaces: 4159457)				$ 7.47
19	3178700		Burner, Power (r.f. & L.r.)		Appelez-nous	-
20	4169268		Venturi Assembly (left Front)		Appelez-nous	-
20	4169267		Venturi Assembly (right Front)		Appelez-nous	-
21	4169270		Venturi Assembly (left Rear)		Appelez-nous	-
21	4169269		Venturi Assembly (right Rear)		Appelez-nous	-
24	4169271		Cover, Spark Module		Appelez-nous	-
24	WPW10068250		Screw (2)   (Replaces: 4159431)				$ 3.84
25	4169277		Bolt, Gas Valve		Appelez-nous	-
25	4159569		Washer (2)		Appelez-nous	-
26	4173093		Shield, Heat		Appelez-nous	-
26	4159465		Screw (4)		Appelez-nous	-
27	4159448		Screw (4)		Appelez-nous	-
27	4173101		Strut, Top Support		Appelez-nous	-
28	4167273		Regulator, Pressure		Appelez-nous	-
29	4169261		Cord, Power		Appelez-nous	-
30	4169248		Hinge, Cooktop (2)		Appelez-nous	-
30	WPW10068250		Screw (4)   (Replaces: 4159431)				$ 3.84
30	4159465		Screw (4)		Appelez-nous	-
31	4173100		Valve, Mixer		Appelez-nous	-
32	4169264		Lighter, Jet		Appelez-nous	-
32	4159460		Screw		Appelez-nous	-
	LIT3189132		Guide, Use & Care		Appelez-nous	-
	LIT3189086		Instructions, Installation		Appelez-nous	-
