SELECT A DIAGRAM

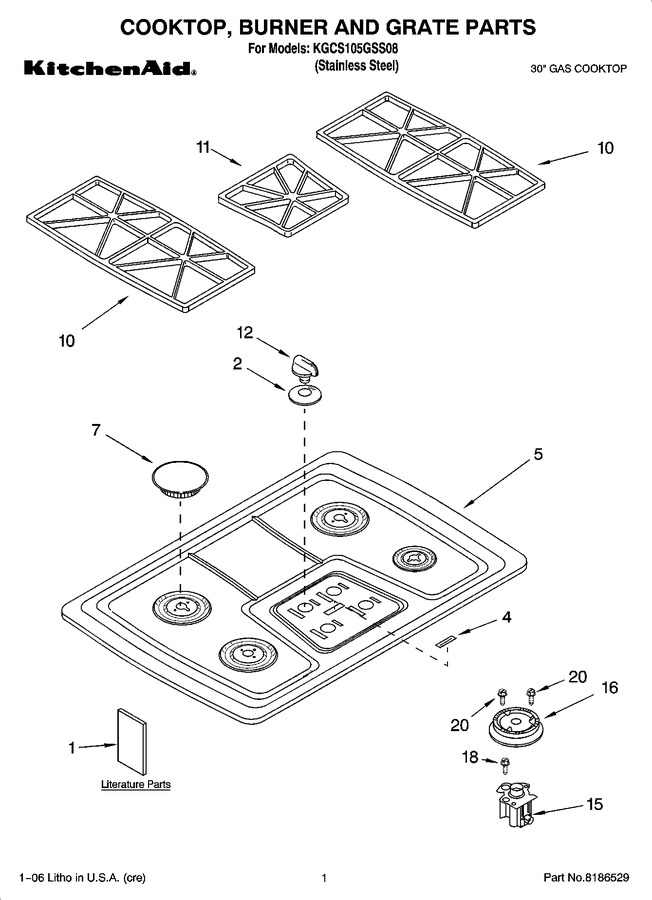

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455834		Installation Instructions		Appelez-nous	-
1	8286640		Use & Care Guide		Appelez-nous	-
1	3192098		Wiring Diagram		Appelez-nous	-
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	9759133		Safecooking Tips		Appelez-nous	-
1	9759440		L.p. Conversion Instructions		Appelez-nous	-
2	WP4457192		Collar, Knob   (Replaces: 4457192)				$ 60.82
4	3191514		Nameplate				$ 53.29
5	8285730		Cooktop		Appelez-nous	-
7	3192489		Cap (black, 14k)		Appelez-nous	-
7	WP8286155CB		Cap (black, 12k)   (Replaces: 8286155CB)				$ 122.15
7	WP8286154CB		Cap (black, 9k)   (Replaces: 8286154CB)				$ 90.93
7	WP8286153CB		Cap (black, 6k)   (Replaces: 8286153CB)				$ 72.29
10	WP9759505		Grate, Burner   (Replaces: 9759505)				$ 221.48
11	9759509		Grate, Filler				$ 76.71
12	WP3191922		Knob, Control (4)   (Replaces: 3191922)			Immediately	$ 7.55
15	WPW10128451		Holder, Orifice (rapid)   (Replaces: 8286180)				$ 116.43
15	WPW10155786		Holder, Orifice (turbi)   (Replaces: 4456622)			Immediately	$ 119.19
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286178)				$ 124.35
15	WPW10128448		Holder, Orifice (auxi)   (Replaces: 8286179)			Immediately	$ 117.30
16	4455849		Head, Burner (turbi)				$ 47.68
16	WPW10406797		Head, Burner ((rapid) 12k)   (Replaces: 8286182)				$ 92.91
16	WPW10406283		Head, Burner ((semi Rapid) 9k)   (Replaces: 8286184)				$ 78.02
16	WPW10406243		Head, Burner ((auxi) 6k)   (Replaces: 8286181)			Immediately	$ 39.08
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56

    View Diagram in Separate Window       Print Part List
