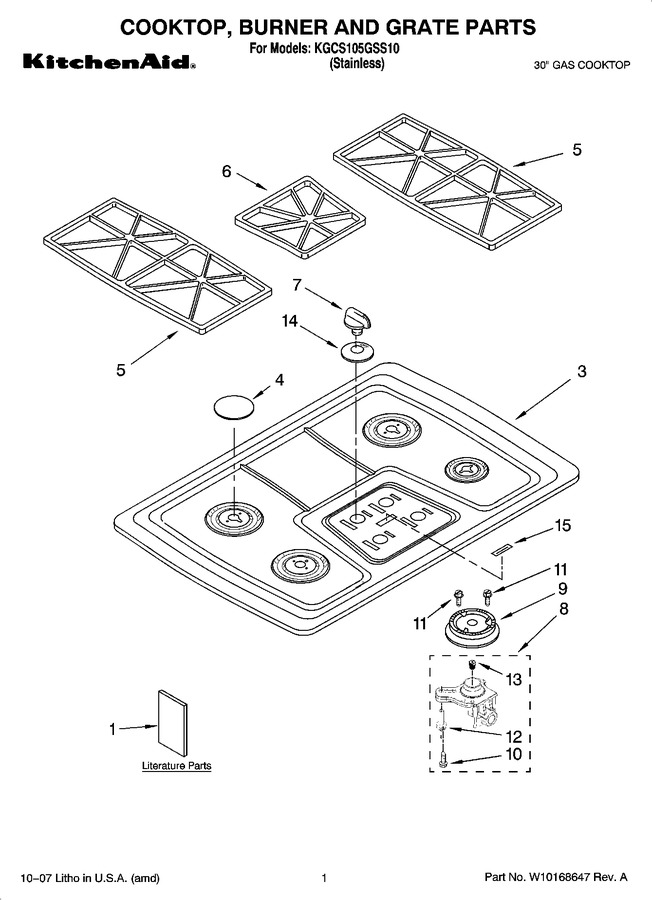

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8304571		Undercounter Installation		Appelez-nous	-
1	8286640		Use & Care Guide		Appelez-nous	-
1	3191638		Safe Cooking Tips (english)		Appelez-nous	-
1	9759133		Safe Cooking Tips (french)		Appelez-nous	-
1	W10131955		Installation Instructions		Appelez-nous	-
3	W10140179		Cooktop		Appelez-nous	-
4	WP8286153CB		Burner Caps (rf)   (Replaces: 8286153CB)				$ 72.29
4	WP8286154CB		Burner Caps (lr)   (Replaces: 8286154CB)				$ 90.93
4	WP8286155CB		Burner Caps (rr)   (Replaces: 8286155CB)				$ 122.15
4	3192489		Burner Caps (lf)		Appelez-nous	-
5	WP9759505		Grate, Burner   (Replaces: 9759505)				$ 221.48
6	9759509		Grate, Center				$ 76.71
7	WP3191922		Knob, Control   (Replaces: 3191922)			Immediately	$ 7.55
8	WPW10128448		Holder, Orifice (rf)   (Replaces: W10128448)			Immediately	$ 117.30
8	WPW10155786		Holder, Orifice (lf)   (Replaces: W10155786)			Immediately	$ 119.19
8	8287052		Holder, Orifice (rr)				$ 45.10
8	WPW10128450		Holder, Orifice (lr)   (Replaces: W10128450)				$ 124.35
9	WPW10406243		Head, Burner (rf)   (Replaces: 8286181)			Immediately	$ 39.08
9	4455849		Head, Burner ((lf))				$ 47.68
9	WPW10406797		Head, Burner (rr)   (Replaces: 8286182)				$ 92.91
9	WPW10406283		Head, Burner (lr)   (Replaces: 8286184)				$ 78.02
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
11	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56
12	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 54.94
13	3192525		Orifice (lf)				$ 38.58
13	WP3192529		Orifice (lr & Rf)   (Replaces: 3192529)				$ 100.74
13	WP3192523		Orifice (lr)   (Replaces: 3192523)				$ 93.56
14	WP4457192		Collar, Knob   (Replaces: 4457192)				$ 60.82
15	3191514		Nameplate				$ 53.29
