SELECT A DIAGRAM

Diagram for 01 - Cabinet Assy, Rear Panel & Power Cord
01 - Cabinet Assy, Rear Panel & Power Cord

Diagram for 02 - Clothes Drum & High Limit Thermostat
02 - Clothes Drum & High Limit Thermostat

Diagram for 03 - Control Panel & Controls
03 - Control Panel & Controls

Diagram for 04 - Door Sw/heating Elem & Safety Tstat
04 - Door Sw/heating Elem & Safety Tstat

Diagram for 05 - Loading Door
05 - Loading Door

Diagram for 06 - Motor & Drum Belt
06 - Motor & Drum Belt


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13627 Fan Appelez-nous -
2 Y00000000 See Note Ground Wire, Green Appelez-nous -
3 13622 Motor Appelez-nous -
4 13625 Bumper Appelez-nous -
5 13623 Belt,v-drum Special Order $ 20.43

6 13626 Pulley Special Order $ 47.63

7 13634 Fan Appelez-nous -
8 13629 Assy,idler Pulley Appelez-nous -
9 13628 Capacitor Appelez-nous -
10 13637 Relay Appelez-nous -
11 Y00000000 See Note Cabinet Assembly Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

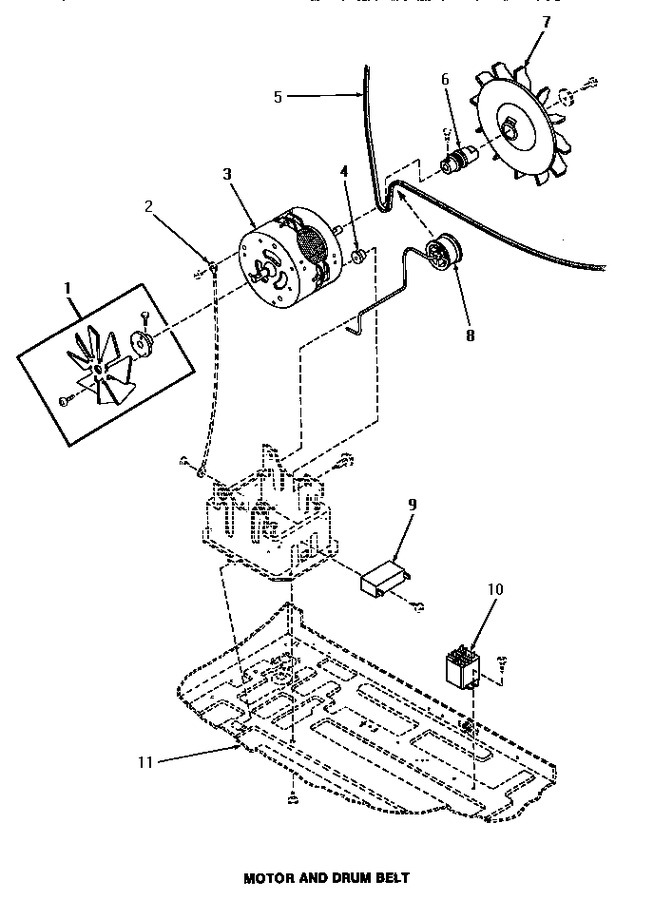

Diagram for ME8830
