SELECT A DIAGRAM

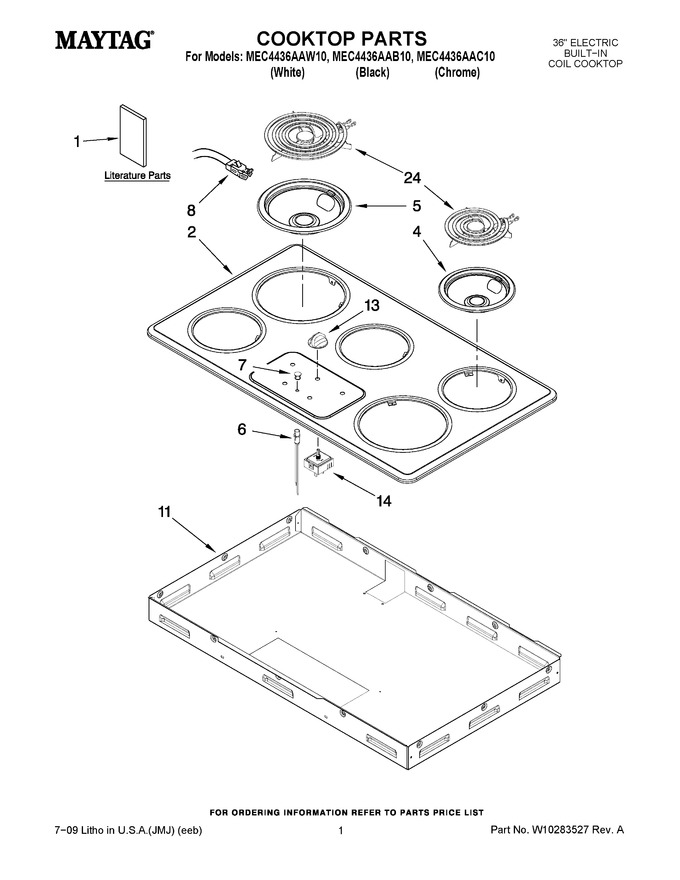

01 - Cooktop Parts


02 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P480-60		Installation Instructions (cooktop)		Appelez-nous	-
1	W10211158		Tech Sheet		Appelez-nous	-
1	8111P521-60		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
2	W10190602		Cooktop (white)		Appelez-nous	-
2	W10190603		Cooktop (chrome)		Appelez-nous	-
2	W10202532		Cooktop (black)		Appelez-nous	-
4	WPW10196406		Pan, Reflector 6``   (Replaces: 7725P053-60)			Immediately	$ 13.39
5	WPW10196405		Pan, Reflector 8``   (Replaces: 7725P054-60)			Immediately	$ 17.29
6	W10852510		Light, Indicator   (Replaces: 7407P102-60)				$ 123.80
7	W11690131		Lens, Indicator   (Replaces: 7730P012-60)				$ 7.85
8	814399		Receptacle (4)			Immediately	$ 43.19
11	4011F235-61		Box, Burner		Appelez-nous	-
13	WP74003373		Knob, Control (5) (white)   (Replaces: 7737P093-60)				$ 18.91
13	7737P092-60		Knob, Control (5) (black)		Appelez-nous	-
14	74011241		Switch, Inf. (5)   (Replaces: 7450P014-60)				$ 162.48
24	WP3191454		Element, Surface (2100w - 8`` (2))   (Replaces: 7406P478-60)				$ 190.90
24	WP660532		Element, Surface (1250w - 6`` (3))   (Replaces: 7406P480-60)			Immediately	$ 41.00
