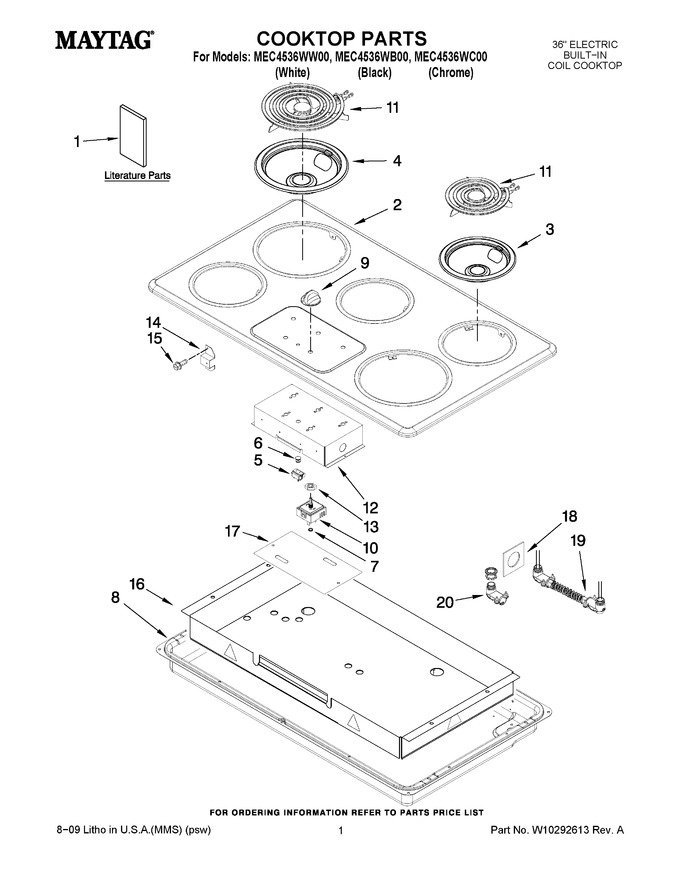

01 - Cooktop Parts


02 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10274252		Installation Instructions		Appelez-nous	-
1	W10274251		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10278689		Wiring Diagram		Appelez-nous	-
2	W10281394		Cooktop (chrome)		Appelez-nous	-
2	W10281391		Cooktop (white)		Appelez-nous	-
2	WPW10281388		Cooktop (black)   (Replaces: W10281388)				$ 289.12
3	WPW10196406		Pan, Reflector 6``   (Replaces: 7725P053-60)			Immediately	$ 13.39
4	WPW10196405		Pan, Reflector 8``   (Replaces: 7725P054-60)			Immediately	$ 17.29
5	W10852510		Light, Indicator   (Replaces: 7407P102-60)				$ 123.80
6	W11690131		Lens, Indicator   (Replaces: 7730P012-60)				$ 7.85
7	8008P014-60		Grommet		Appelez-nous	-
8	4011F235-80		Box, Burner		Appelez-nous	-
9	W10270282		Knob, Control (5) (black/chrome)				$ 21.26
9	W10270283		Knob, Control (5) (white)		Appelez-nous	-
10	74011241		Switch, Infinite   (Replaces: 7450P014-60)				$ 162.48
11	WP3191454		Element, Surface (lr/rf)   (Replaces: 7406P478-60)				$ 190.90
11	WP660532		Element, Surface (lf/rr/cr)   (Replaces: 7406P480-60)			Immediately	$ 50.11
12	4001F100-51		Housing, Switch		Appelez-nous	-
13	7103P021-60		Switch, Nut		Appelez-nous	-
14	3801F183-45		Bracket, Top		Appelez-nous	-
15	WP4159193		Screw   (Replaces: 7101P336-60)				$ 5.07
16	4001F146-51		Unit, Housing		Appelez-nous	-
17	4005F086-51		Cover, Housing		Appelez-nous	-
18	3801F072-45		Bracket, Conduit		Appelez-nous	-
19	5700P384-60		Conduit, Cable		Appelez-nous	-
20	7417P005-60		Connector		Appelez-nous	-
