SELECT A DIAGRAM

01 - Cabinet Parts

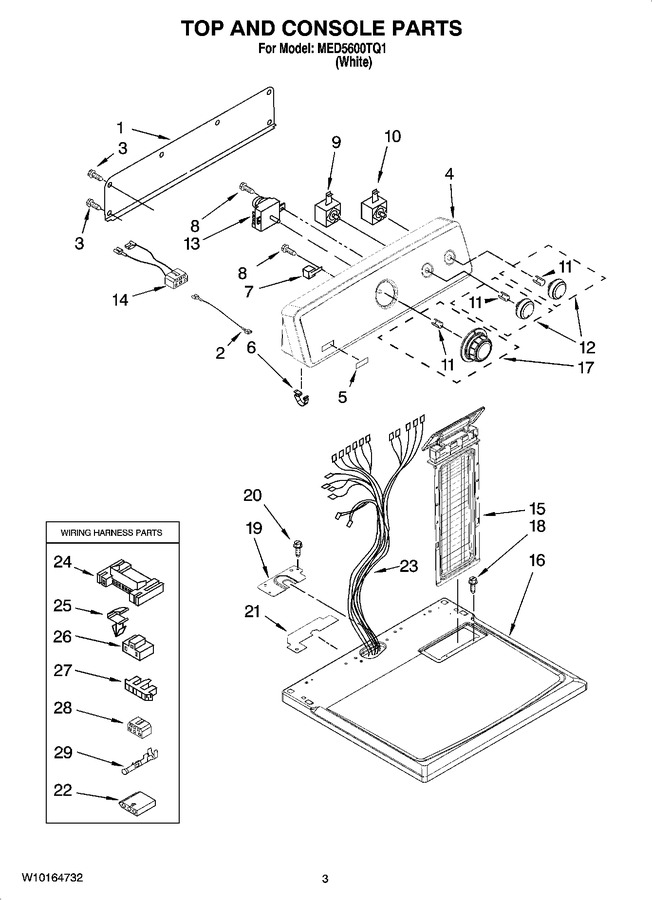

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10112577		Panel, Rear Console		Appelez-nous	-
2	W10113080		Wire, Jumper (tan)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	W10086704		Console & Shell Assembly (includes Items 5 & 6)		Appelez-nous	-
5	W10203949		Badge Assembly   (Replaces: W10112569)				$ 68.61
6	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
8	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
10	WPW10117655		Switch, Push-to-start   (Replaces: W10117655)			Immediately	$ 85.60
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	WPW10110029		Knob, Control (2)   (Replaces: W10110029)				$ 52.77
13	WP3979617		Timer, 60 Hz.   (Replaces: 3979617)			Immediately	$ 367.42
14	W10110861		Wire, Jumper (temperature)		Appelez-nous	-
15	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 52.03
16	W10112597		Top		Appelez-nous	-
17	W10110030		Knob Assembly, Timer				$ 26.39
18	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
19	W10112578		Bracket-harness		Appelez-nous	-
20	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 79.72
21	W10112603		Seal-harness		Appelez-nous	-
22	3936144		Connector				$ 20.21
23	W10110991		Harness, Wiring		Appelez-nous	-
24	3395683		Connector, Motor			Immediately	$ 51.86
25	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
26	3401144		Connector (pts) Relay				$ 12.20
27	3397269		Connector-timer				$ 25.55
28	3347243		Connector 6-circuit		Appelez-nous	-
29	WP94614		Terminal   (Replaces: 94614)				$ 7.67

    View Diagram in Separate Window       Print Part List
