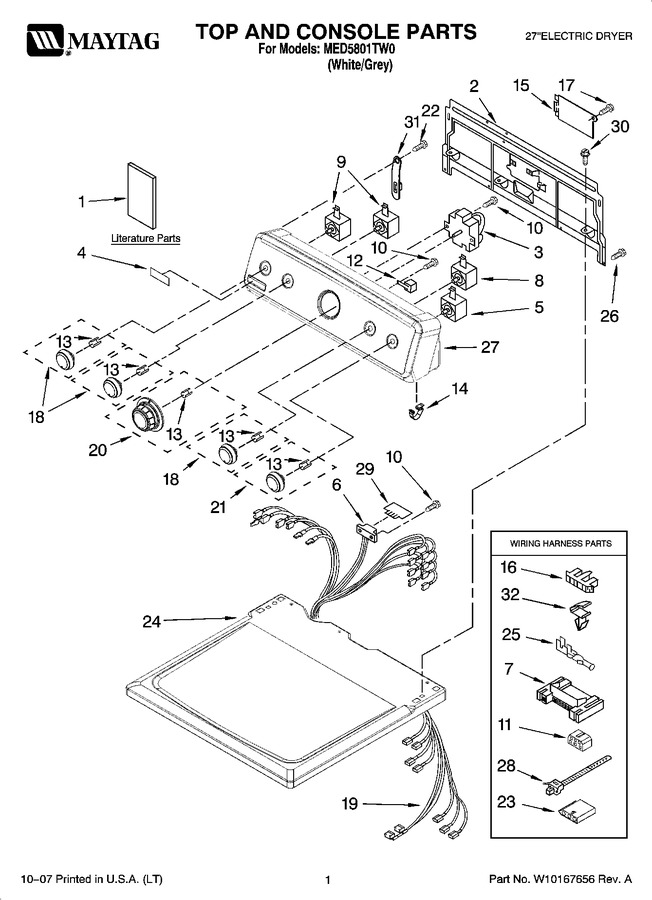

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10151000 | Wiring Diagram |
|
- | |||||
| 1 | W10155107 | Guide, Use & Care |
|
- | |||||
| 1 | W10155113 | Dryer Cycle Sheet |
|
- | |||||
| 2 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 261.42 | |||||
| 3 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 277.09 | ||||
| 4 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 72.04 | |||||
| 5 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 88.09 | ||||
| 6 | 3391885 | Connector, Edge |
|
$ 90.72 | |||||
| 7 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 8 | WP8578354 | Switch, Rotary Temperature (Replaces: 8578354) |
|
Immediately | $ 173.03 | ||||
| 9 | WP3405156 | Switch, Rotary (Replaces: 3405156) |
|
$ 152.79 | |||||
| 10 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 11 | 3347243 | Connector 6-circuit |
|
- | |||||
| 12 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 13 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 14 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 134.77 | |||||
| 16 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 17 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 18 | WPW10110035 | Knob, Control (3) (Replaces: W10110035) |
|
$ 60.98 | |||||
| 19 | W10150995 | Harness, Electric |
|
- | |||||
| 20 | WPW10110036 | Knob, Timer Assembly (Replaces: W10110036) |
|
$ 65.46 | |||||
| 21 | W10110037 | Knob Assembly Push-to-start |
|
$ 35.27 | |||||
| 22 | WP90767 | Screw, Ground (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 23 | 3936144 | Connector |
|
$ 21.22 | |||||
| 24 | 8274462 | Top |
|
- | |||||
| 25 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 26 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 27 | W10112601 | Console & Control Panel Assembly (includes Items. 4 & 14) |
|
- | |||||
| 28 | WP3391018 | Tie, Cable (push-mount) (Replaces: 3391018) |
|
$ 33.43 | |||||
| 29 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 329.93 | ||||
| 30 | WP488729 | Screw, 8-18 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 31 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 8.17 | |||||
| 32 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 |
