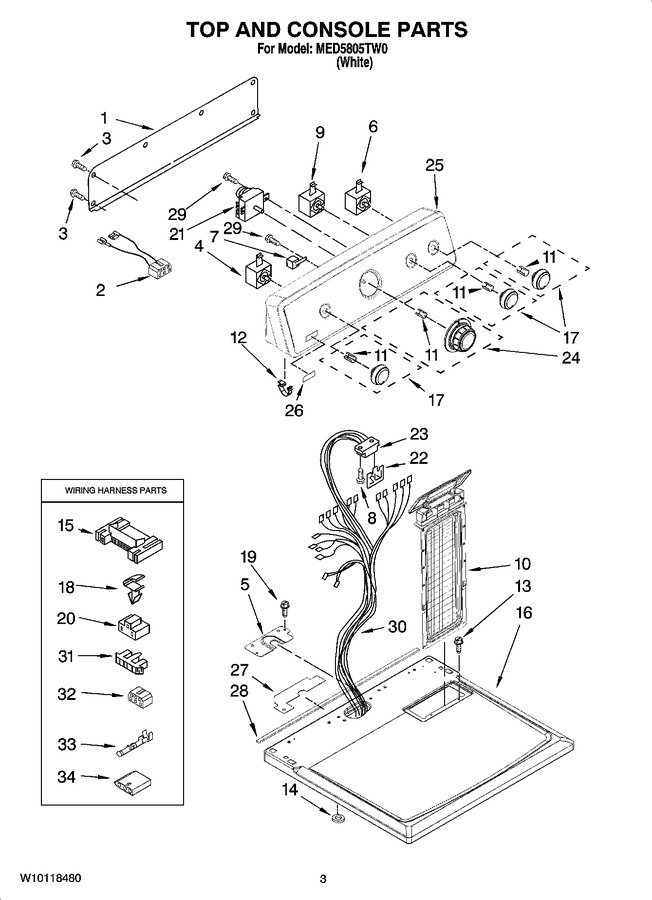

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10112576 | Panel, Rear Console |
|
$ 61.99 | |||||
| 2 | W10113080 | Wire, Jumper (buzzer On/off) |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WP3405156 | Switch Rotary (twist Mount) (Replaces: 3405156) |
|
$ 152.79 | |||||
| 5 | 8565981 | Bracket, Harness |
|
- | |||||
| 6 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 9 | WP8578352 | Switch, Temperature (Replaces: 8578352) |
|
$ 237.85 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 237446 | Washer (top/chute) |
|
- | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | W10112599 | Top |
|
$ 148.65 | |||||
| 17 | WPW10110035 | Knob, Control (3) (Replaces: W10110035) |
|
$ 60.98 | |||||
| 18 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | WP33001882 | Screw, 8-18 X 3/4 (Replaces: 337686) |
|
$ 83.71 | |||||
| 20 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 21 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 277.09 | ||||
| 22 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 329.93 | ||||
| 23 | 3391885 | Connector, Edge |
|
$ 90.72 | |||||
| 24 | WPW10110036 | Timer Knob Assembly (Replaces: W10110036) |
|
$ 65.46 | |||||
| 25 | W10086712 | Console & Shell Assembly (includes Items 12 & 26) |
|
- | |||||
| 26 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 72.04 | |||||
| 27 | W10118608 | Seal-harness |
|
- | |||||
| 28 | W10112267 | Seal, Foam Console Bracket |
|
$ 97.53 | |||||
| 29 | WP90767 | Screw, Mounting (8-18 X 5/16) (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 30 | W10113070 | Harness, Wiring |
|
- | |||||
| 31 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 32 | 3347243 | Connector 6-circuit |
|
- | |||||
| 33 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 34 | 3936144 | Connector |
|
$ 21.22 |
