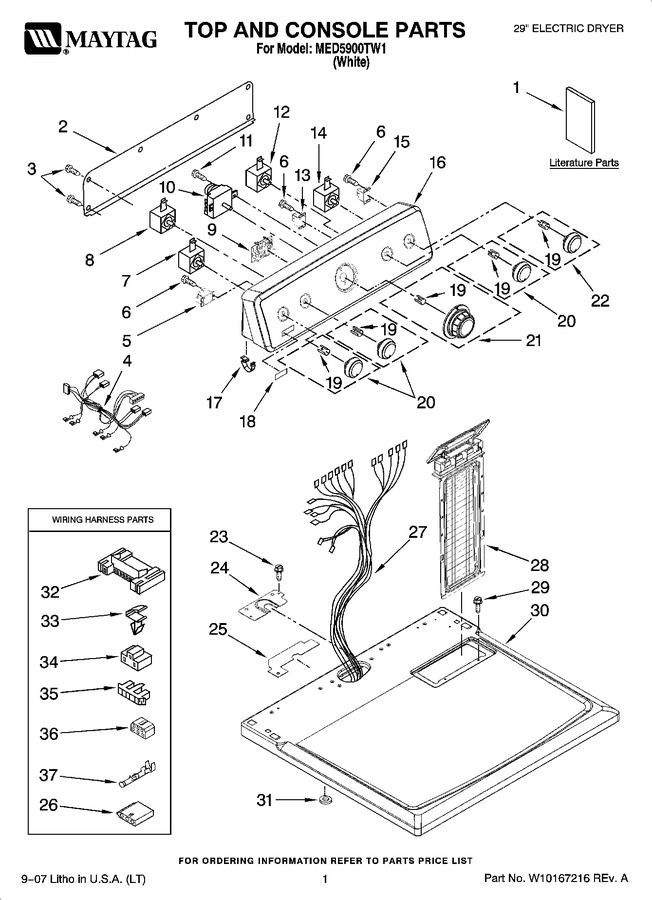

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10112987 | Tech Sheet |
|
- | |||||
| 1 | W10088770 | Use & Care Guide |
|
- | |||||
| 1 | W10089172 | Dryer, Cycle Sheet |
|
- | |||||
| 2 | W10112577 | Panel, Console Rear |
|
- | |||||
| 3 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10108400 | Harness, Wiring Center Control |
|
- | |||||
| 5 | WP3405281 | Relay, Motor (Replaces: 3405281) |
|
Immediately | $ 54.85 | ||||
| 6 | WP3388228 | Screw,8-18 X 11/32 (Replaces: 3388228) |
|
$ 7.30 | |||||
| 7 | 3405151 | Switch, End Of Cycle |
|
$ 193.40 | |||||
| 8 | 3405152 | Switch, Wrinkle Guard |
|
$ 131.07 | |||||
| 9 | W10116567 | Control Assembly |
|
$ 301.42 | |||||
| 10 | WP8299771 | Timer, 60 Hz. (Replaces: 8299771) |
|
$ 347.87 | |||||
| 11 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 12 | 8299970 | Switch, Temperature |
|
$ 193.95 | |||||
| 13 | WP8566493 | Relay, Heater (Replaces: 8566493) |
|
$ 94.87 | |||||
| 14 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 15 | WP3405281 | Relay, Heater (Replaces: 3405281) |
|
Immediately | $ 54.85 | ||||
| 16 | 8579712 | Console & Shell Assembly (includes Items 17 & 18) |
|
- | |||||
| 17 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 18 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 72.04 | |||||
| 19 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 20 | WPW10110035 | Knob, Control (3) (Replaces: W10110035) |
|
$ 60.98 | |||||
| 21 | WPW10110036 | Knob, Timer (Replaces: W10110036) |
|
$ 65.46 | |||||
| 22 | W10110037 | Knob, Push-to-start |
|
$ 35.27 | |||||
| 23 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 83.71 | |||||
| 24 | W10112578 | Bracket-harness |
|
- | |||||
| 25 | W10112603 | Seal-harness |
|
- | |||||
| 26 | 3936144 | Connector |
|
$ 21.22 | |||||
| 27 | W10110997 | Harness, Wiring |
|
- | |||||
| 28 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 54.63 | ||||
| 29 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 30 | W10112599 | Top |
|
$ 148.65 | |||||
| 31 | 237446 | Washer (top/chute) |
|
- | |||||
| 32 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 33 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 34 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 35 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 36 | 3347243 | Connector 6-circuit |
|
- | |||||
| 37 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 |
