SELECT A DIAGRAM
01 - Cabinet Parts
02 - Top And Console Parts

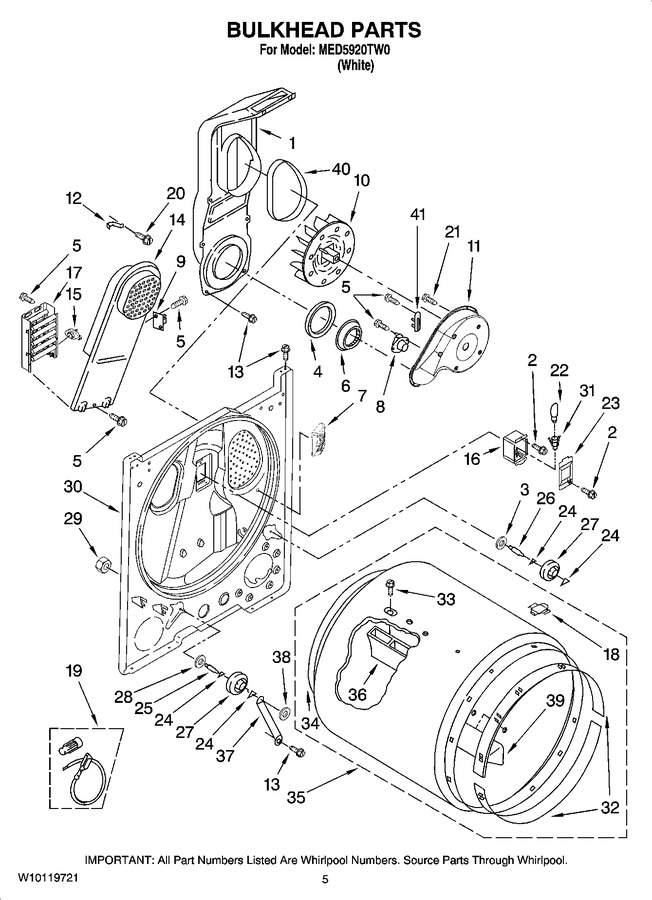

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 175.01 | |||||
| 2 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 3 | WP3388703 | Washer, Support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 | |||||
| 7 | W10816105 | Pad, Sensor (Replaces: 3976479) |
|
$ 152.01 | |||||
| 8 | WP8577274 | Thermister (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 9 | 279816 | Thermal Cut-off (includes Illus. 15) (Replaces: 3977393) |
|
Immediately | $ 60.71 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | 8577231 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | WP8541818 | Box, Heater (Replaces: 8541818) |
|
$ 234.81 | |||||
| 15 | WP3404153 | Thermostat, 140 F (Replaces: 3404153) |
|
$ 132.49 | |||||
| 16 | 3977373 | Bracket, Drum Light |
|
$ 105.79 | |||||
| 17 | WP3401338 | Element, Heater (Replaces: 3401338) |
|
$ 326.24 | |||||
| 18 | 8066086 | Drum Hole Plug |
|
$ 10.75 | |||||
| 19 | 279457 | Wire Kit, Terminal (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 20 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.82 | |||||
| 21 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 22 | WP22002263 | Bulb (Replaces: 3406126) |
|
Immediately | $ 13.66 | ||||
| 23 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 24 | WPW10512946 | Ring Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 25 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 26 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 27 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 28 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 29 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 30 | W10828431 | Bulkhead (Replaces: 3403413) |
|
$ 359.30 | |||||
| 31 | W11700522 | Socket Assembly (Replaces: 3403634) |
|
$ 73.15 | |||||
| 32 | 279441 | Ring, Bearing (2) (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 33 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 8.00 | ||||
| 34 | W10612022 | Seal, Rear Drum (Replaces: 3406130) |
|
Immediately | $ 57.15 | ||||
| 35 | W10899578 | Drum, Assembly (Replaces: 695587) |
|
$ 357.65 | |||||
| 36 | WP692490 | Baffle, Drum (2) (Replaces: 692490) |
|
$ 159.27 | |||||
| 37 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 20.94 | |||||
| 38 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 39 | WP3403636 | Baffle-drum (1) (Replaces: 3403636) |
|
$ 138.66 | |||||
| 40 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 41 | WP3390719 | Thermal-fuse (91c) (Replaces: 3390719) |
|
Immediately | $ 31.57 | ||||
| 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 53.85 | |||||
| 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 12.30 | |||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white (uncut)) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 38.21 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 | |||||
| W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 | ||||||
| 3406839 | Dry Rack |
|
Immediately | $ 65.68 | |||||
| 4392901 | Paint, Pressurized Spray (12 Oz) (biscuit) |
|
- |
