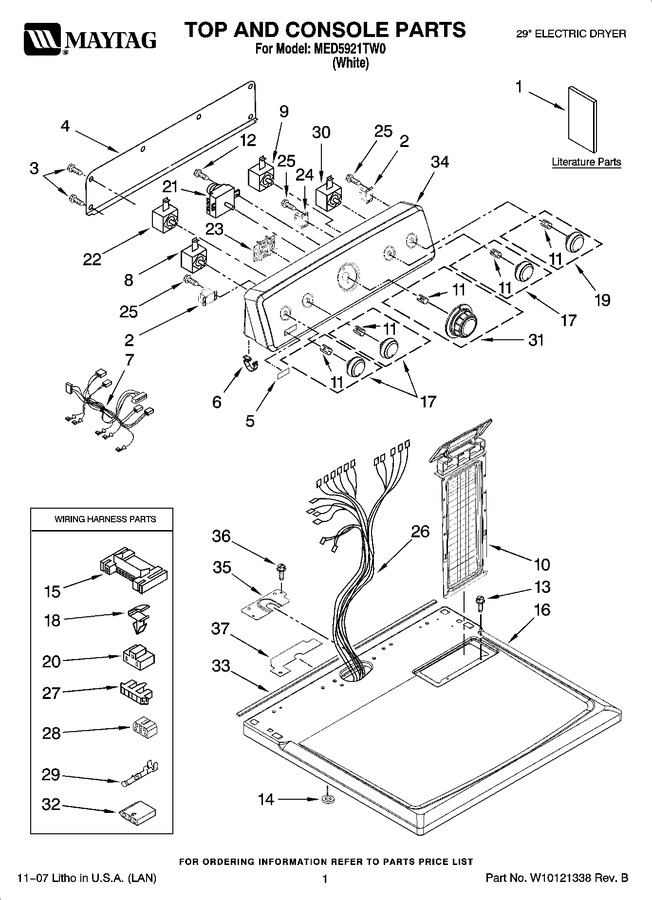

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10151548 | Sheet, Cycle Feature (english) |
|
- | |||||
| 1 | W10150608 | Use & Care Guide |
|
- | |||||
| 1 | W10151549 | Sheet, Cycle Feature (spanish) |
|
- | |||||
| 1 | W10112987 | Sheet, Tech |
|
- | |||||
| 2 | WP3405281 | Power Relay (Replaces: 3405281) |
|
Immediately | $ 54.85 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10112576 | Panel, Rear Console |
|
$ 61.99 | |||||
| 5 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 72.04 | |||||
| 6 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | W10108400 | Harness, Center Control |
|
- | |||||
| 8 | 3405152 | Switch, Wrinkle Gaurd |
|
$ 131.07 | |||||
| 9 | 8299970 | Switch, Temperature |
|
$ 193.95 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 237446 | Washer (top/chute) |
|
- | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | W10112599 | Top |
|
$ 148.65 | |||||
| 17 | WPW10110035 | Knob, Control (3) (Replaces: W10110035) |
|
$ 60.98 | |||||
| 18 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | W10110037 | Knob, Push-to-start |
|
$ 35.27 | |||||
| 20 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 21 | WP8299771 | Timer, 60 Hz. (Replaces: 8299771) |
|
$ 347.87 | |||||
| 22 | 3405151 | Switch, End Of Cycle |
|
$ 193.40 | |||||
| 23 | W10116567 | Control Assembly |
|
$ 301.42 | |||||
| 24 | WP8566493 | Power Relay (motor) (Replaces: 8566493) |
|
$ 94.87 | |||||
| 25 | WP3388228 | Screw, 8-18 X 1/32 (Replaces: 3388228) |
|
$ 7.30 | |||||
| 26 | W10108380 | Harness, Wiring |
|
- | |||||
| 27 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 28 | 3347243 | Connector 6-circuit |
|
- | |||||
| 29 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 30 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 31 | WPW10110036 | Timer Knob Assembly (Replaces: W10110036) |
|
$ 65.46 | |||||
| 32 | 3936144 | Connector |
|
$ 21.22 | |||||
| 33 | W10112267 | Foam-seal Console Bracket |
|
$ 97.53 | |||||
| 34 | W10086720 | Panel, Control (includes Illus. 5) |
|
- | |||||
| 35 | 8565981 | Bracket, Wiring |
|
- | |||||
| 36 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 83.71 | |||||
| 37 | W10118608 | Seal-harness |
|
- |
